Pinpoint Test 8

PINPOINT TEST 8: AN INDIVIDUAL DEMAND LAMP IS INOPERATIVE

Normal Operation
Circuit (Y/G) provides voltage to each demand lamp when the battery saver relay is activated. The demand lamps are grounded through circuit (B/GY). The battery saver function of the smart junction box (SJB) deactivates the voltage to the demand lamps after time-out.

Possible Causes
- Wiring, terminals or connectors
- Lamp assembly

Diagnostic Procedure

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

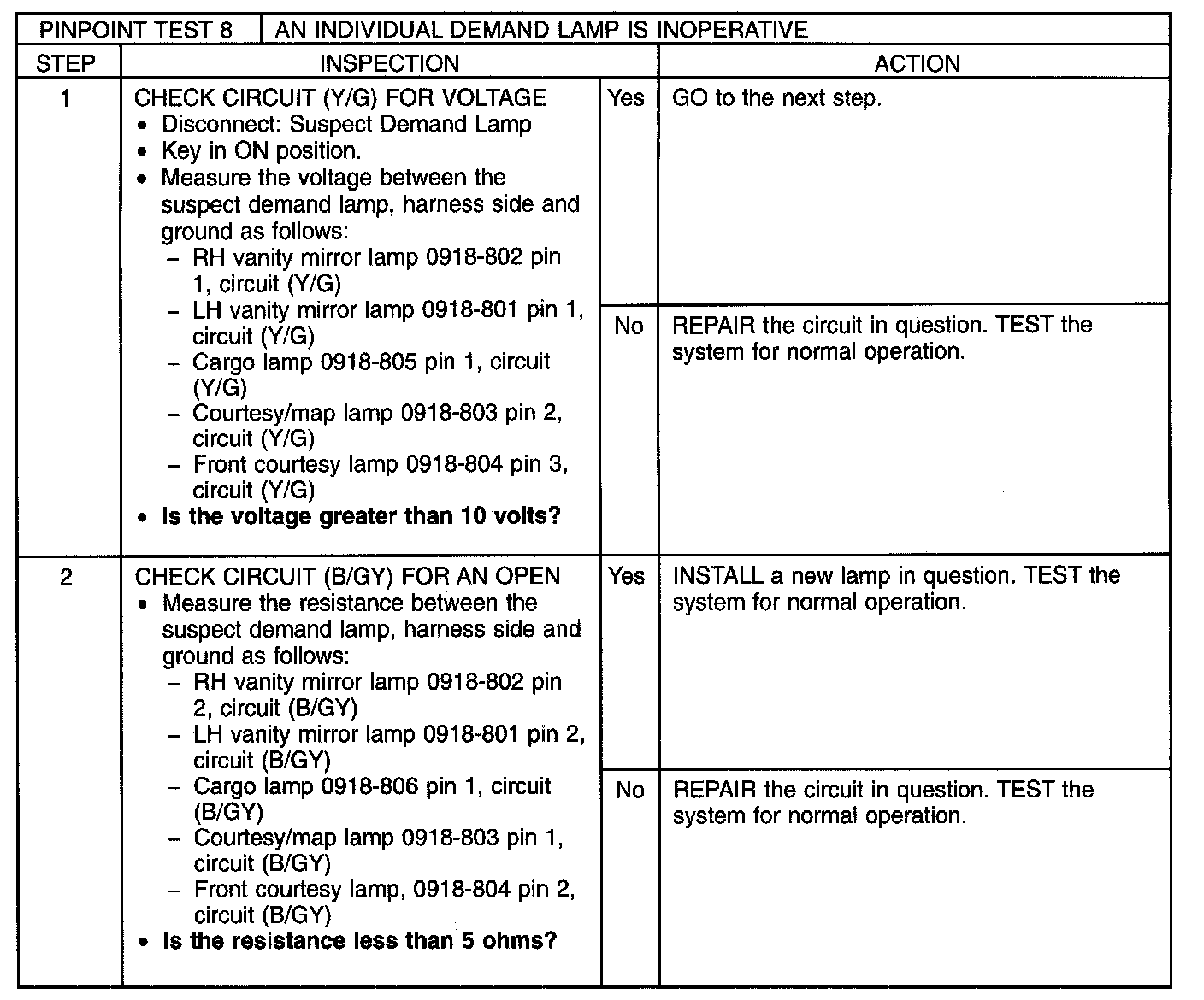

Step 1-Step 2:
