Pinpoint Test 9

PINPOINT TEST 9: THE BATTERY SAVER DOES NOT DEACTIVATE AFTER TIME-OUT

Normal Operation
The smart junction box (SJB) provides a battery saver function. The battery saver function provides automatic shutoff of the interior lamps (demand lamps and glove compartment lamp) after a predetermined time has elapsed in order to save battery power.

Possible Causes
- Wiring, terminals or connectors
- SJB

Diagnostic Procedure

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

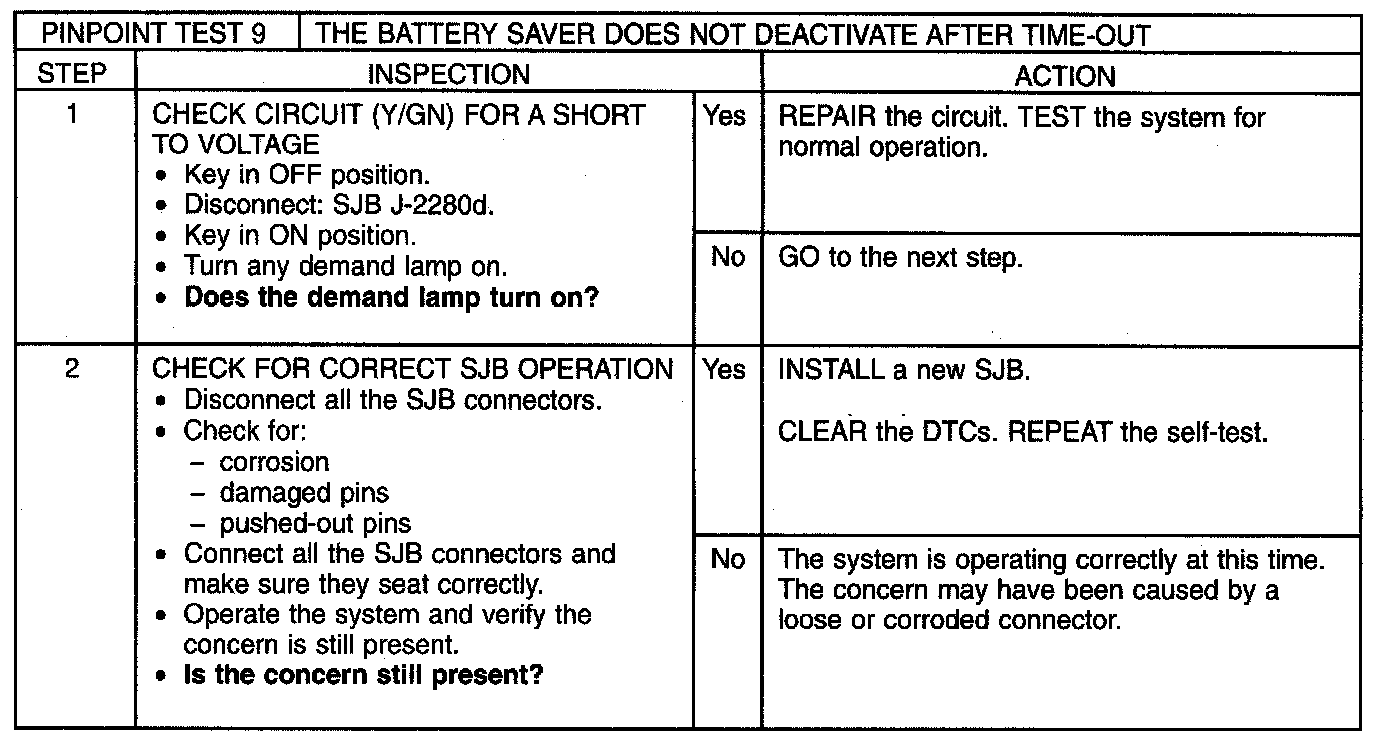

Step 1-Step 2:
