Symptom Related Diagnostic Procedures

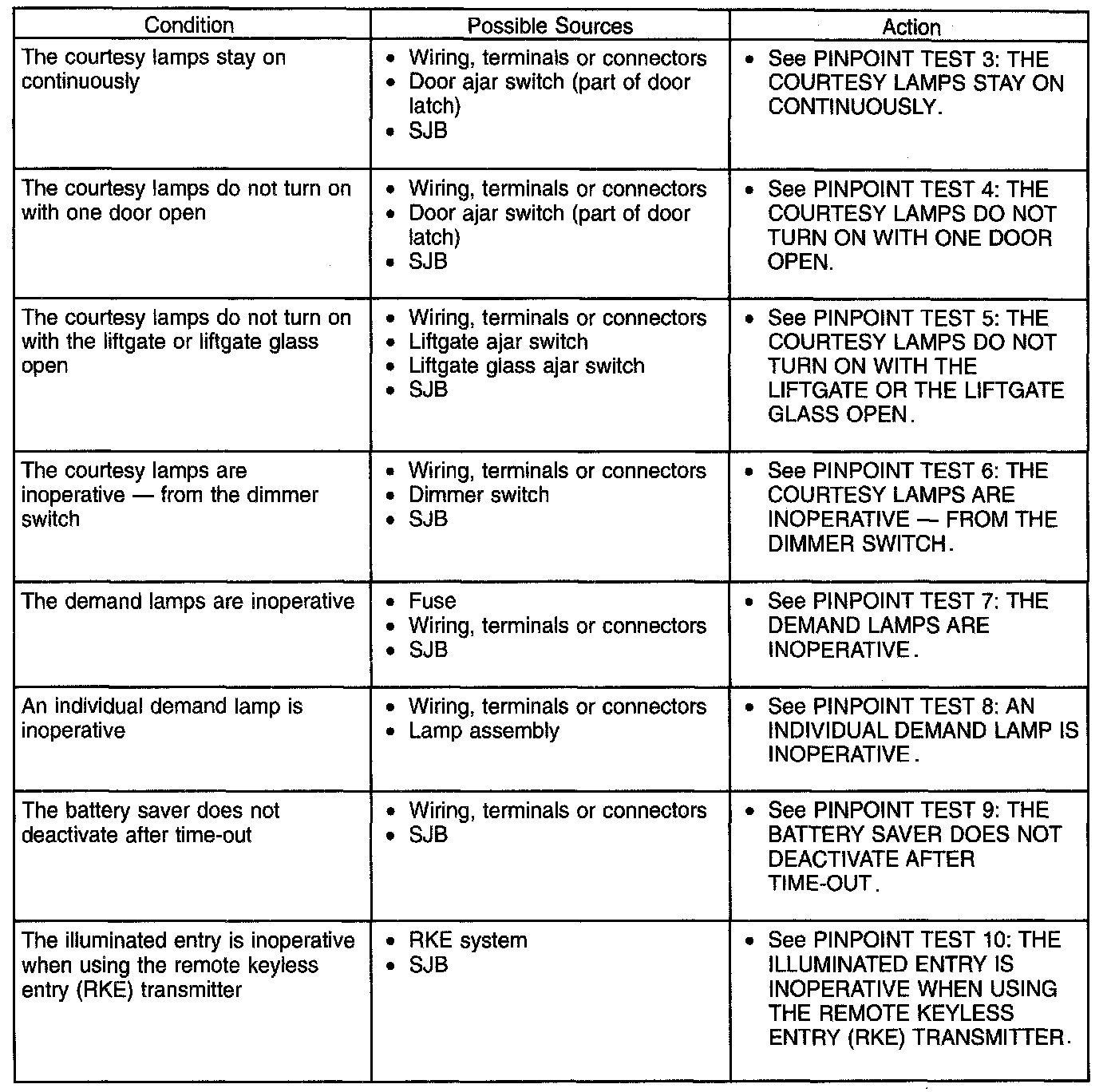

Symptom Troubleshooting Chart-Interior Lighting (Part 1):

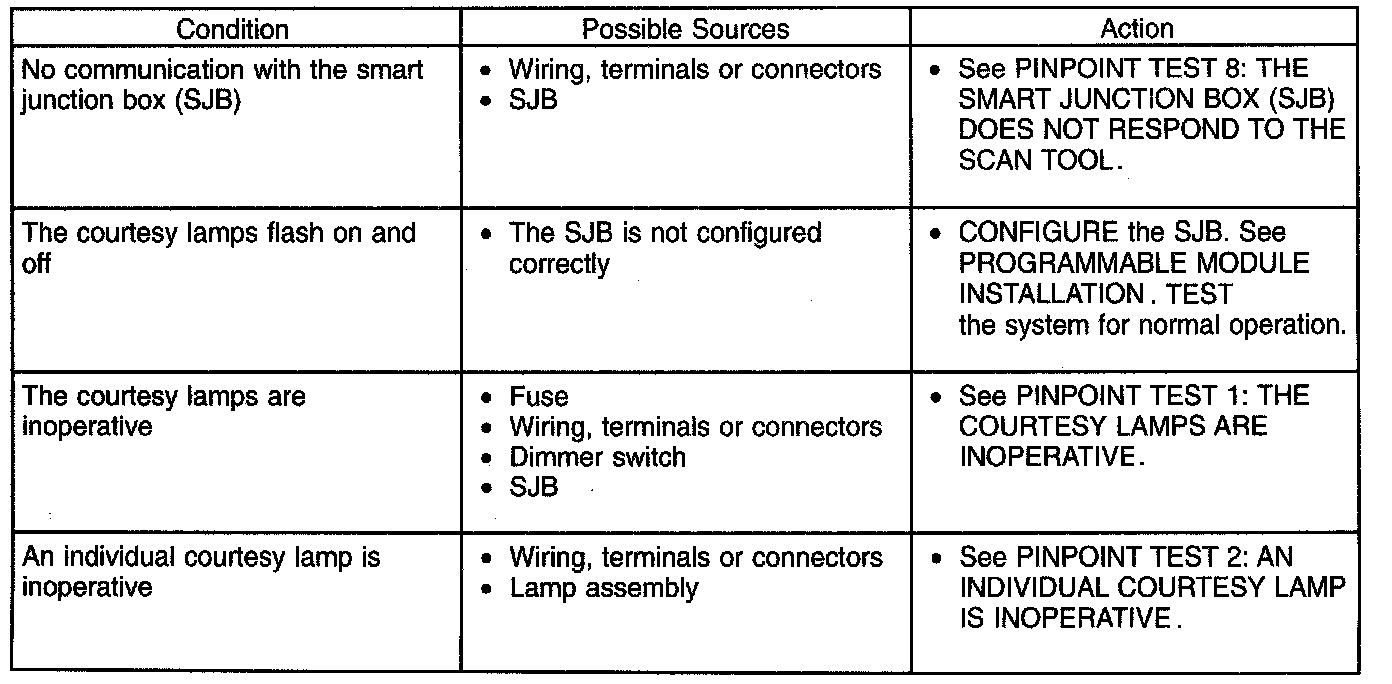

Symptom Troubleshooting Chart-Interior Lighting (Part 2):
