Pinpoint Test 3

PINPOINT TEST 3: ONE TURN SIGNAL/HAZARD LAMP IS INOPERATIVE/ALWAYS ON

Normal Operation
When the smart junction box (SJB) detects the multi-function switch in the LH TURN position, the SJB provides voltage through circuit (L/G) to the LH front turn lamp. When the SJB detects the multi-function switch in the RH TURN position, the SJB provides voltage through circuit (Y/V) to the RH front turn lamp. Circuit (B/G) provides ground. The rear turn lamps are controlled utilizing the rear stoplamp circuitry.
- DTC B2A27 (Right Front Turn Lamp Circuit Open) - is an on-demand DTC that sets when the SJB detects an open or short to voltage on the RH front turn lamp voltage supply circuit.
- DTC B2A28 (Right Front Turn Lamp Circuit Short to Ground) - is a continuous and on-demand DTC that sets when the SJB detects a short to ground on the RH front turn lamp voltage supply circuit.
- DTC B2A29 (Left Front Turn Lamp Circuit Open) - is an on-demand DTC that sets when the SJB detects an open or short to voltage on the LH front turn lamp voltage supply circuit.
- DTC B2A2A (Left Front Turn Lamp Circuit Short to Ground) - is a continuous and on-demand DTC that sets when the SJB detects a short to ground on the LH front turn lamp voltage supply circuit.

Possible Causes
- Wiring, terminals or connectors
- Bulb holder
- SJB

Diagnostic Procedure

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTE: The battery ground cable must be disconnected for accurate test results when checking ground circuits for continuity to ground.

Step 1-Step 5:

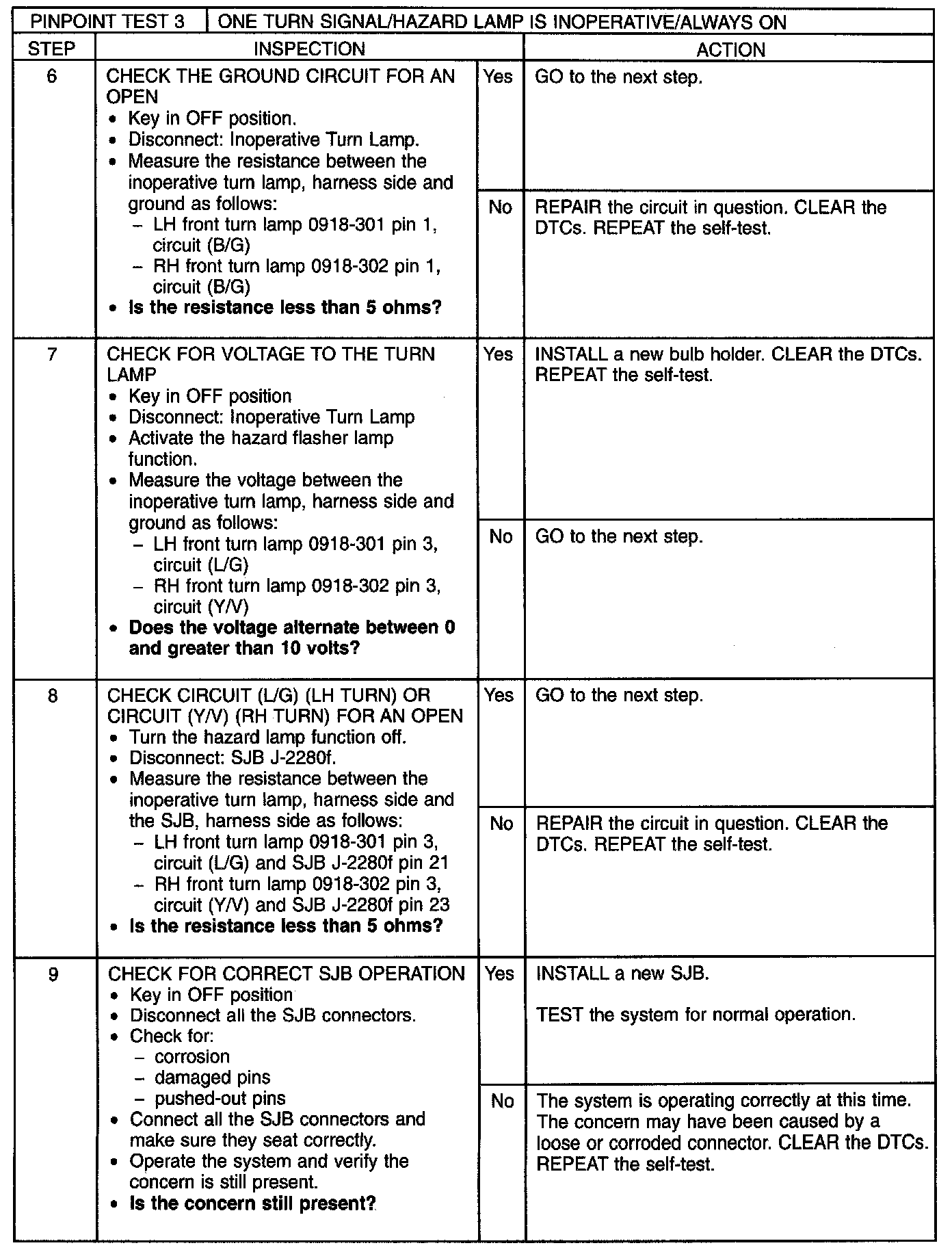

Step 6-Step 9:
