Home >> Mazda >> 2008 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Locations >> Component Locations >> Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

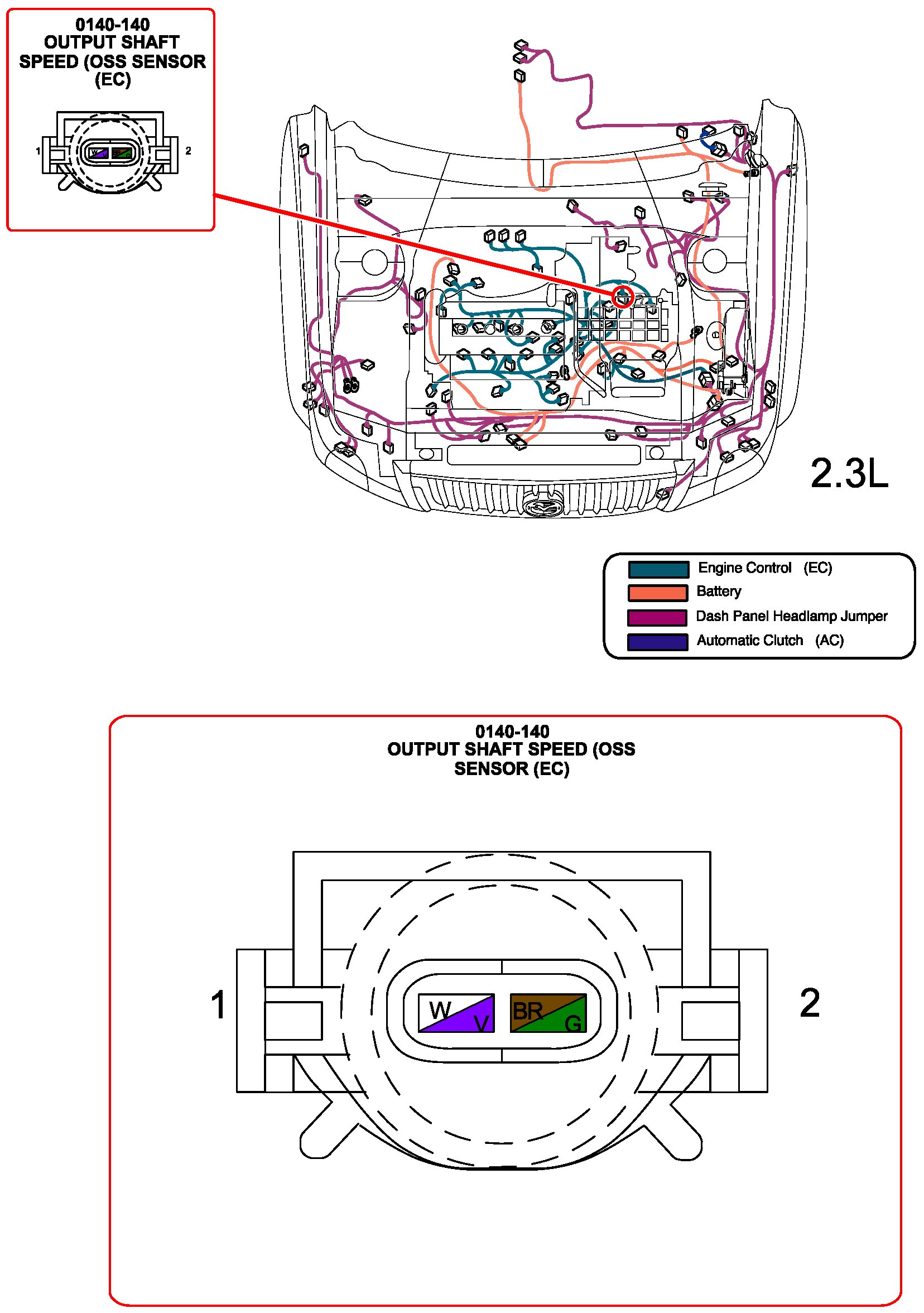

Output Shaft Speed (OSS) Sensor:

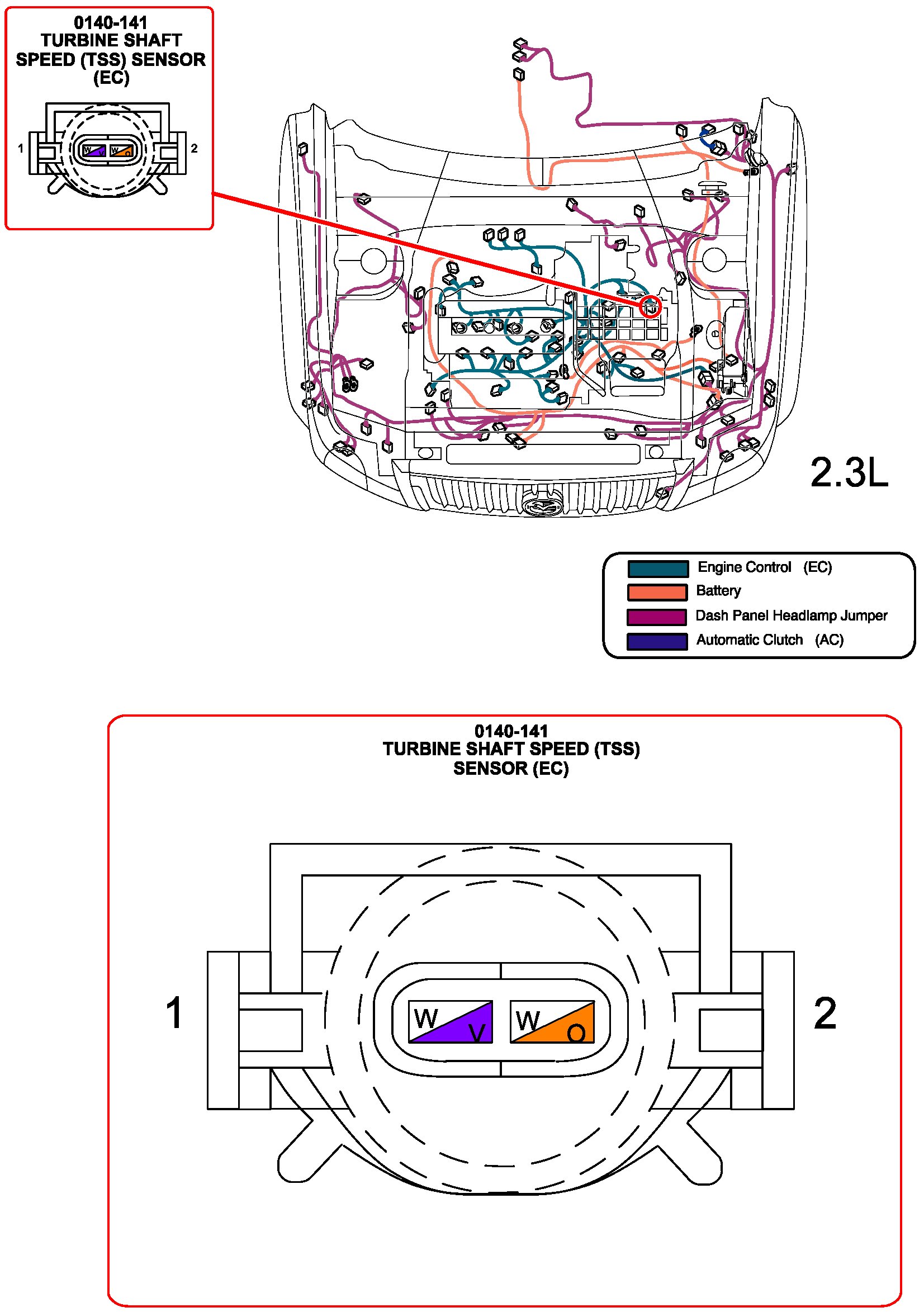

Turbine Shaft Speed (TSS) Sensor:
