Coolant Line/Hose: Service and Repair

BYPASS TUBE - 2.3L REMOVAL/INSTALLATION





1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the cooling system.
3. Remove the intake manifold.

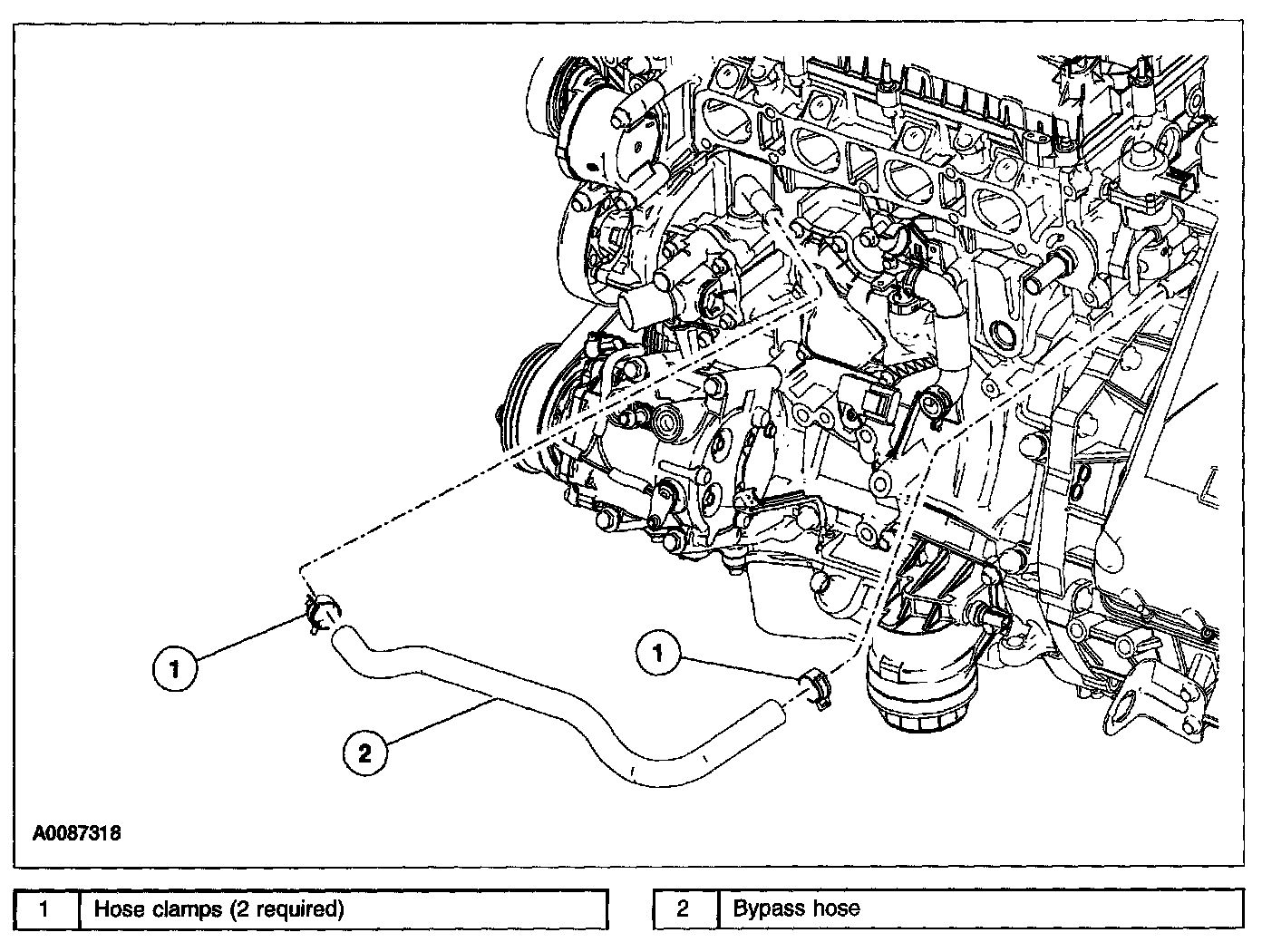

4. Disconnect and remove the coolant bypass tube.
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
