Pinpoint Test 2: No Power In ACC

PINPOINT TEST 2: NO POWER IN ACC

Normal Operation
When the ignition switch is placed in ACC, fused ignition voltage is sent to smart junction box (SJB) J2280a pin 3, along circuit (V/G).

Possible Causes
- Wiring, terminals or connectors
- Ignition switch
- SJB

Diagnostic Procedures

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multi-meter probes.

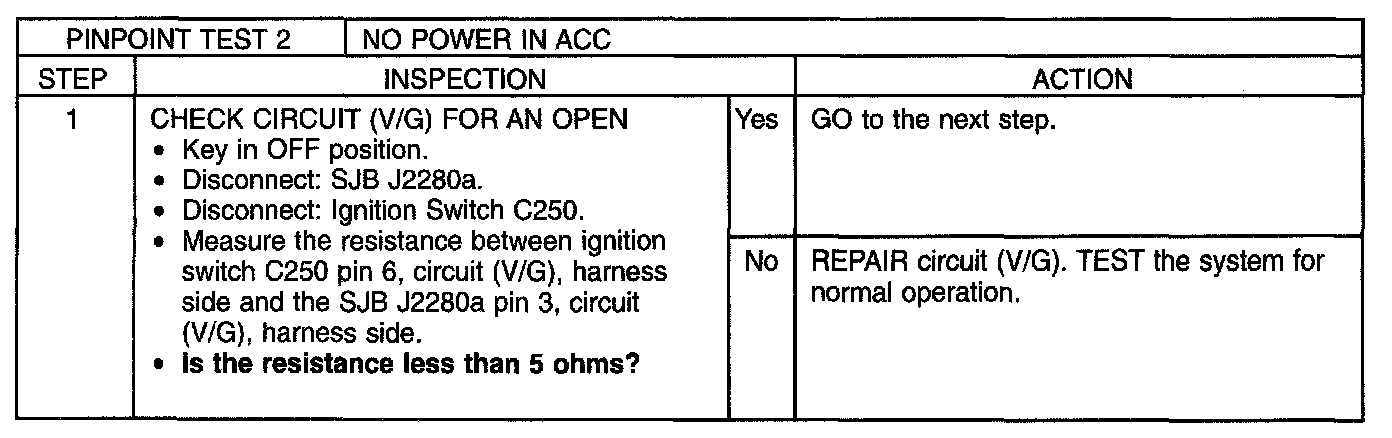

Step 1:

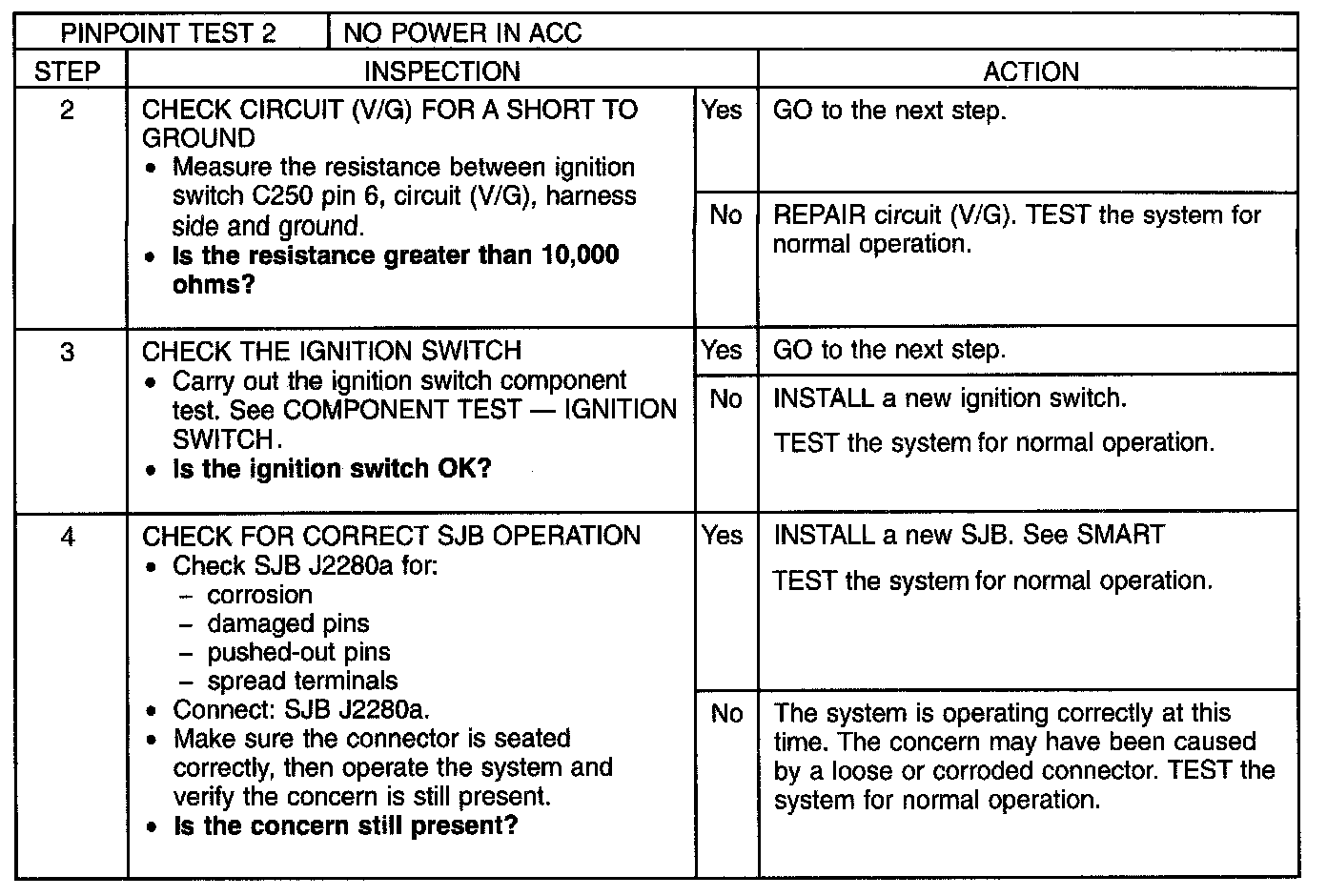

Step 2-Step 4:
