Pinpoint Test 4: No Power In Start

PINPOINT TEST 4: NO POWER IN START

Normal Operation
When the ignition switch is placed in START, fused ignition voltage is sent to:
- Fuse 35 (10 A) in the battery junction box (BJB) along circuit (W/O).
- Smart junction box (SJB) J2280e pin 1, along circuit (W/O).
- SJB J2208b pin 45, along circuit (W/O).
- PCM 0140-175b pin 21 along circuit (L/W).
- SJB J2280b pin 32, along circuit (L/W).

Possible Causes
- Wiring, terminals or connectors
- Ignition switch
- SJB

Diagnostic Procedure

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multi-meter probes.

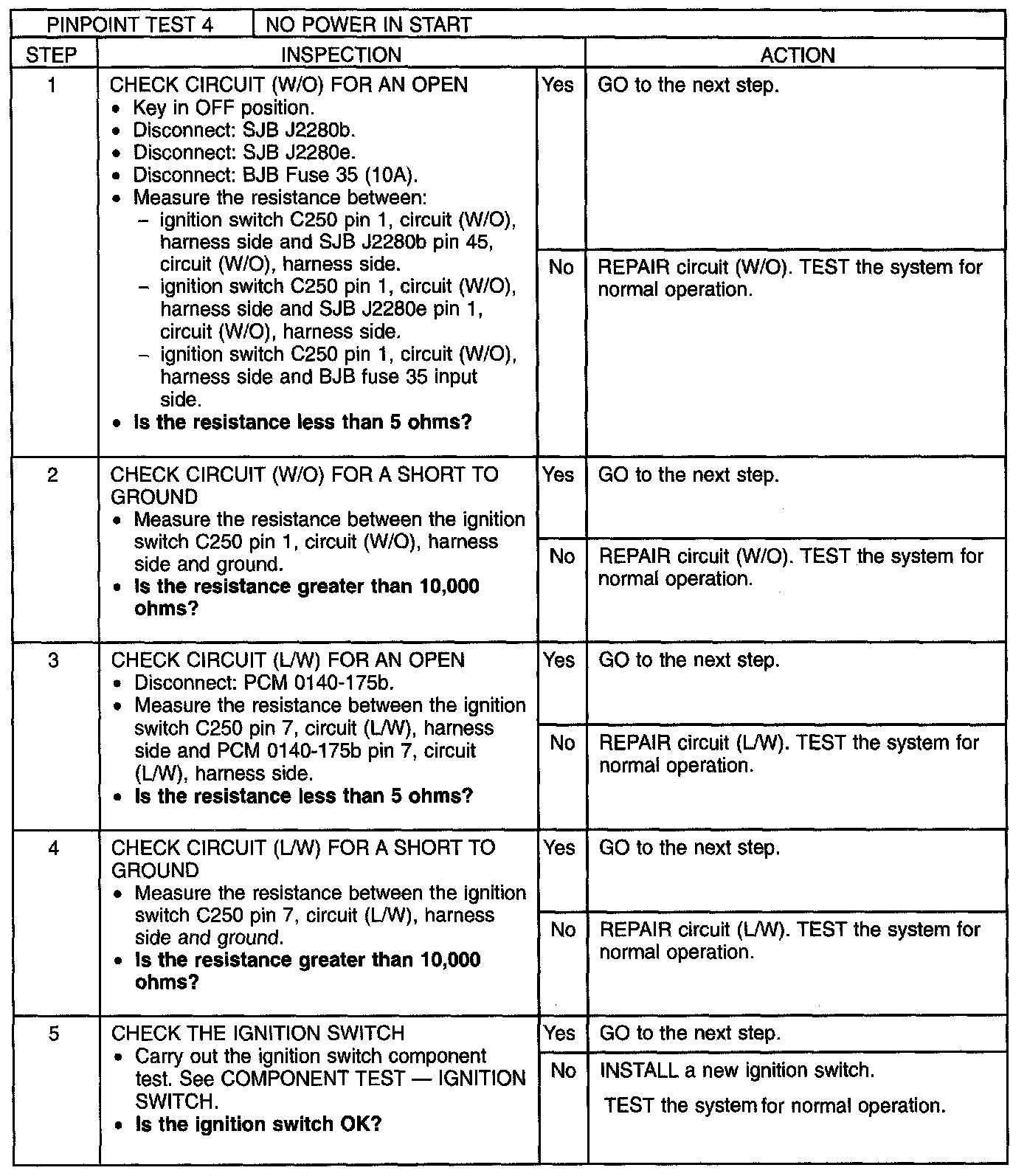

Step 1-Step 5:

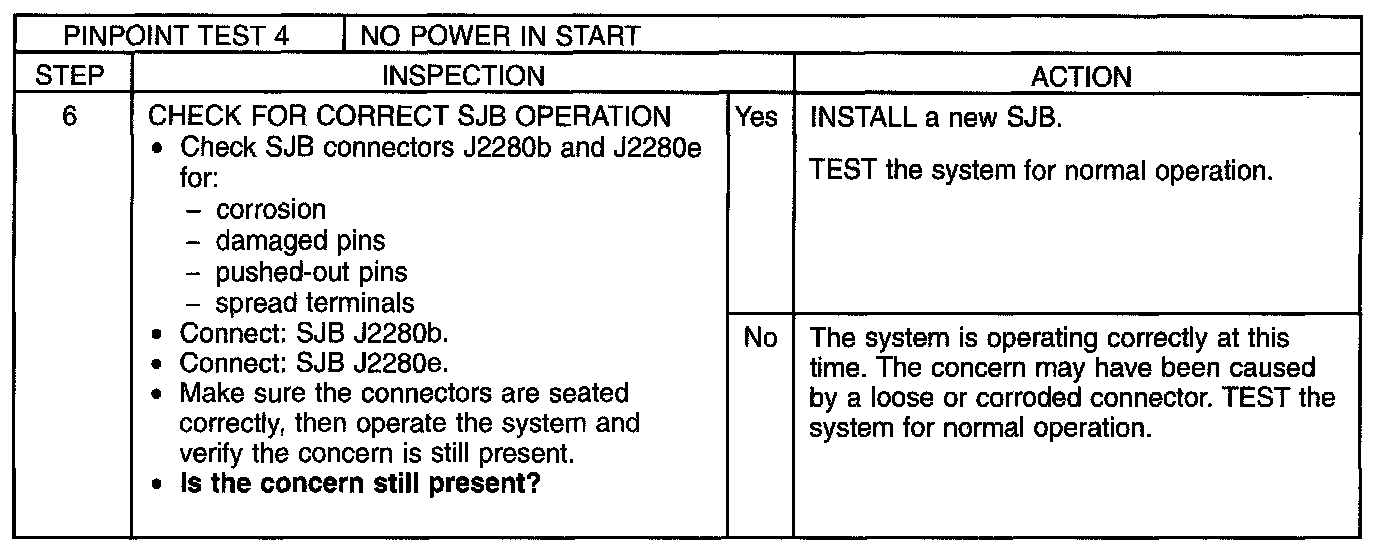

Step 6:
