Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2008
>>
Tribute 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
>>

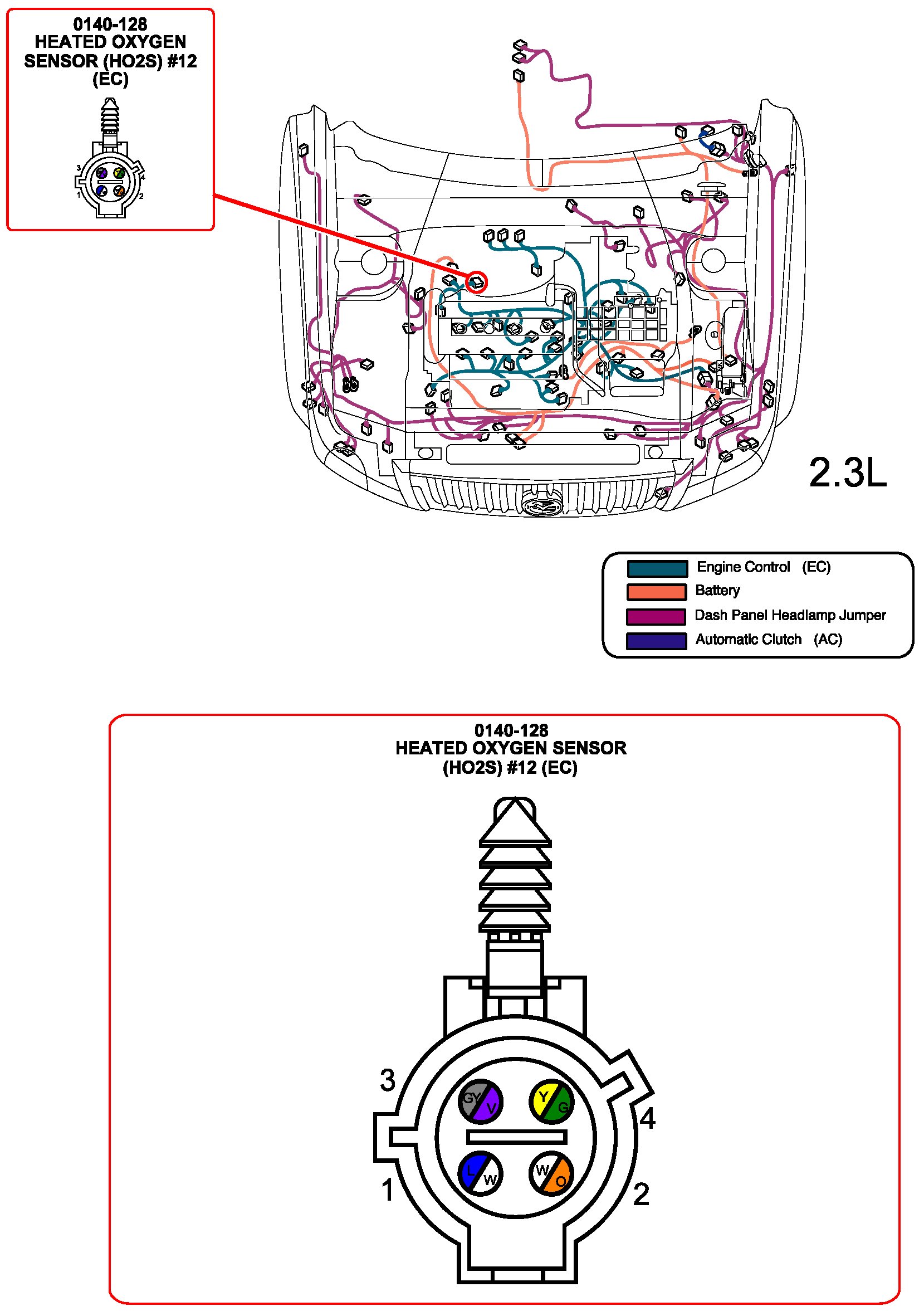

Connector Locations
Connector Locations
Heated Oxygen Sensor (HO2S) # 12:
Heated Oxygen Sensor (HO2S) # 21:
