DTCs Reading Procedure and Pending Trouble Code Access Procedure

On-Board Diagnostic Test

DTCs Reading Procedure
1. Carry out the necessary vehicle preparation and visual inspection.

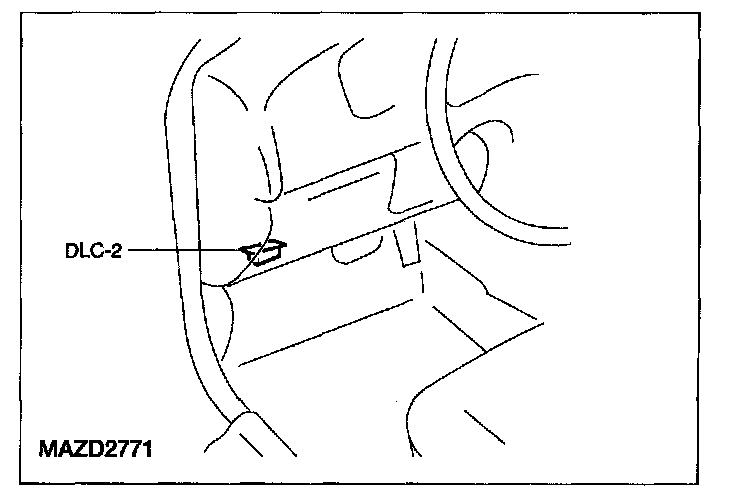

2. Connect the IDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Retrieve the DTCs by IDS or equivalent tester.

Pending Trouble Code Access Procedure
1. Carry out the necessary vehicle preparation and visual inspection. Hook-up the IDS or equivalent tester to the vehicle.

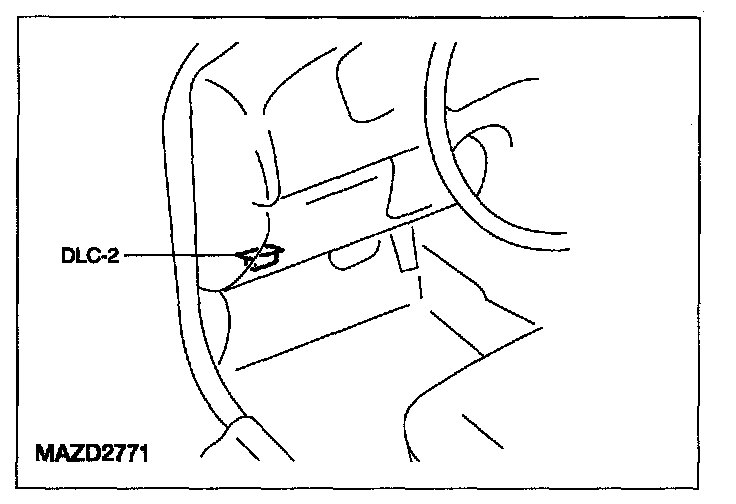

2. Connect the IDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Retrieve pending trouble codes by IDS or equivalent tester.
