Home >> Mazda >> 2008 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 7: Engine Poor Driveability

No. 7: Engine Poor Driveability

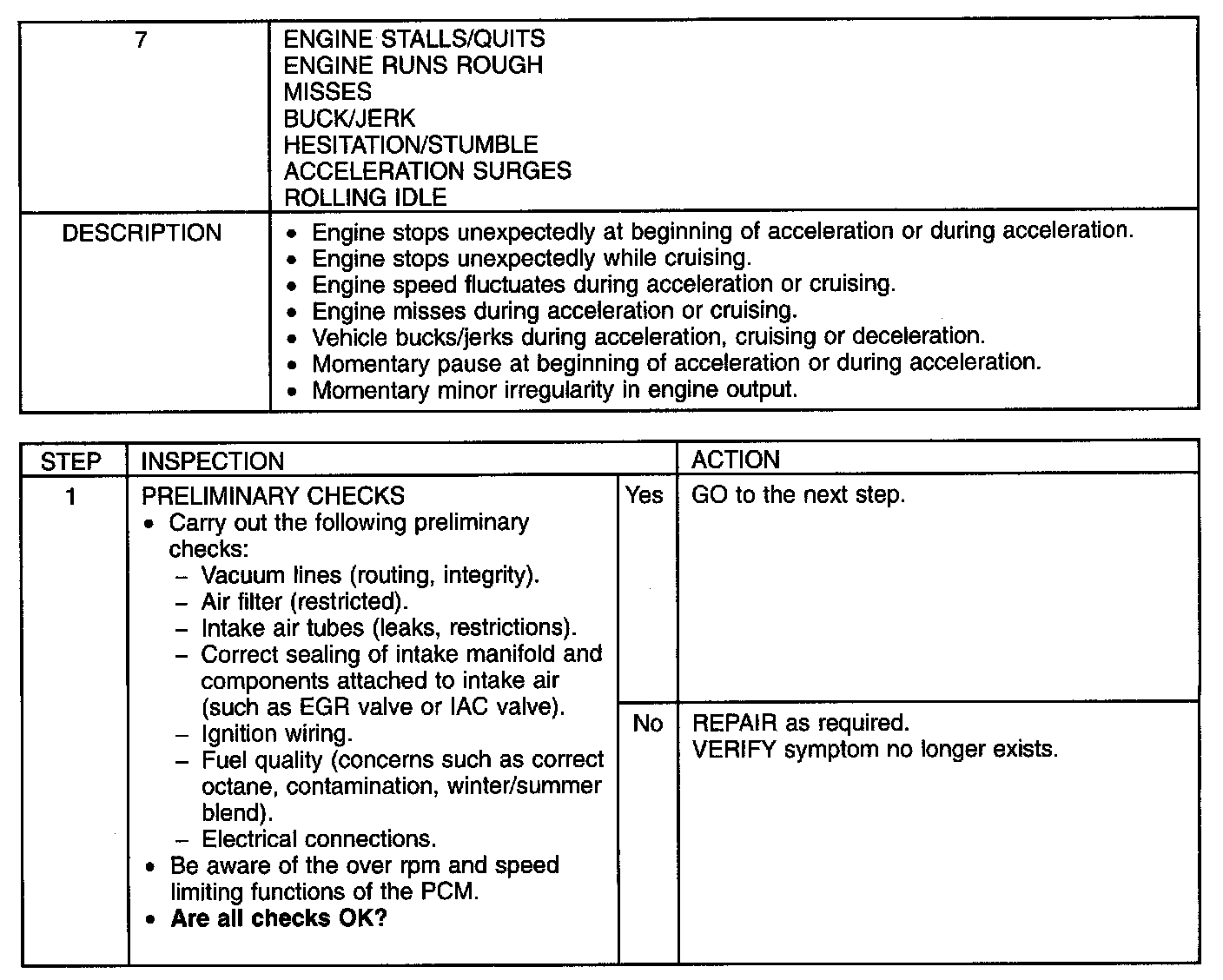

Step 1:

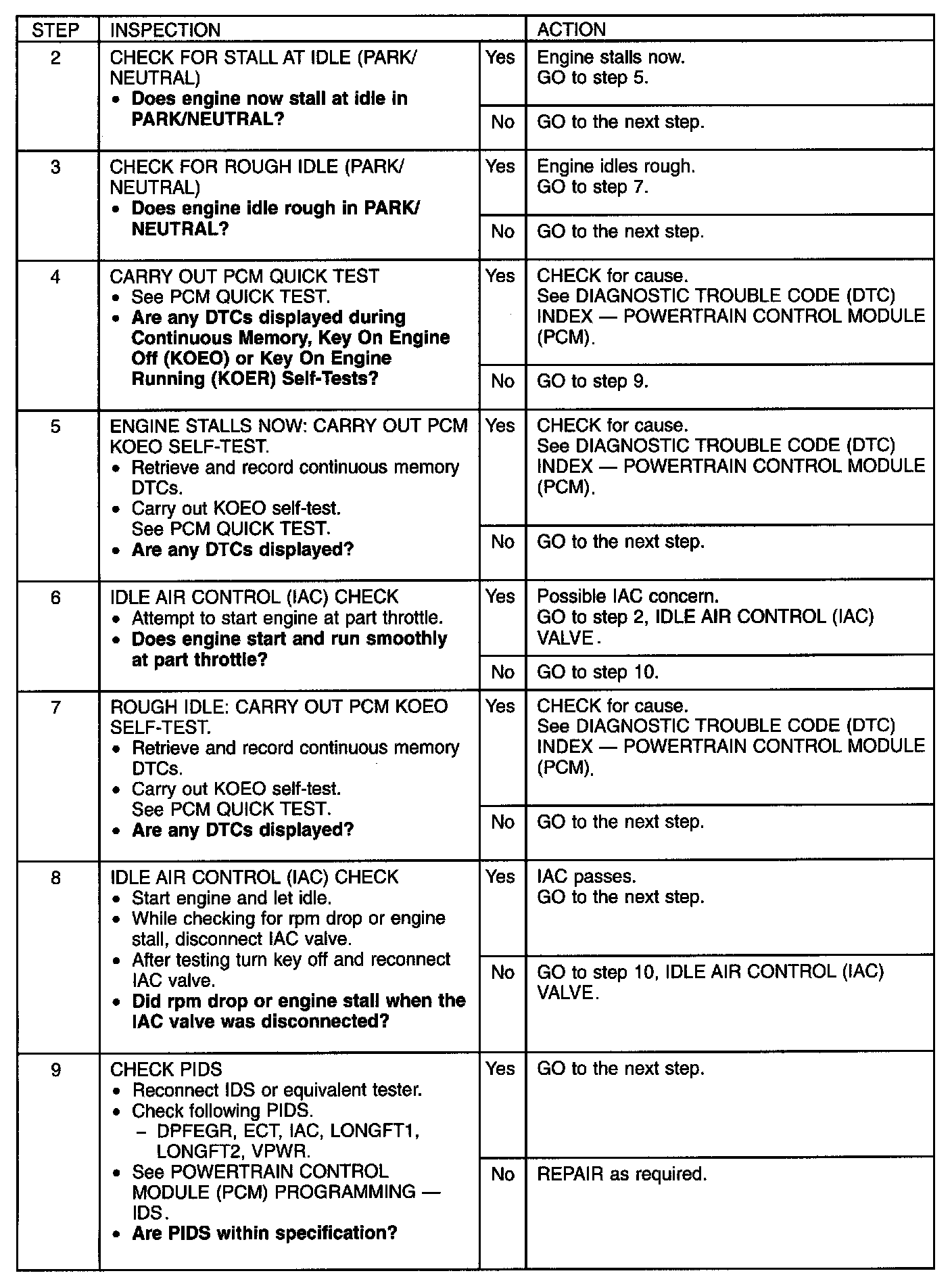

Step 2-Step 9:

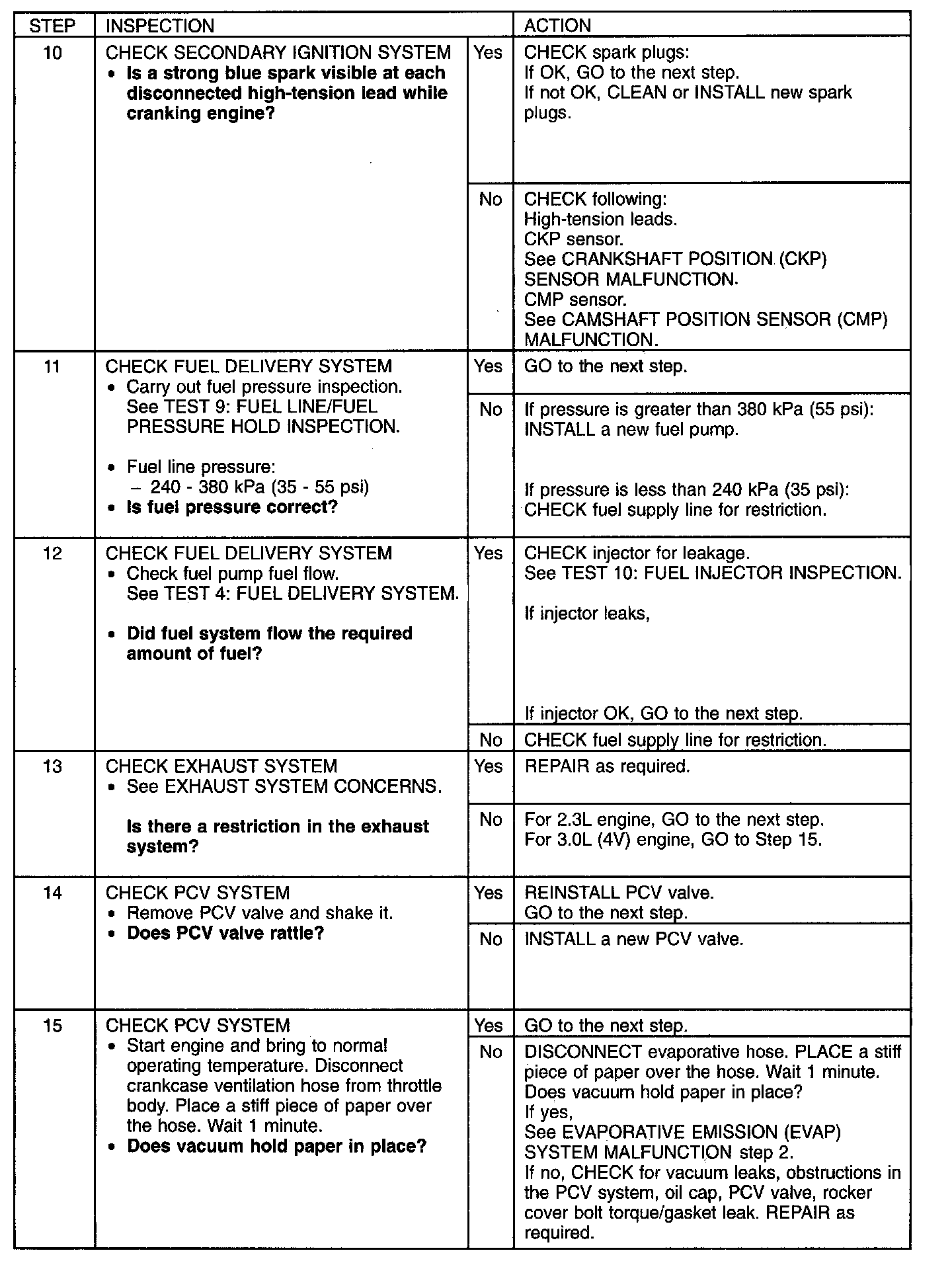

Step 10-Step 15:

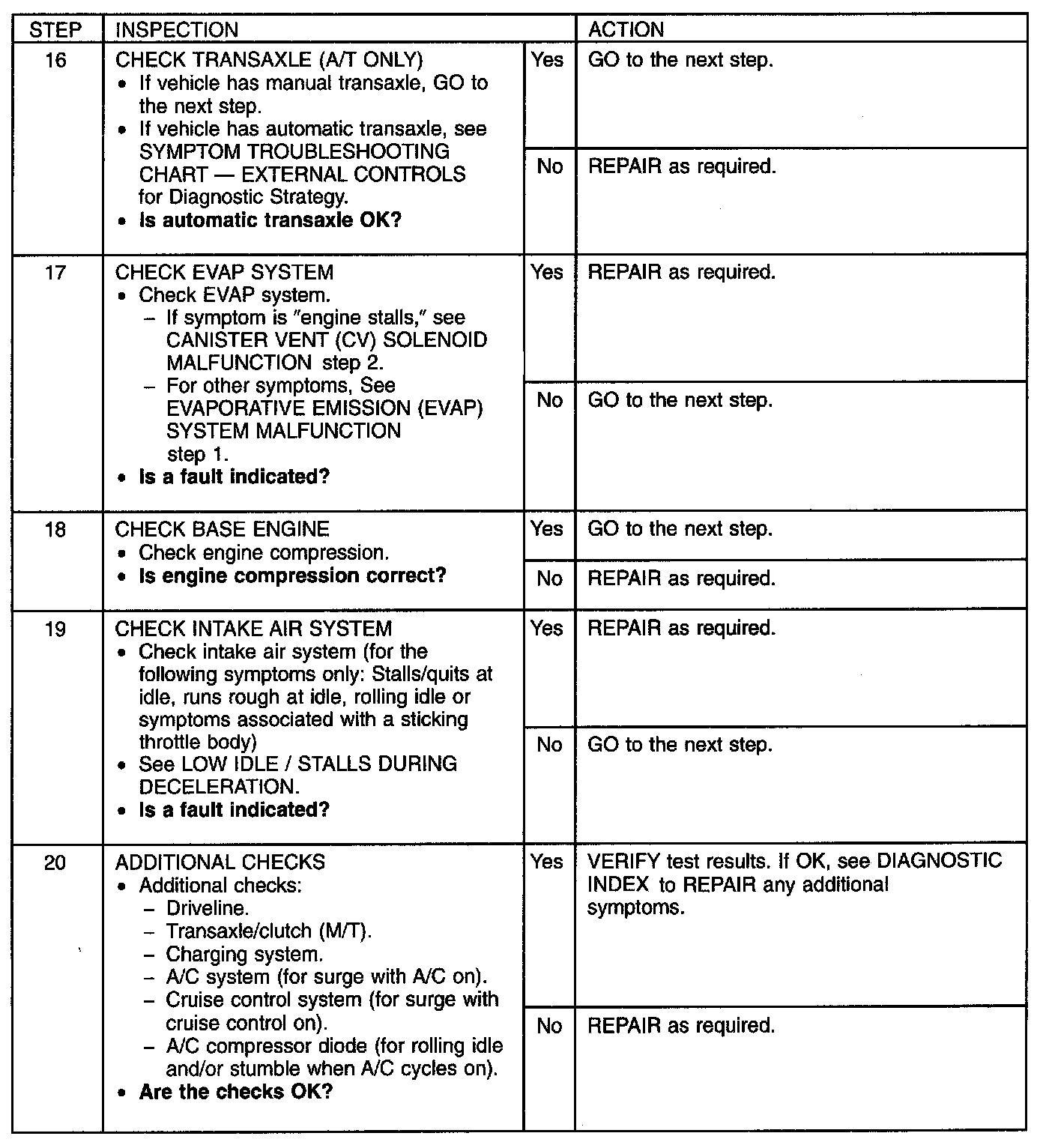

Step 16-Step 20:
