Refueling Vapor Recovery System: Service and Repair

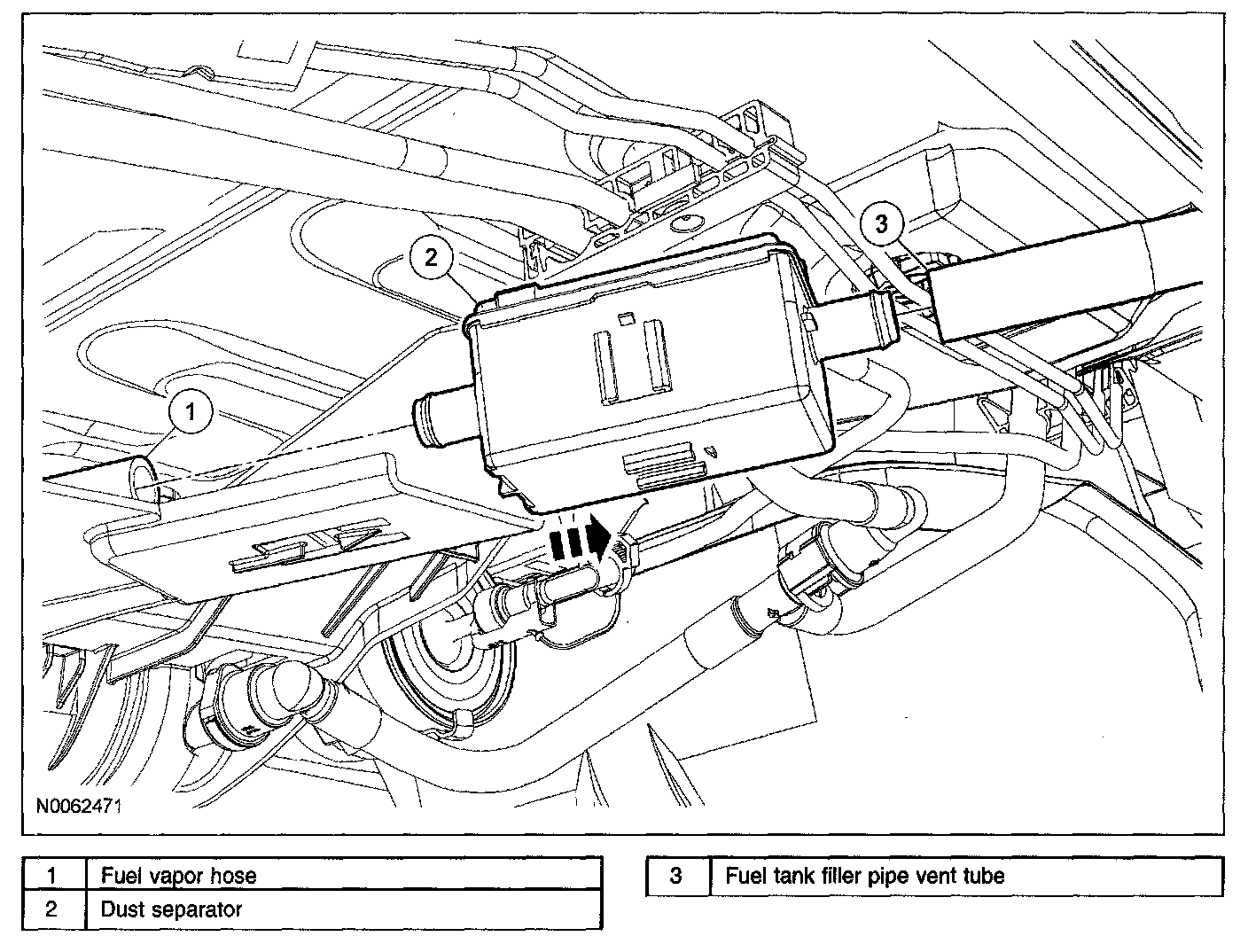

DUST SEPARATOR - 2.3L AND 3.0L (4V) REMOVAL/INSTALLATION






1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.
2. Disconnect the fuel tank filler pipe vent tube from the dust separator.
3. Depress the retainer tab and remove the dust separator from the fuel vapor tube and evaporative emissions (EVAP) canister bracket.
4. To install, reverse the removal procedure.
