Pinpoint Test 4: The Generator Is Noisy

Pinpoint Test 4: The Generator Is Noisy

Normal Operation
The generator is belt-driven by the engine accessory drive system.

Possible Causes
- Accessory drive belt
- Loose bolts/brackets
- Generator/pulley

Diagnostic Procedure

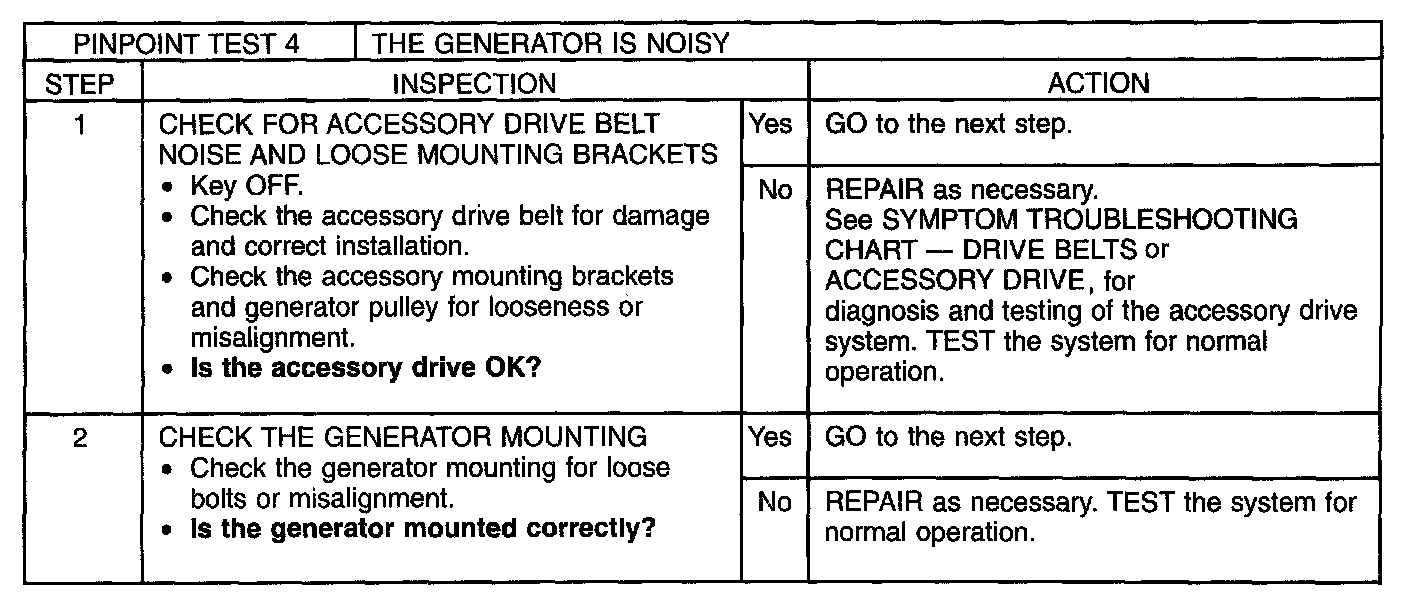

Step 1-Step 2:

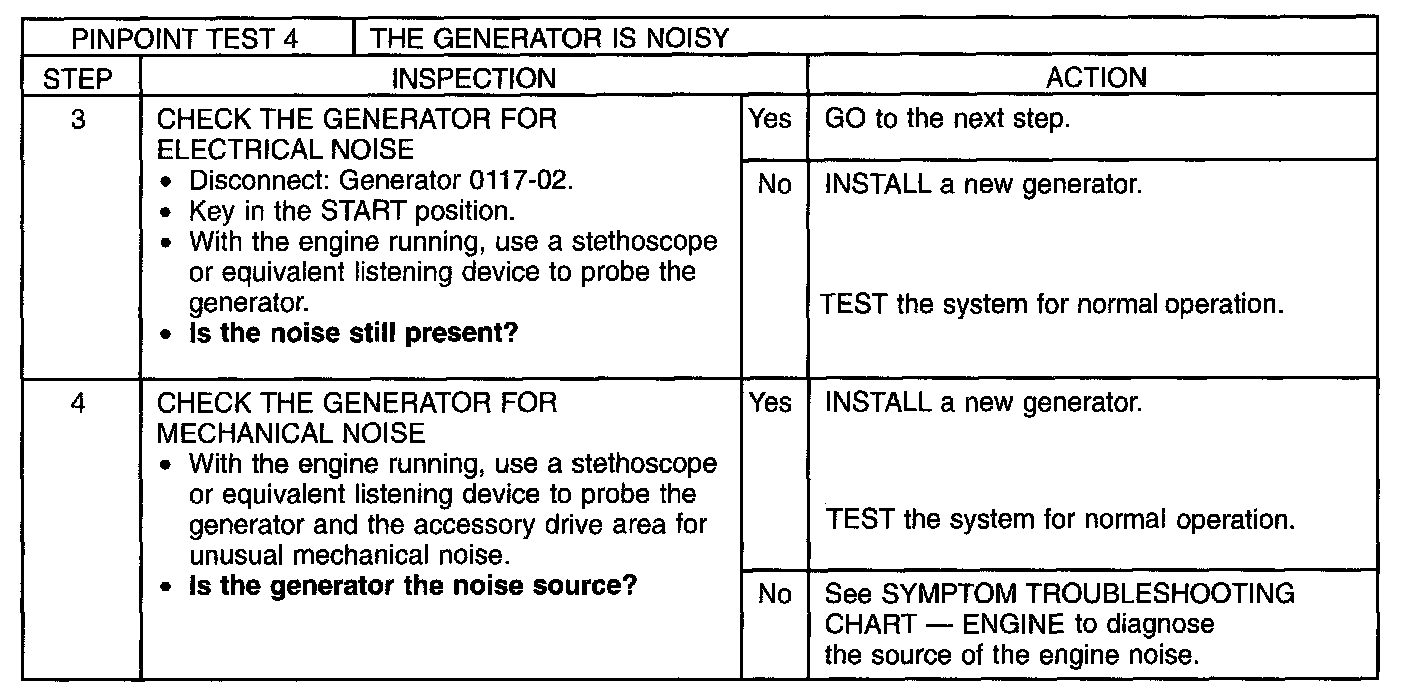

Step 3-Step 4:
