Connector End Views - Charging System

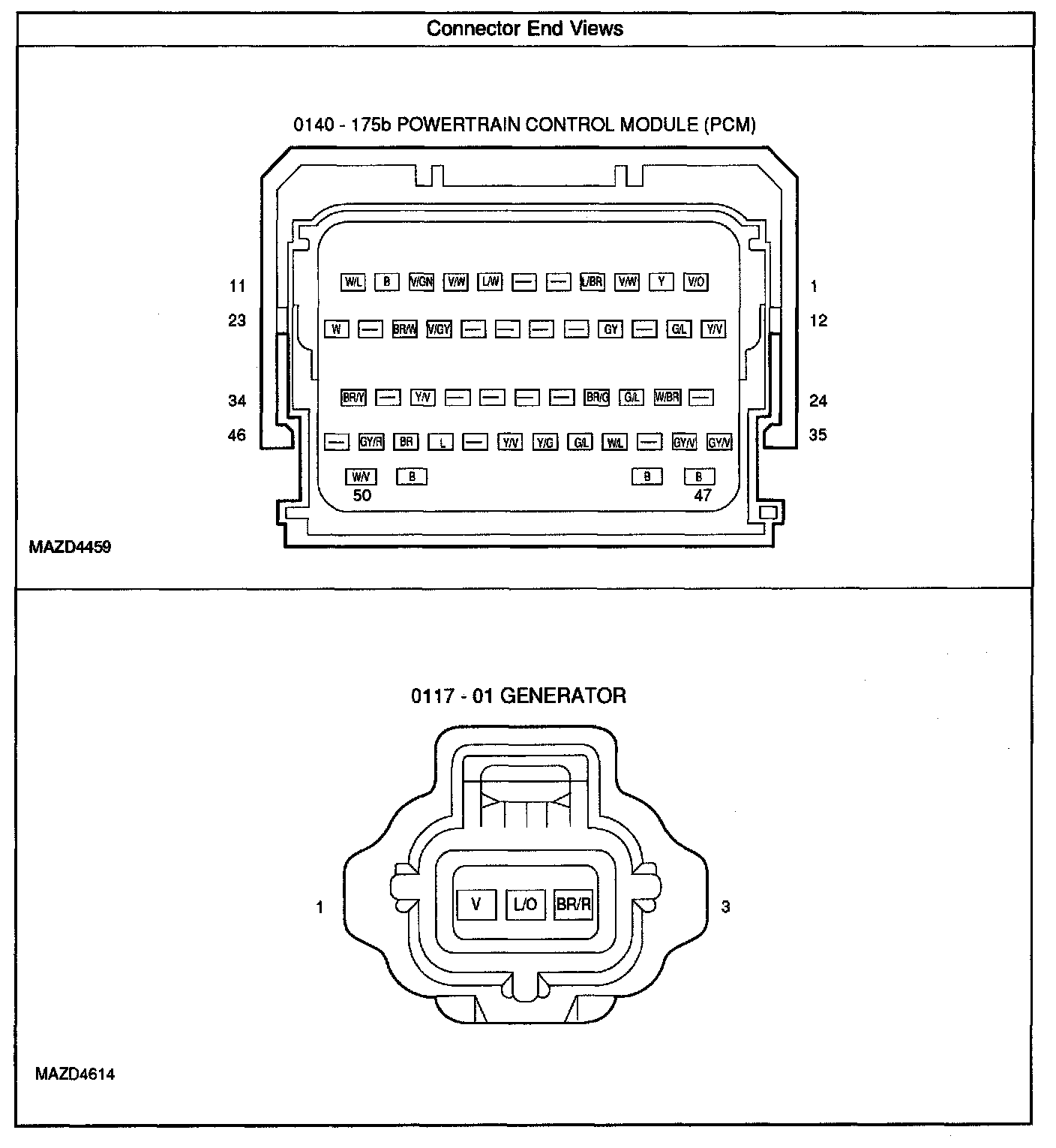

Connector End Views-Charging System (Part 1):

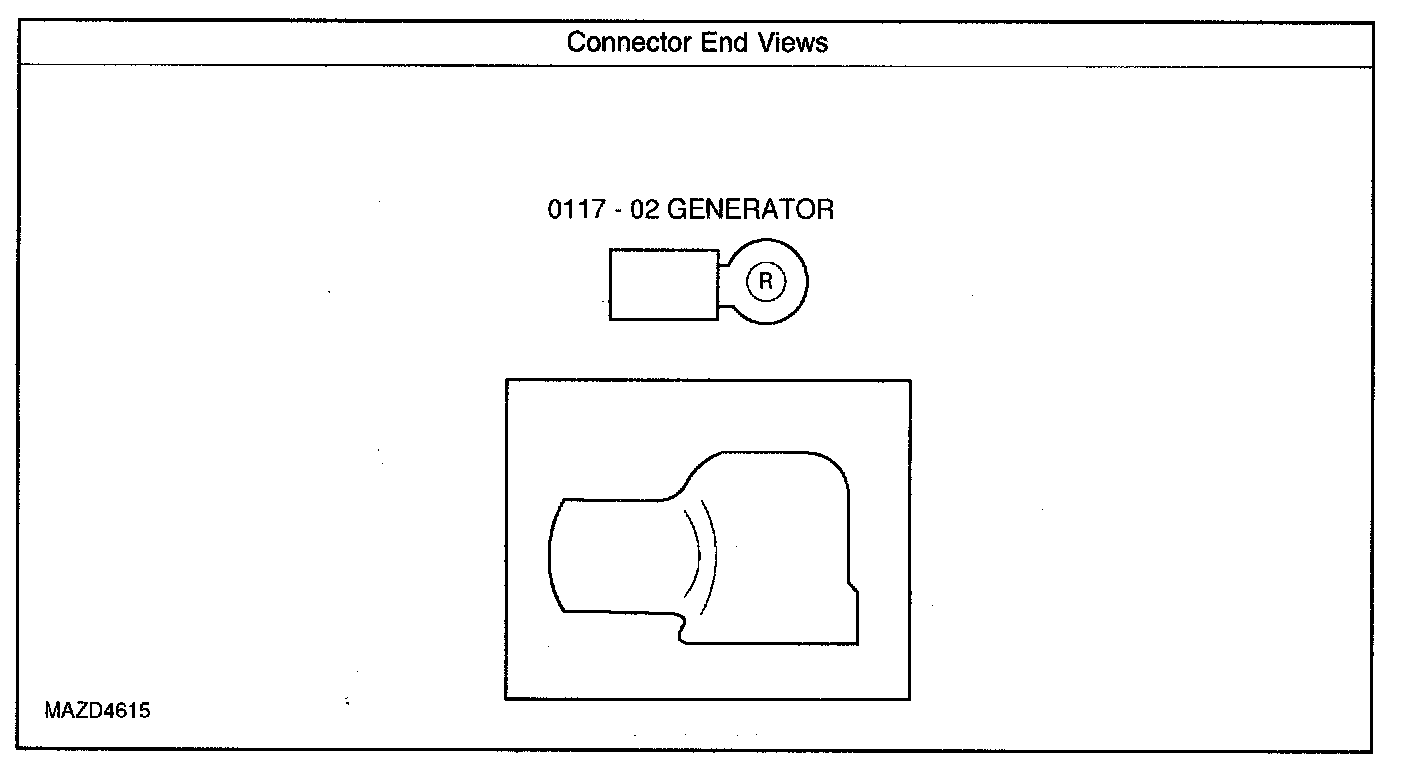

Connector End Views-Charging System (Part 2):

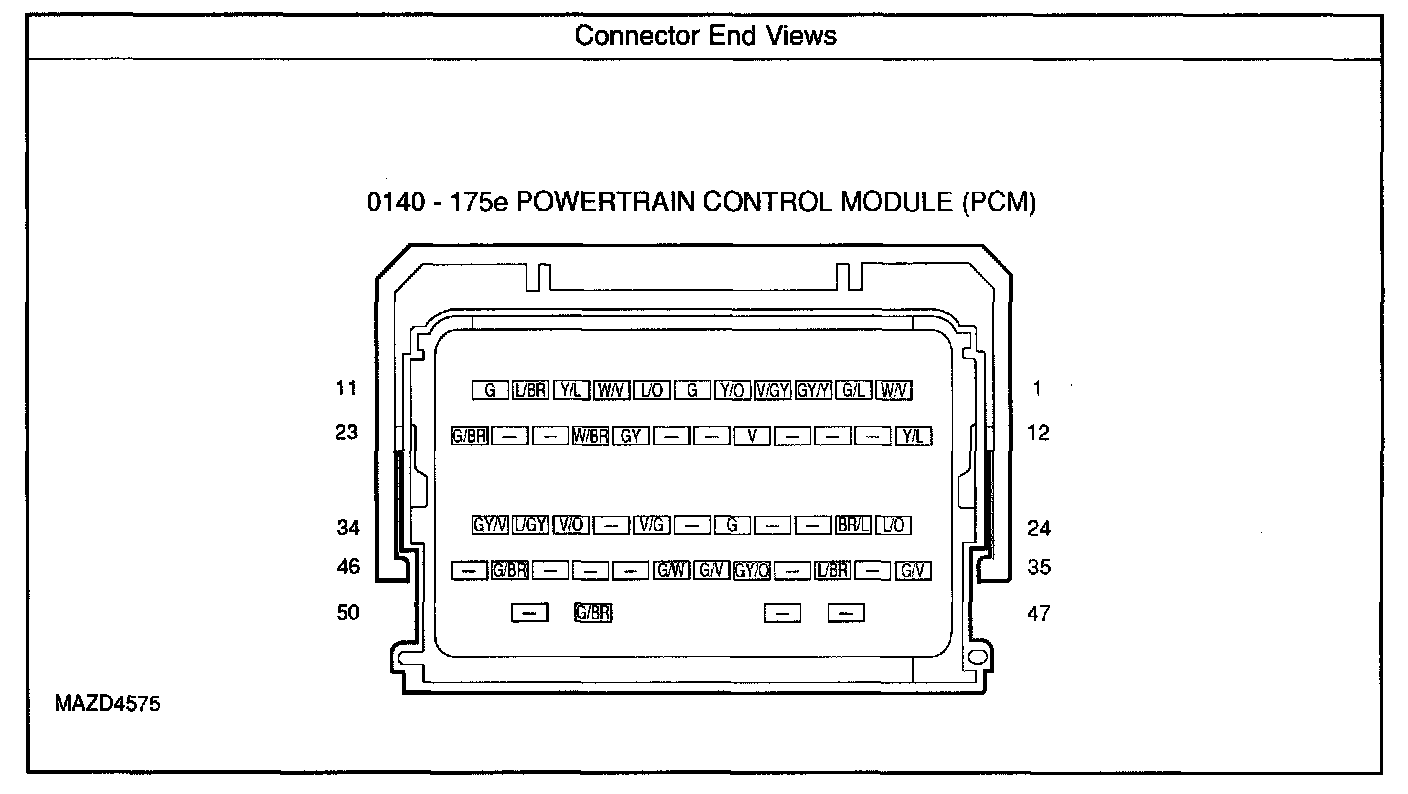

Connector End Views-Charging System (Part 3):
