Symptom Related Diagnostic Procedures

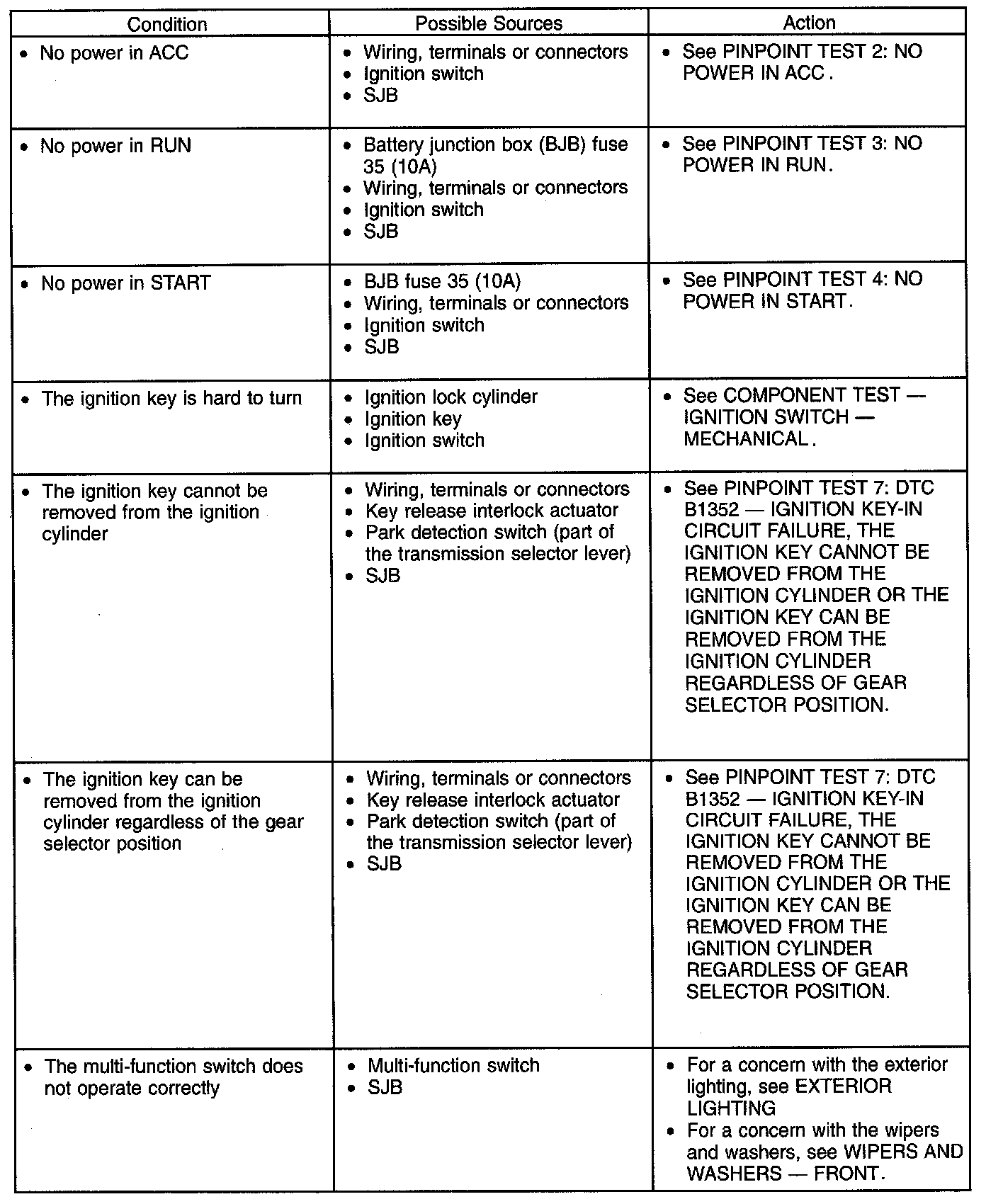

Symptom Troubleshooting Chart-Power Systems (Part 1):

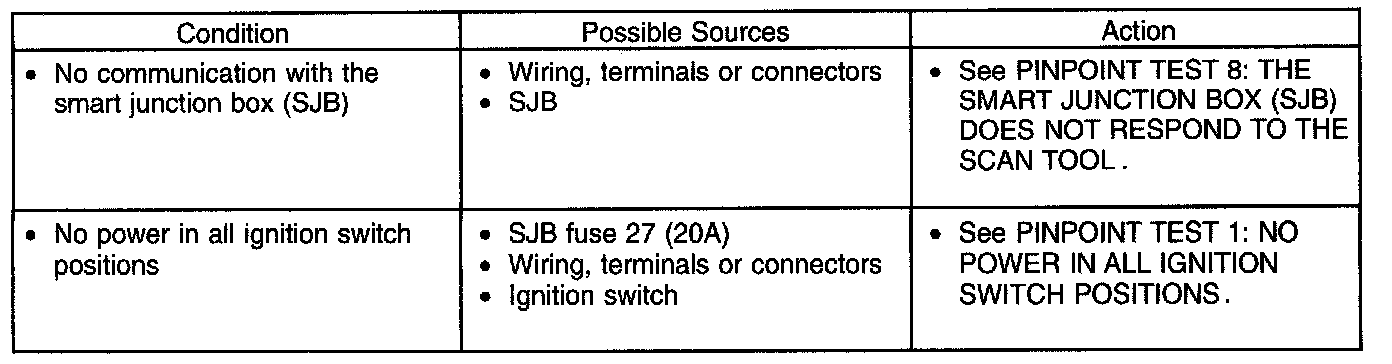

Symptom Troubleshooting Chart-Power Systems (Part 2):
