Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2008
>>
Tribute 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

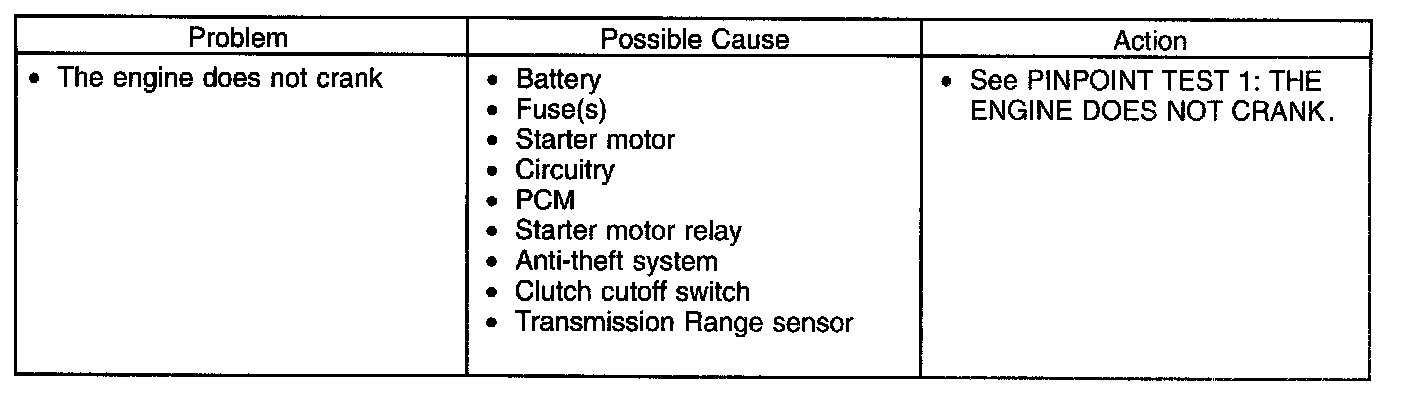

Symptom Troubleshooting Chart-Starting System (Part 1):

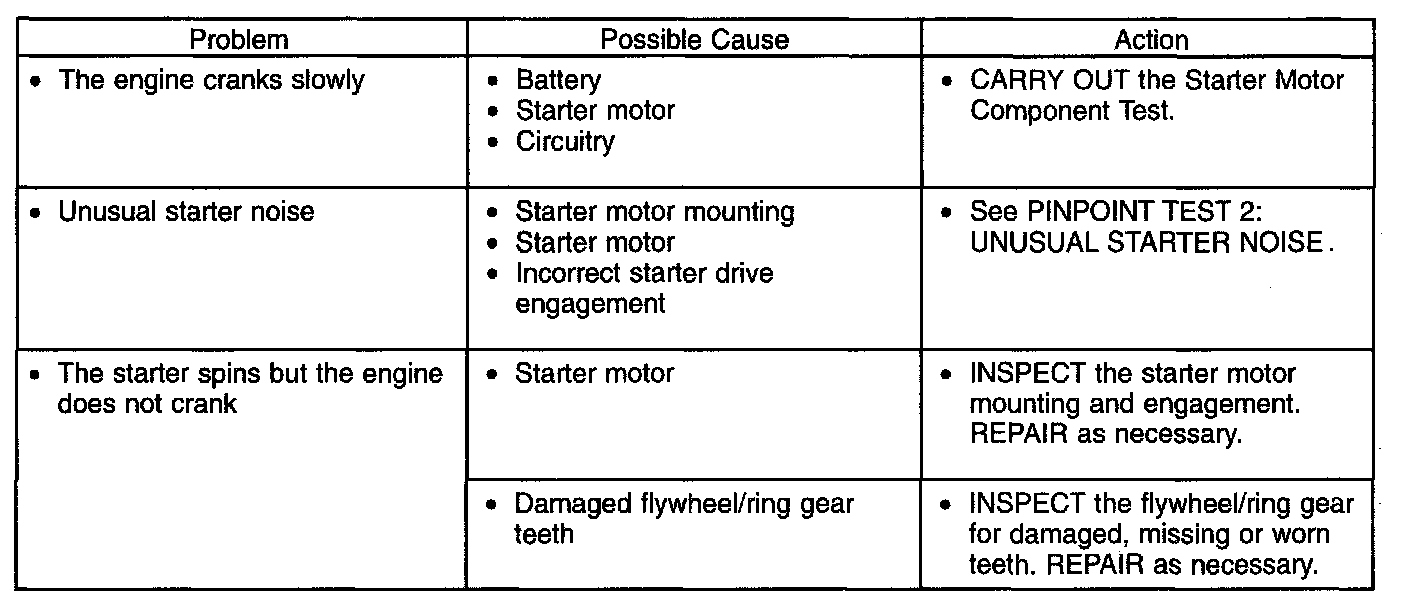

Symptom Troubleshooting Chart-Starting System (Part 2):
