Steering Column: Testing and Inspection

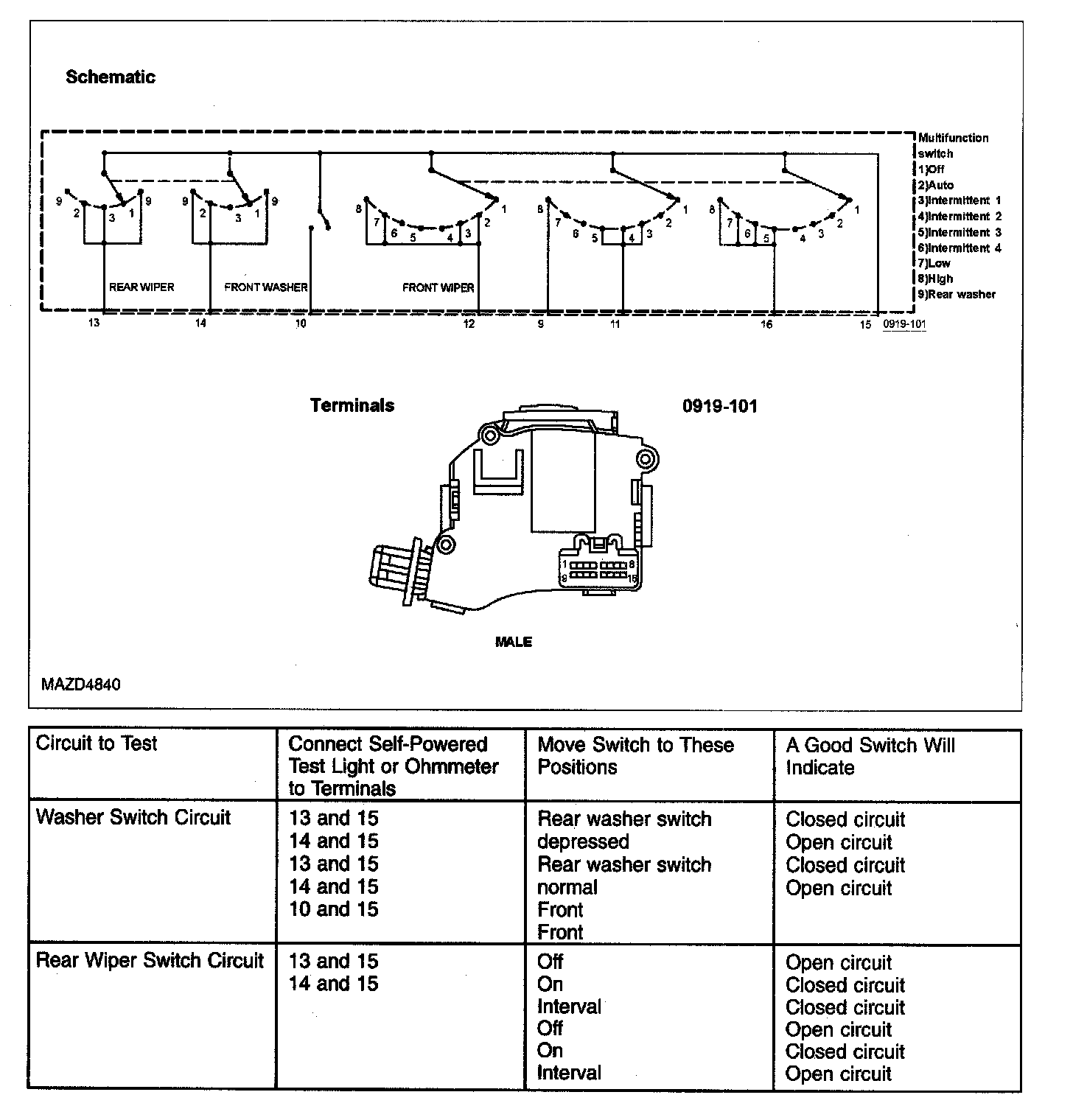

COMPONENT TEST - MULTIFUNCTION SWITCH
1.
Remove the multifunction switch..
2.
Inspect for continuity between the multifunction switch terminals using a self-powered test light or an ohmmeter.
