Chain Sprockets Disassembly/Assembly
CHAIN SPROCKETS DISASSEMBLY/ASSEMBLYDisassembly

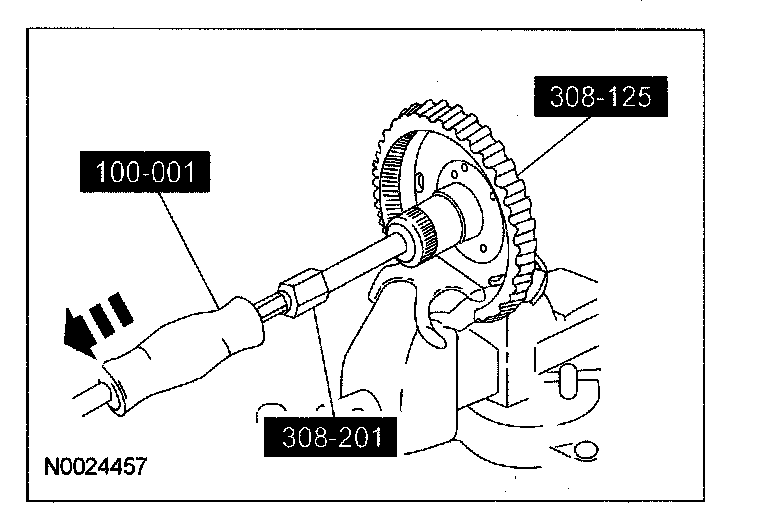

1. Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.
Caution
^ Clamp the sprocket in a soft-jawed vise or damage to the sprocket can occur.

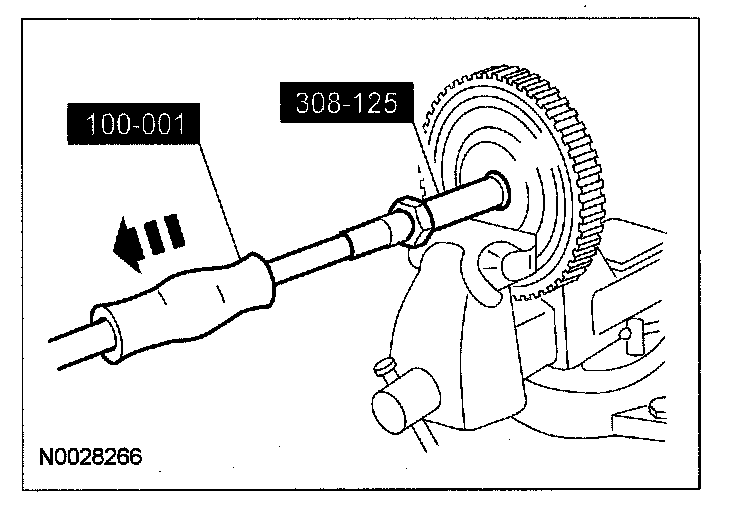

2. Using the special tools, remove the No. 17 stator support bearing, as necessary.
Assembly

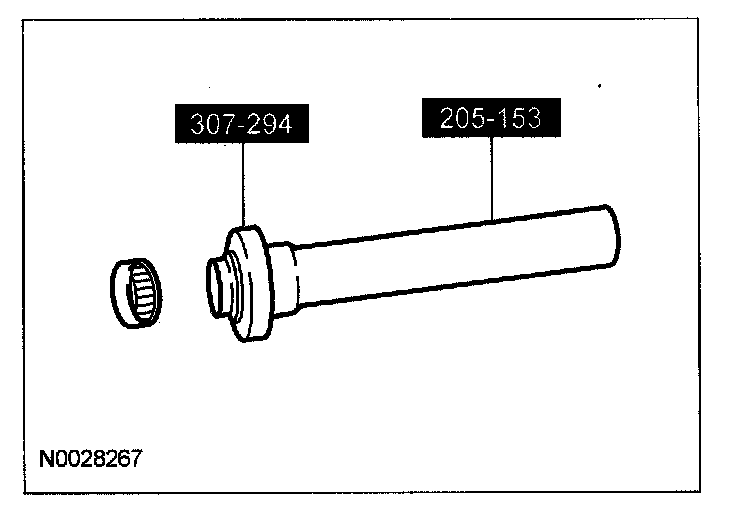

1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
^ Position the bearing with the part number facing toward the handle of the special tool.

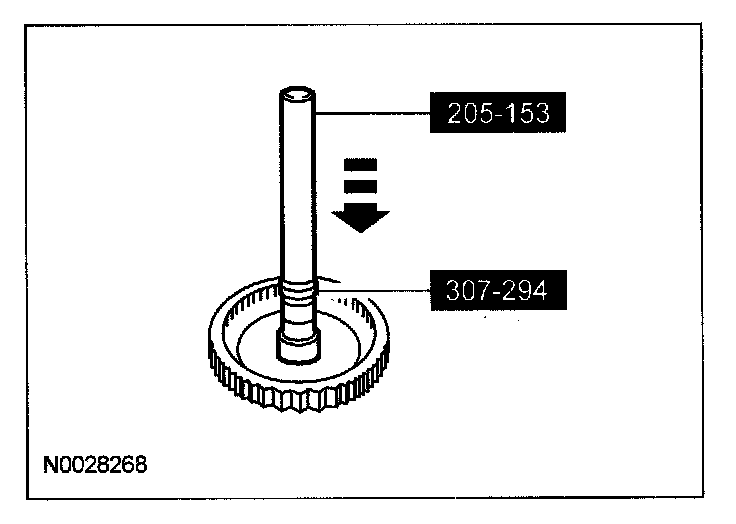

2. Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.
Note
^ The identification stamping of the bearing goes to the outboard side of the reverse/ overdrive ring gear.

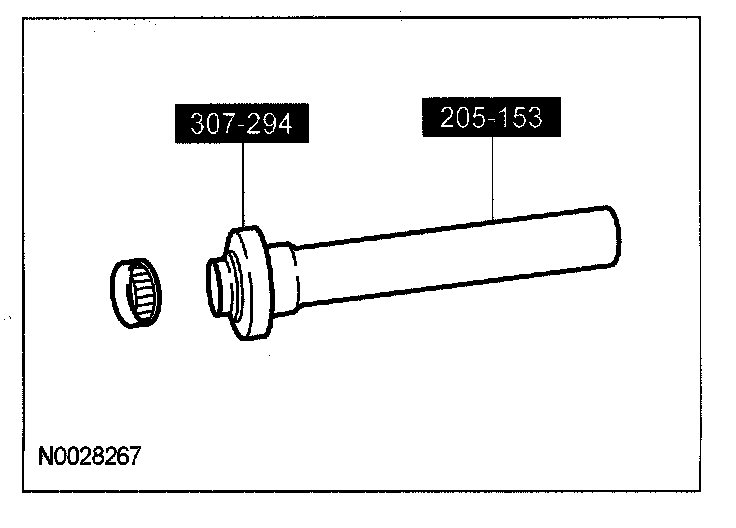

3. Position the No. 17 stator support bearing on the special tools.
^ Position the bearing with the part number facing toward the handle of the special tool.

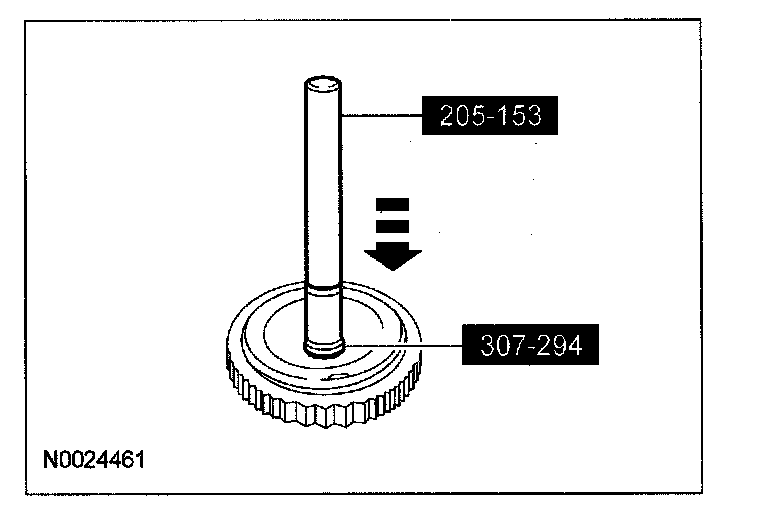

4. Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
Note
^ The identification stamping of the bearing goes to the outboard side of the reverse/ overdrive ring gear.
