Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly
Pinpoint Test 1: The Shift Interlock System Does Not Release/Lock Correctly

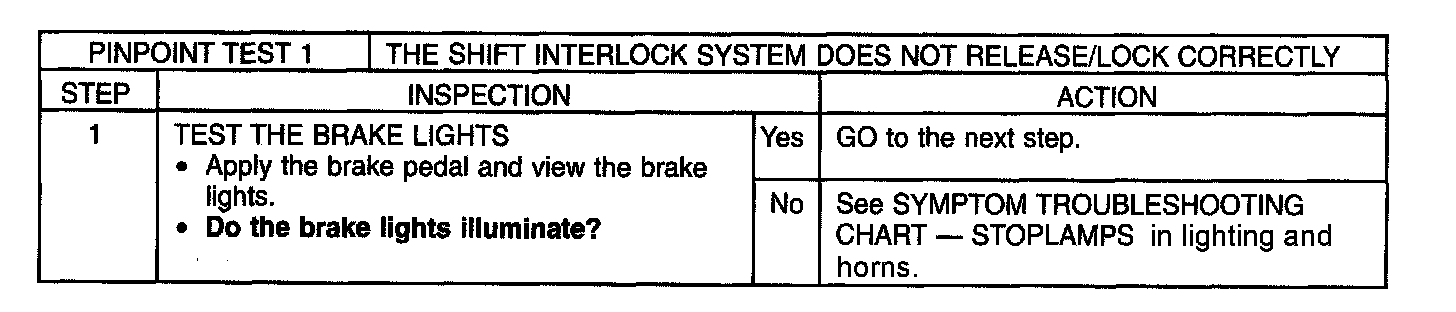

PINPOINT TEST 1: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY
Pinpoint Test 1: The Shift Interlock System Does Not Release/lock Correctly:

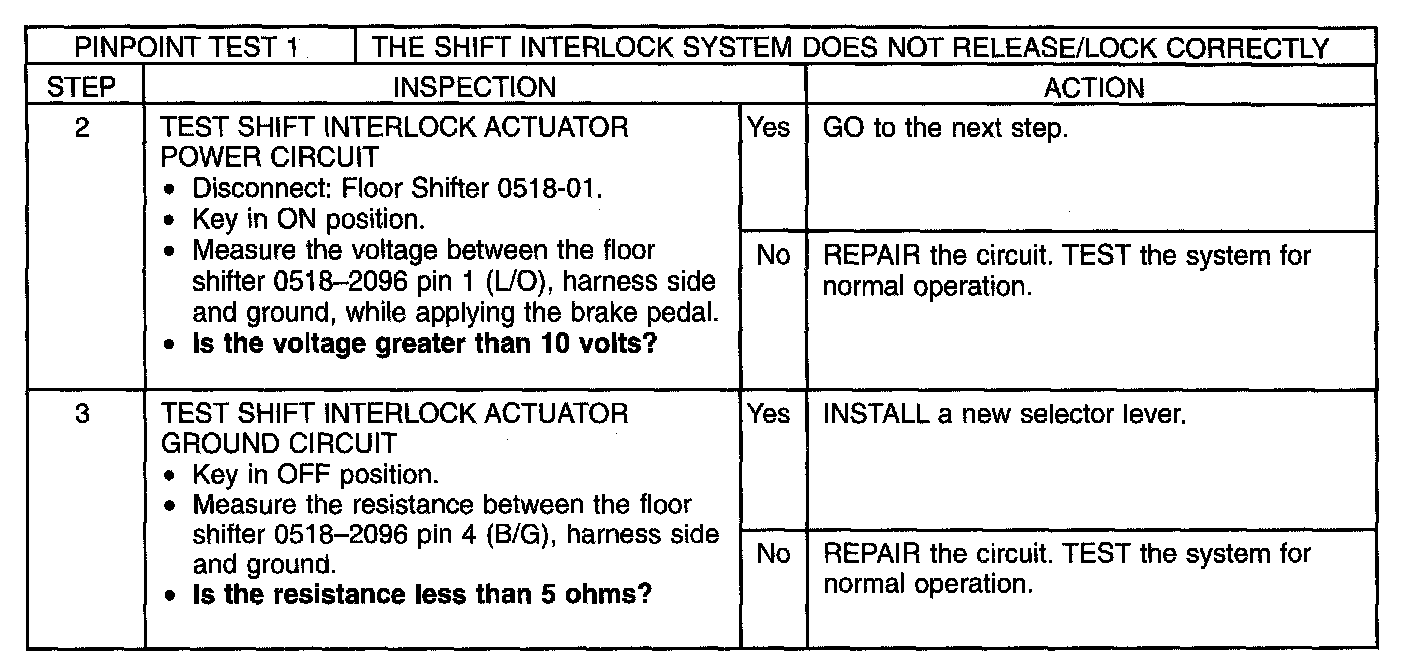

Step 2-Step 3:
