Pinpoint Test 3: The Transaxle Control (TC) Switch Does Not Operate Correctly
Pinpoint Test 3: The Transaxle Control (TC) Switch Does Not Operate Correctly
PINPOINT TEST 3: THE TRANSAXLE CONTROL (TC) SWITCH DOES NOT OPERATE CORRECTLY

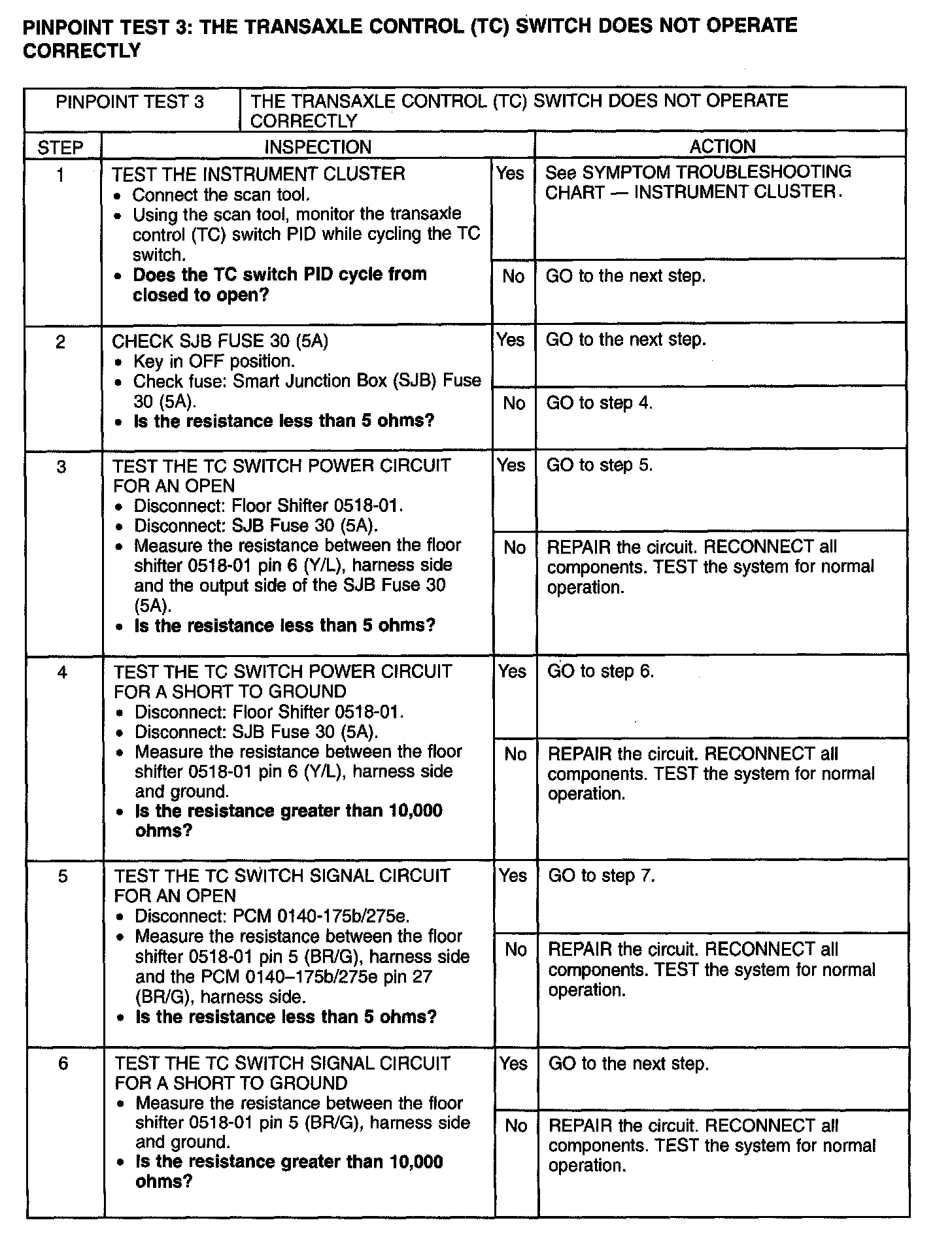

Step 1-Step 6:

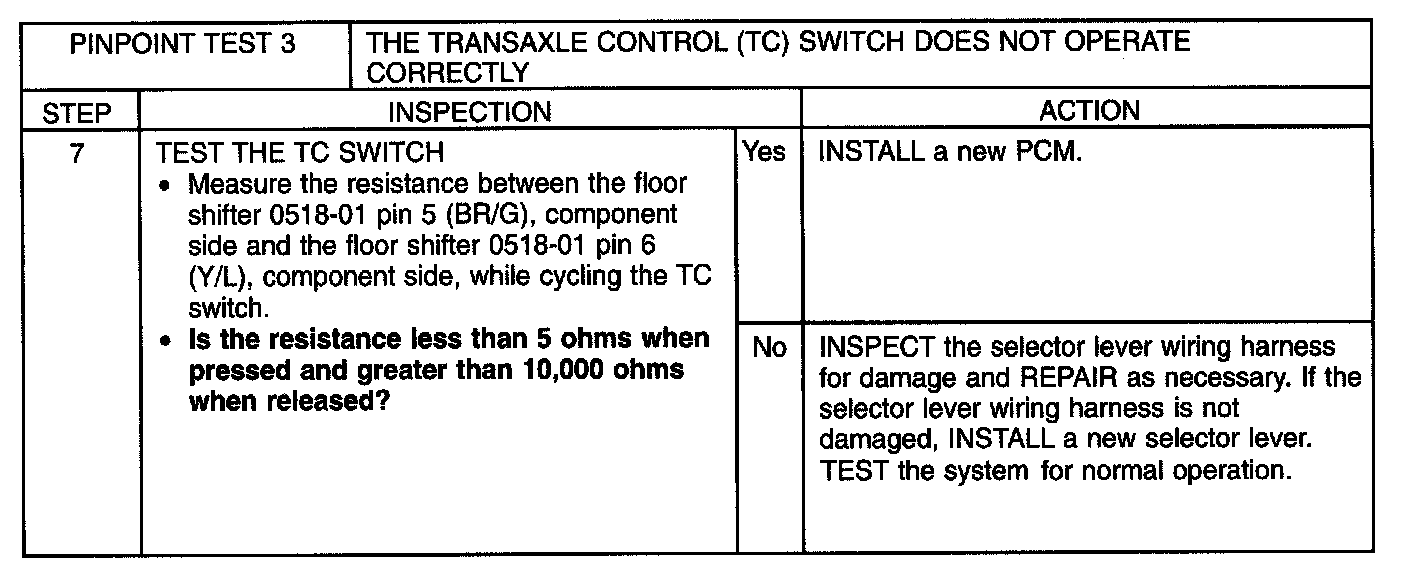

Step 7:
