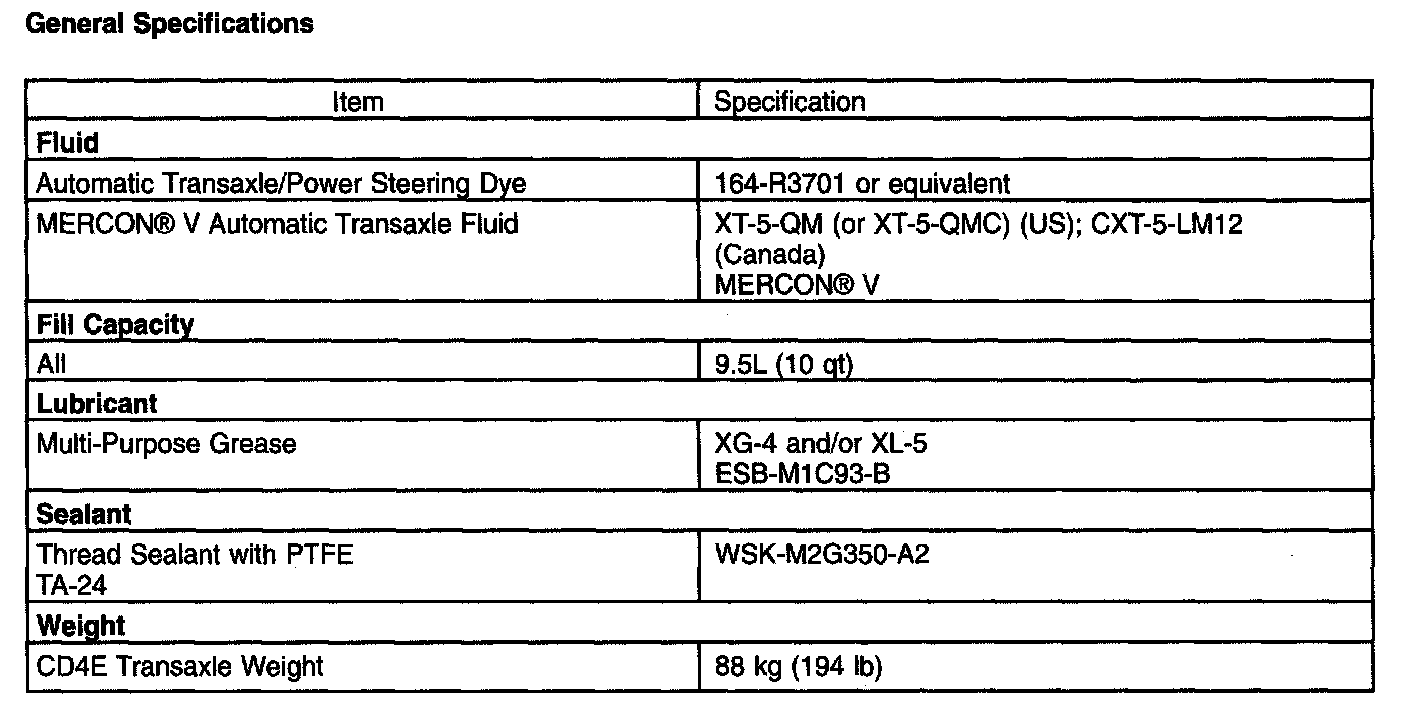

General Specifications

General Specifications:





General Specifications

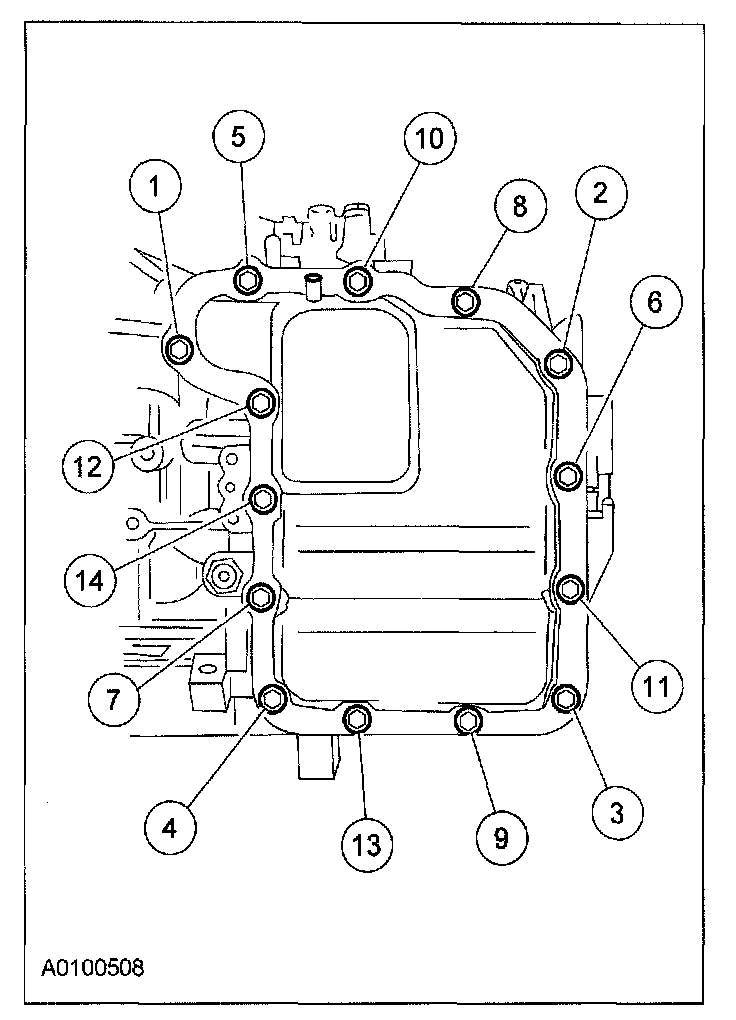

Main Control Cover
Tighten the bolts and studs in the indicated sequence to 13 N-m (1.3 kgf-m, 10 ft-lbf).
