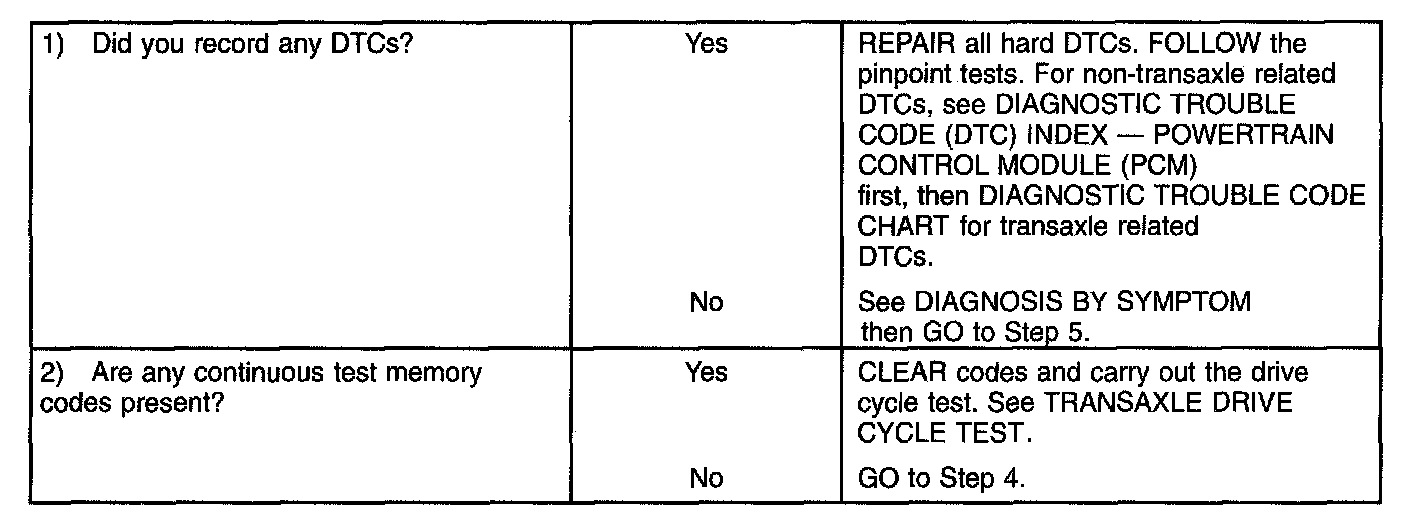

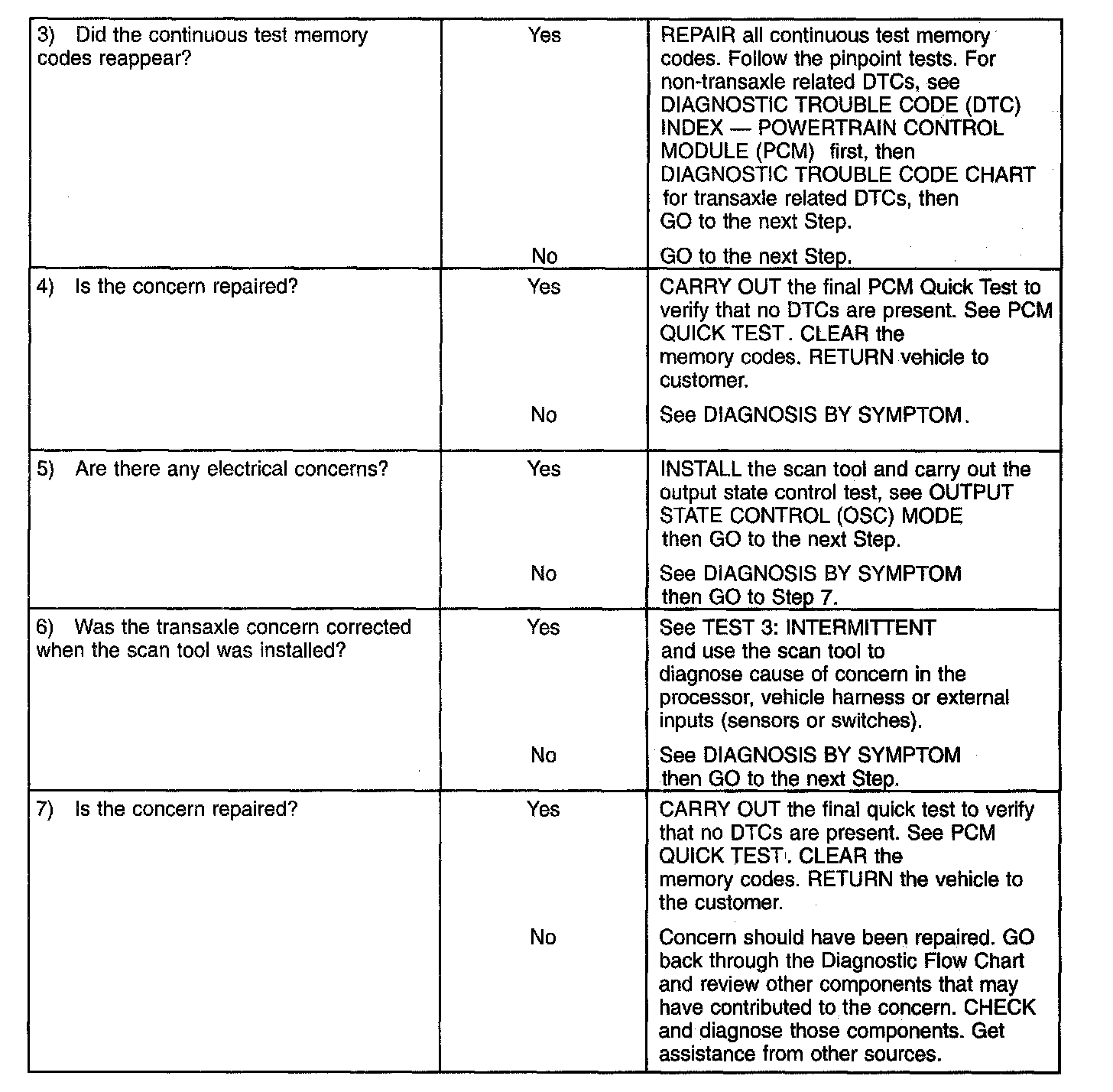

Diagnostic Flow Chart
DIAGNOSTIC FLOW CHARTPrior to carrying out the flow test, the following items should be checked:
^ Know and understand the customer concerns.
^ Check the fluid level and condition.
^ Verify the concern by operating the vehicle.
^ Check the non-factory installed items and verify correct installation.
^ Check the shift linkage adjustments.
^ Check TSBs and Mazda Tips messages for vehicle concerns.
^ Carry out quick test both KOER and KOEO.
^ Record all codes.
^ Verify that the vehicle transaxle control module (TCM) is at the latest calibration release level.
