Connector End Views - Transaxle

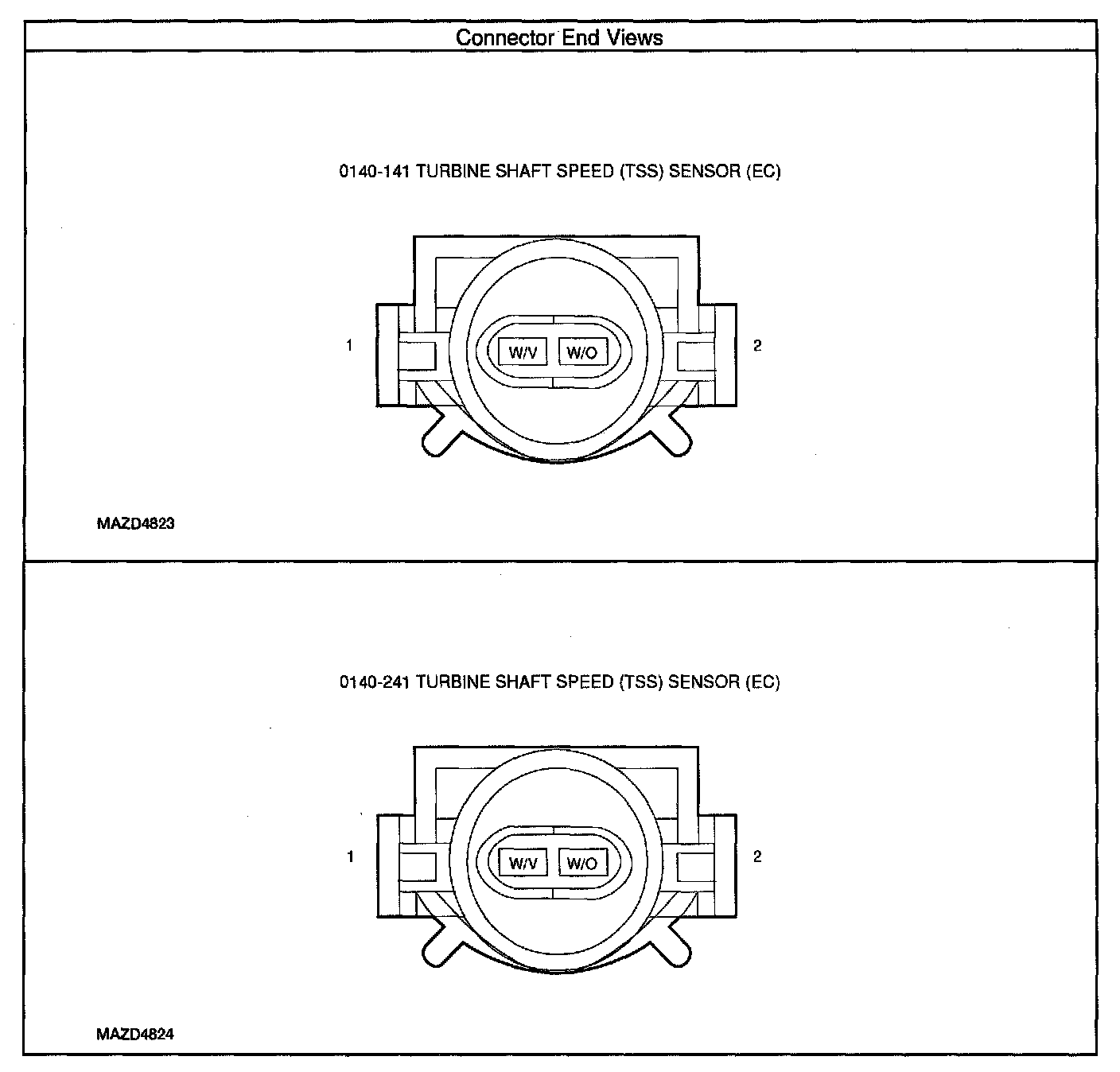

Connector End Views - Transaxle (Part 1):

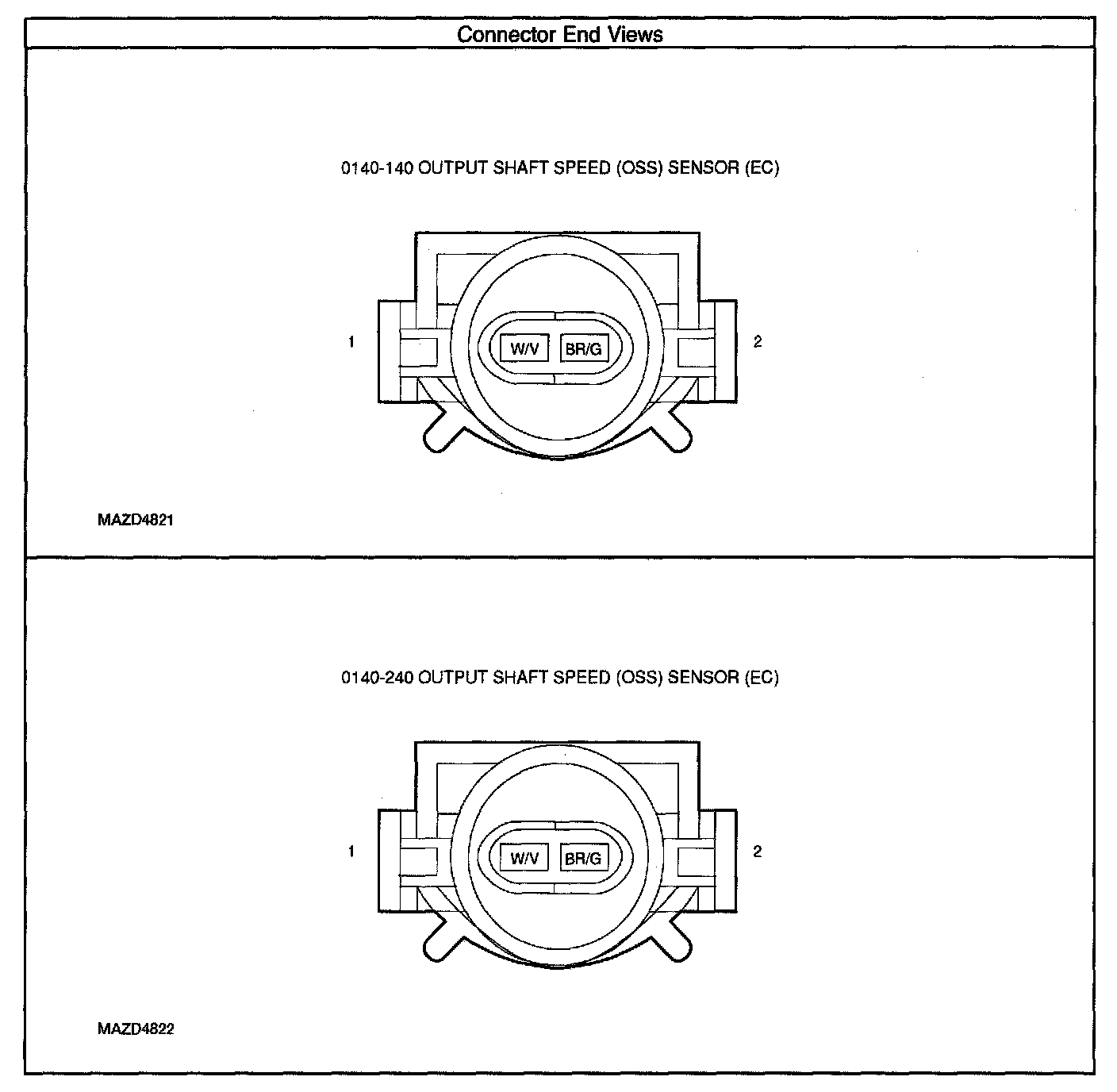

Connector End Views - Transaxle (Part 2):

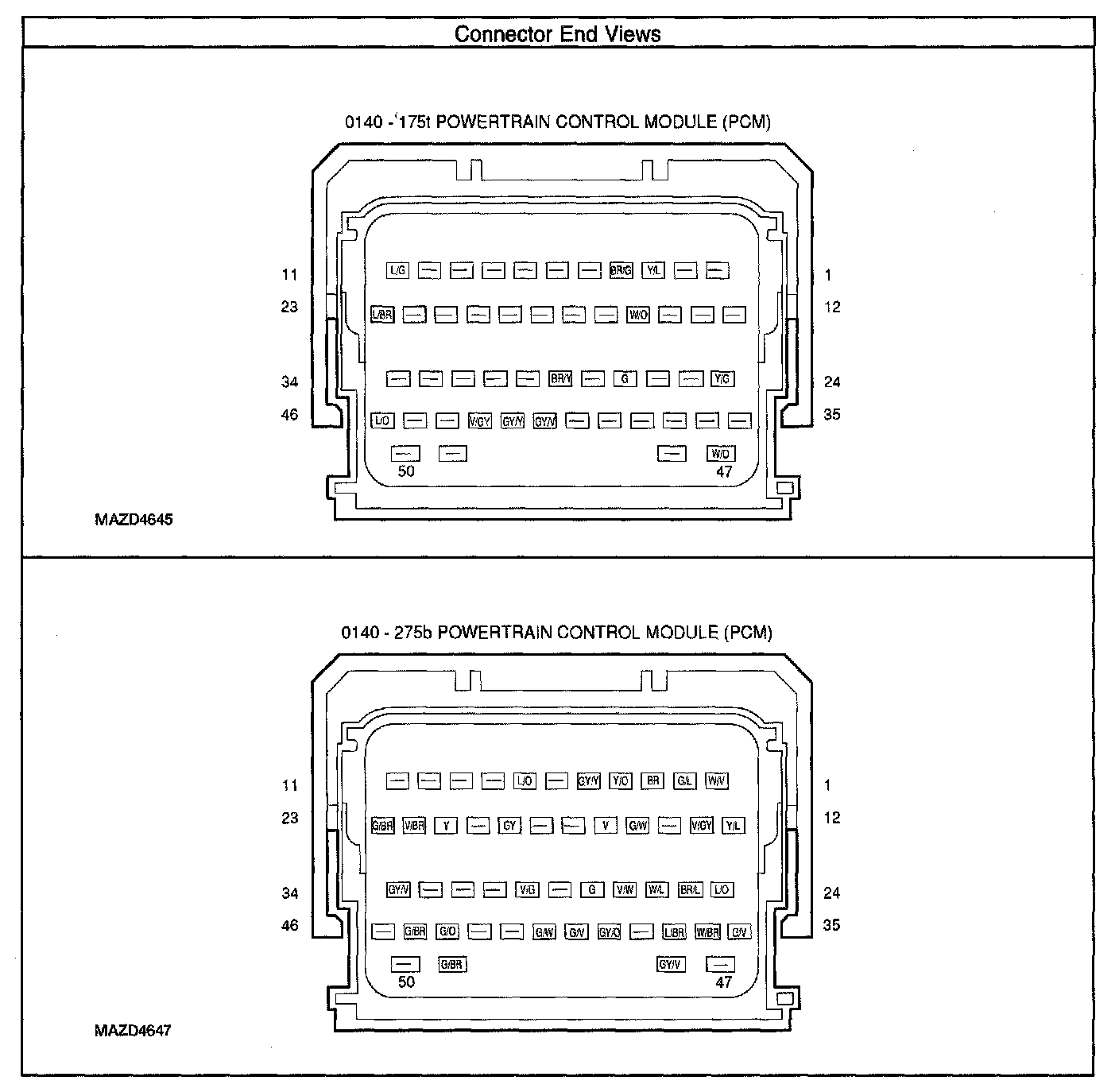

Connector End Views - Transaxle (Part 3):

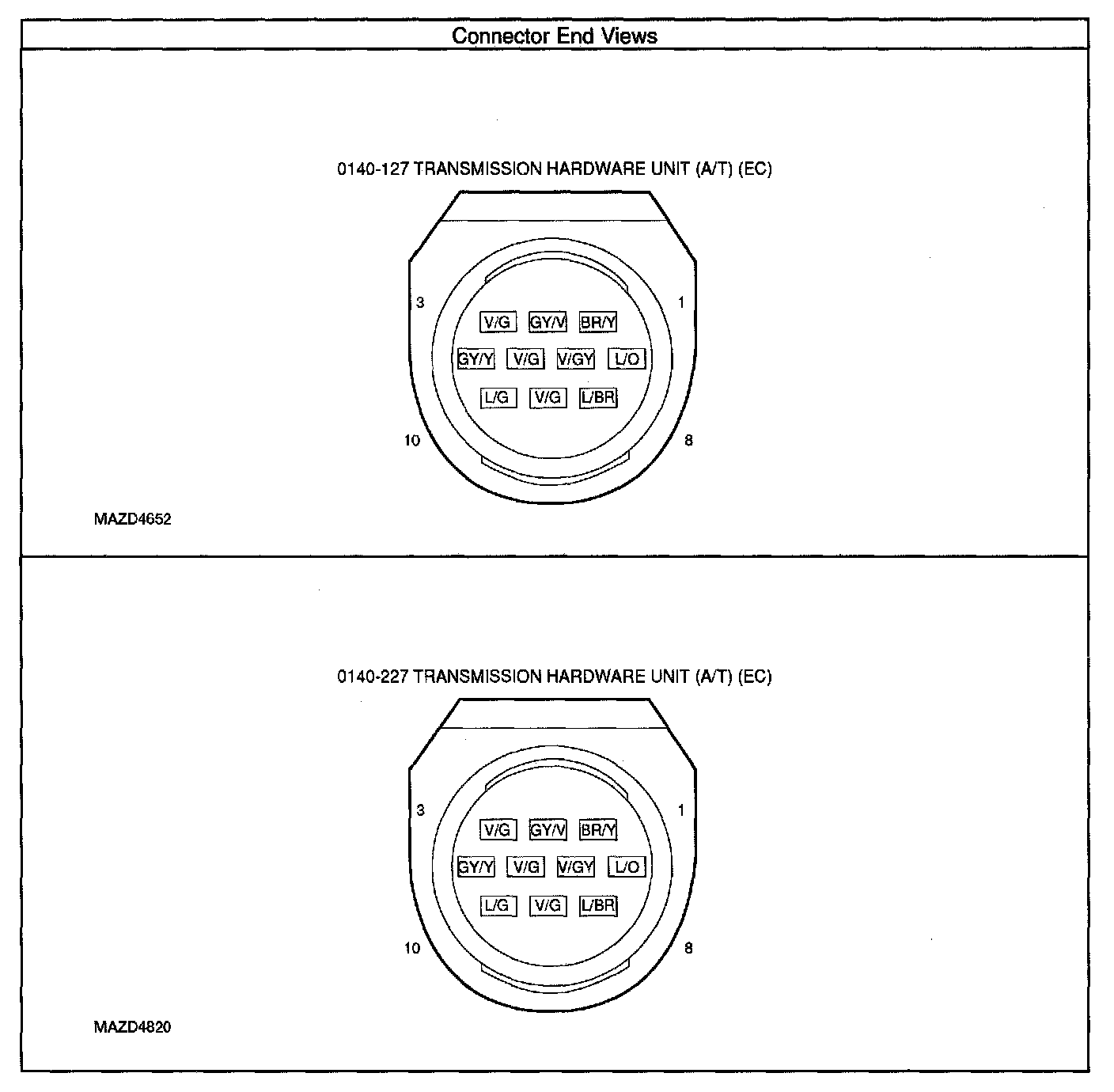

Connector End Views - Transaxle (Part 4):

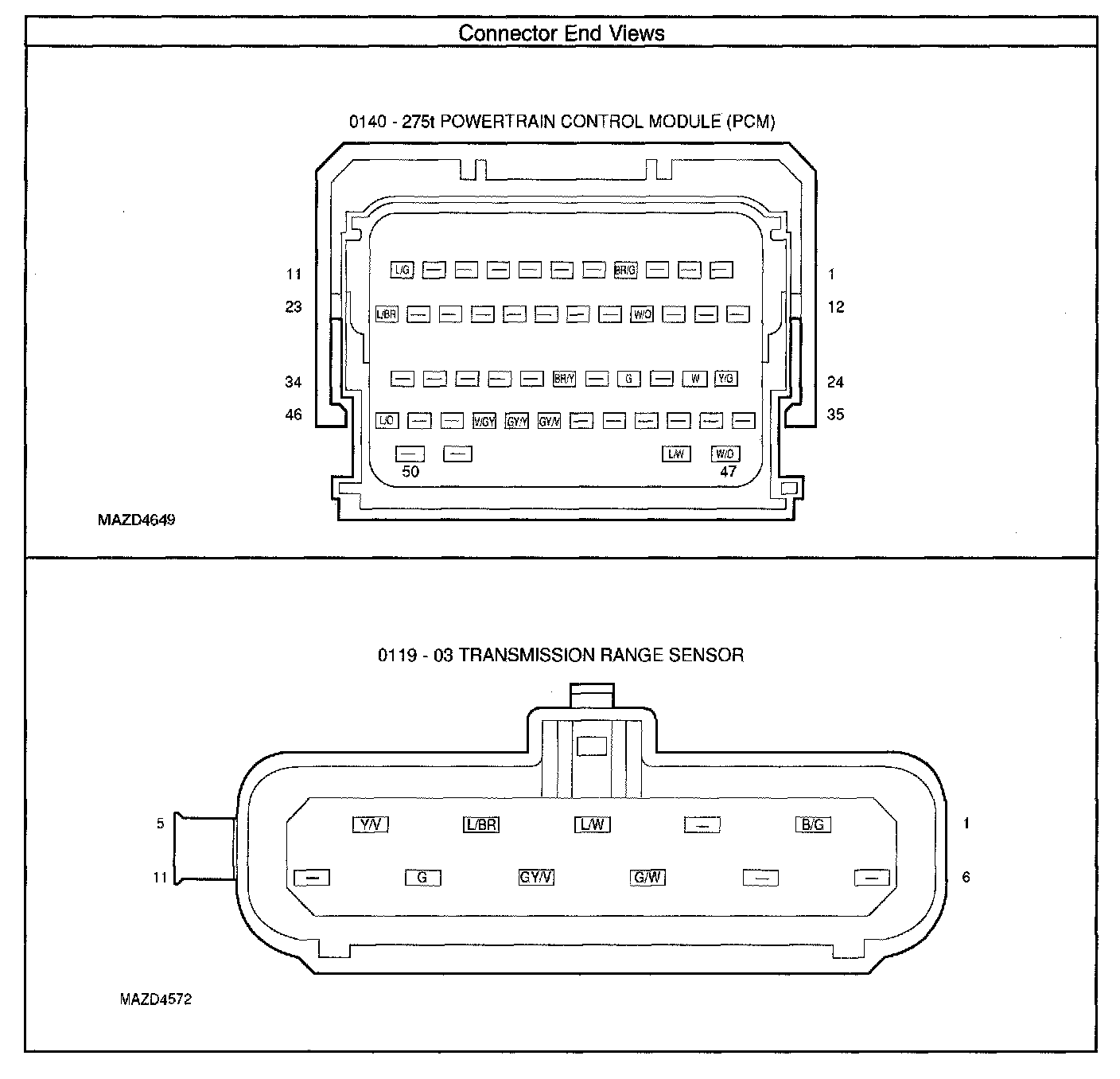

Connector End Views - Transaxle (Part 5):

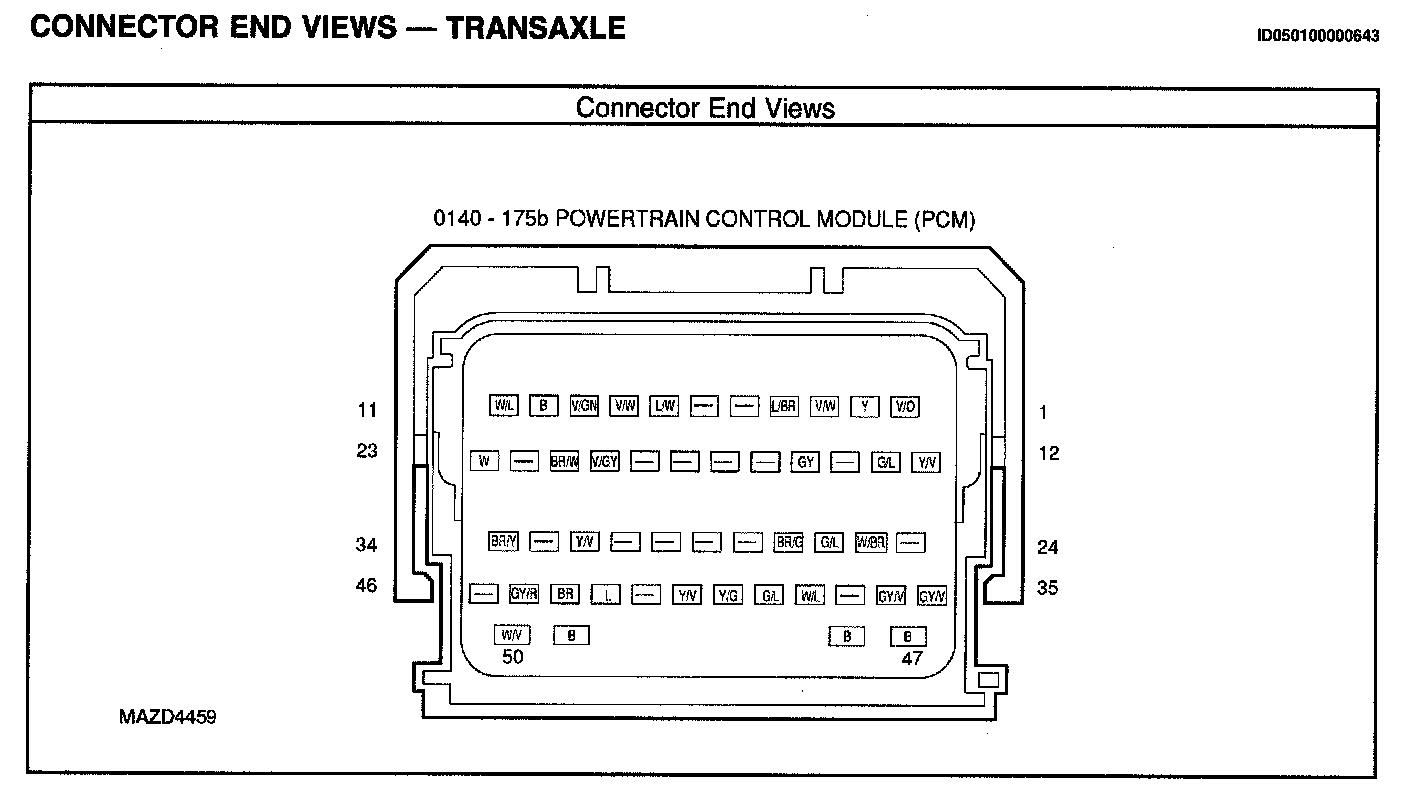

Connector End Views - Transaxle (Part 6):
