Pinpoint Test 4: Transaxle Range (TR) Sensor

PINPOINT TEST 4: TRANSAXLE RANGE (TR) SENSOR

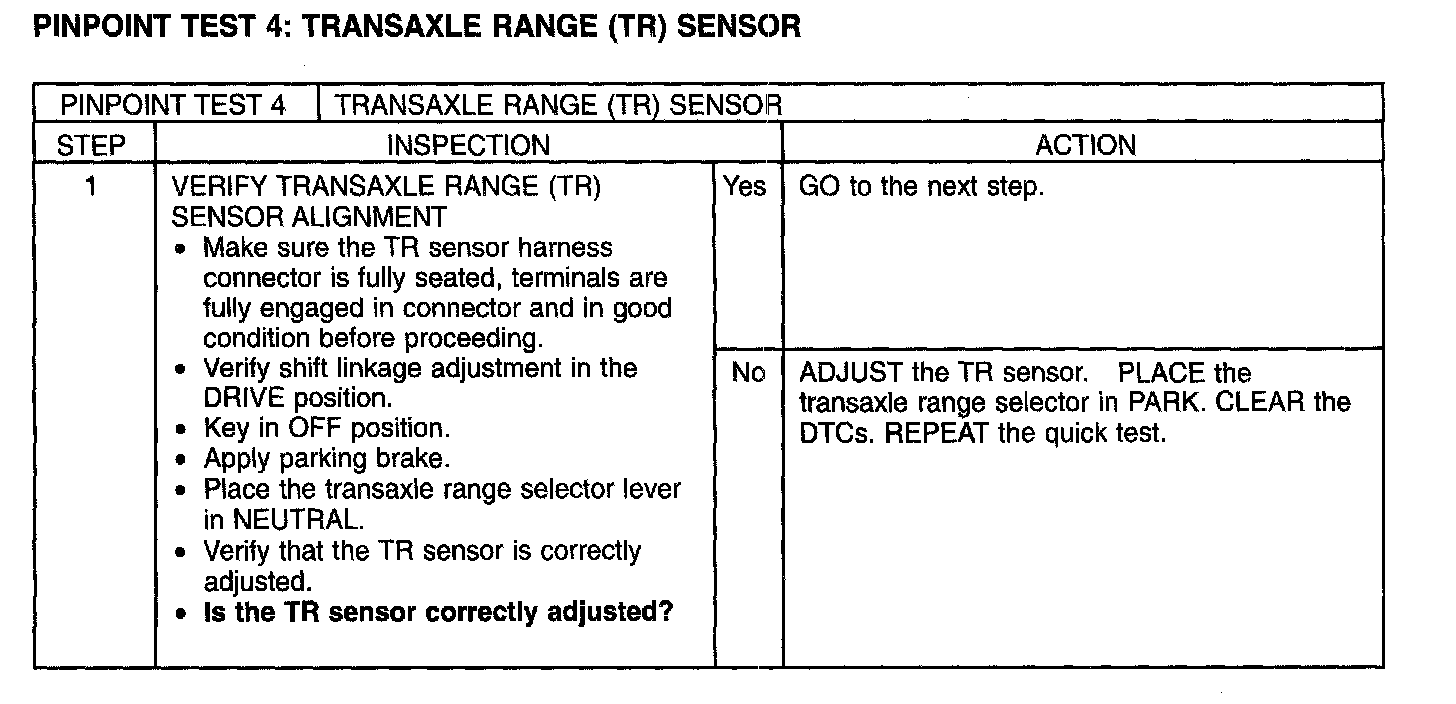

Step 1:

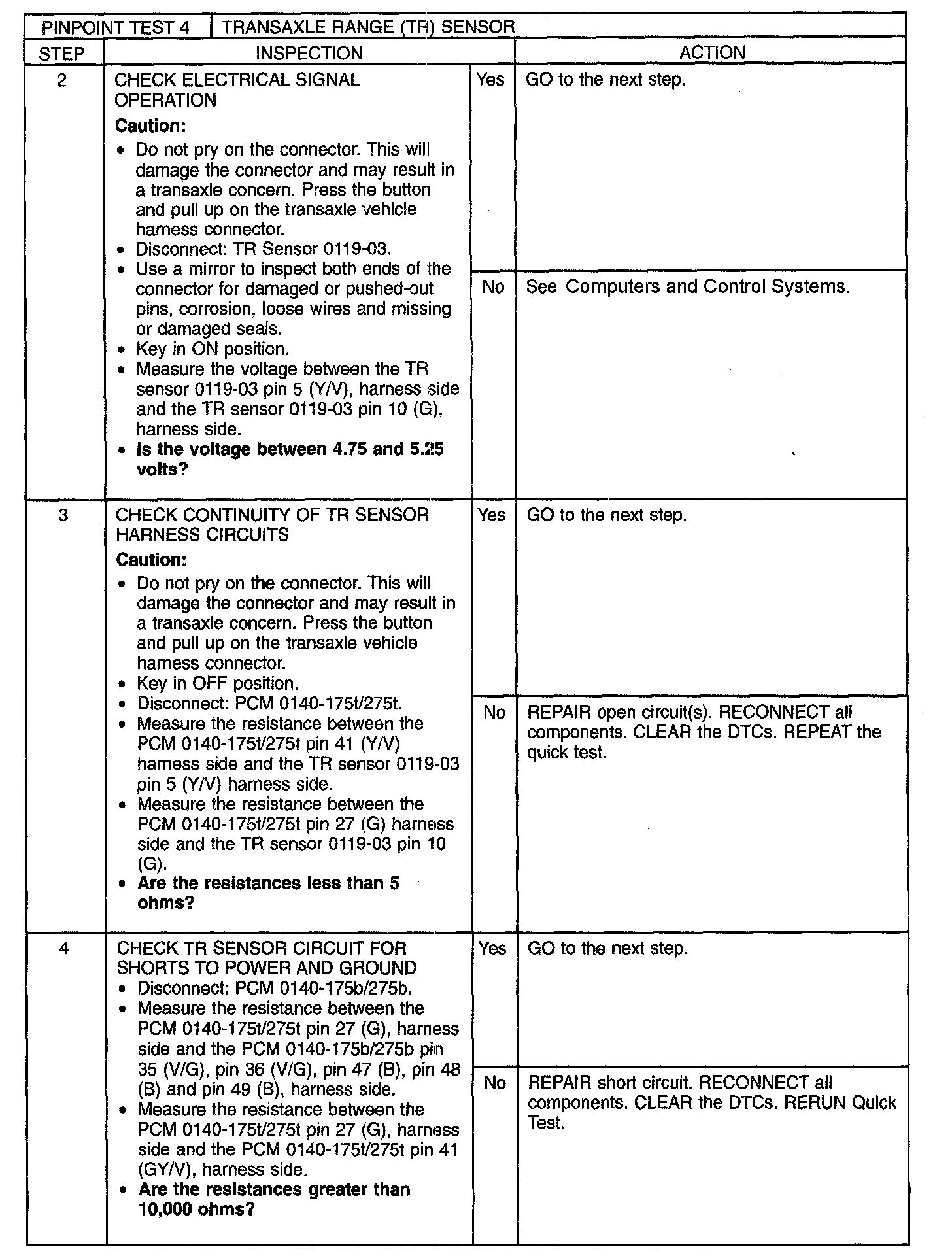

Step 2-Step 4:

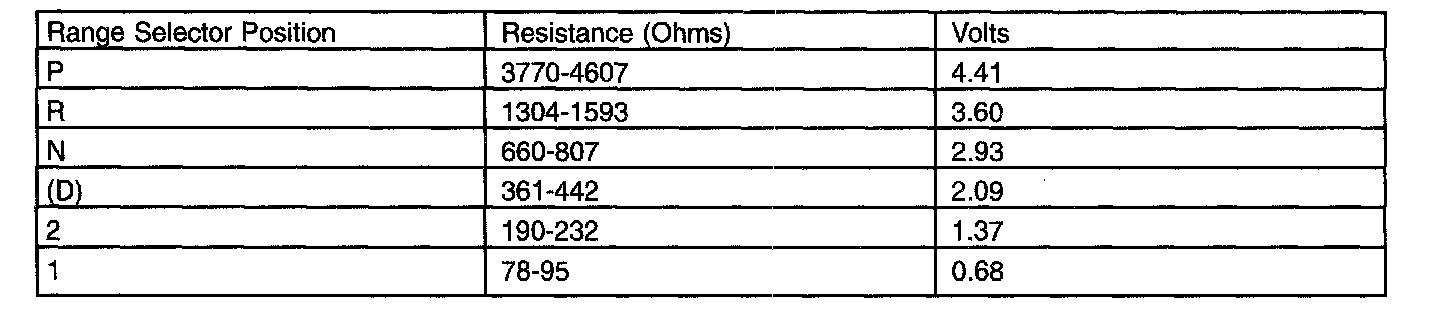

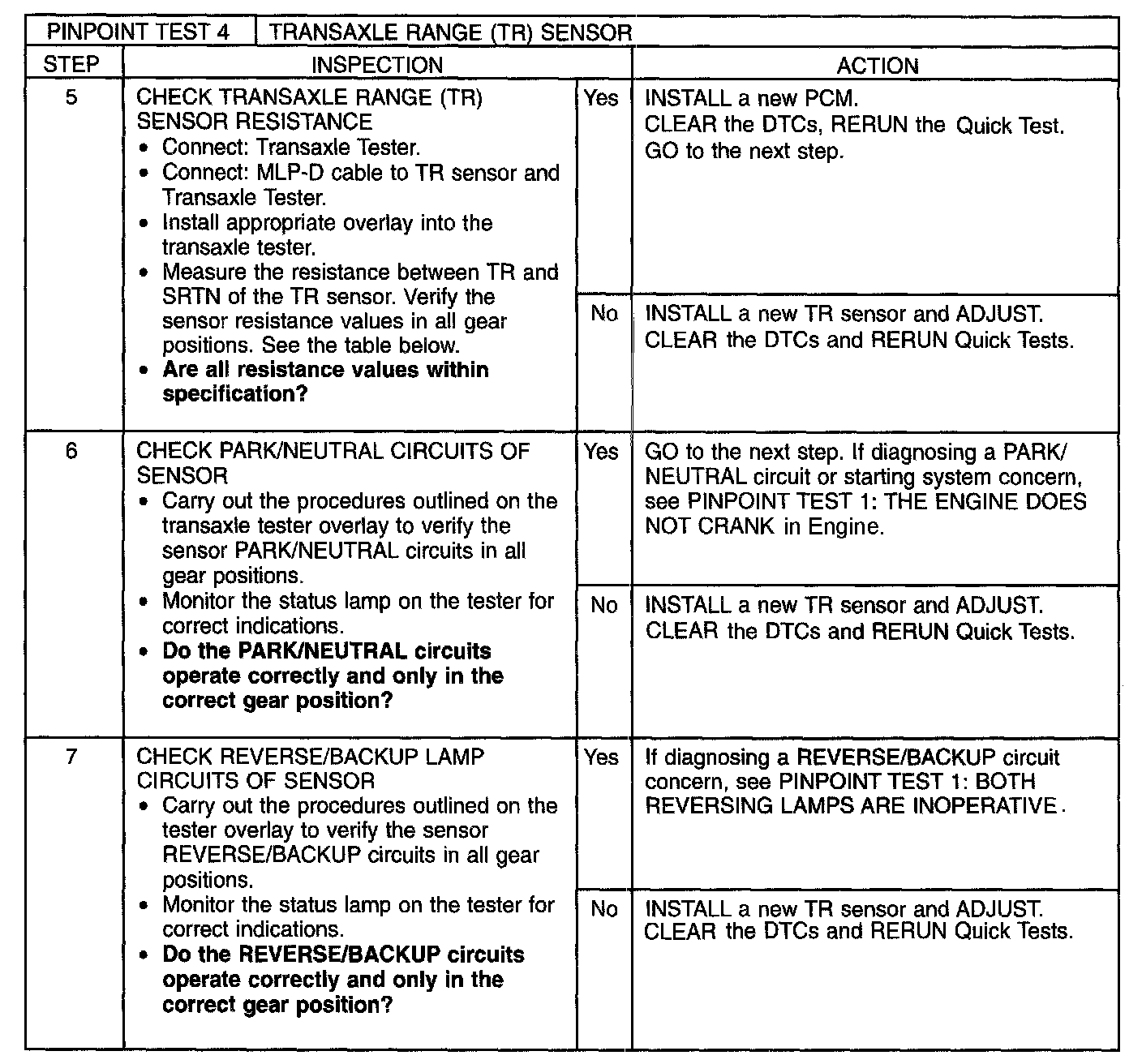

Step 5-Step 7:
