Output Shaft Speed (OSS) Sensor Removal/Installation

OUTPUT SHAFT SPEED (OSS) SENSOR REMOVAL/INSTALLATION





1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING 00-00-23.

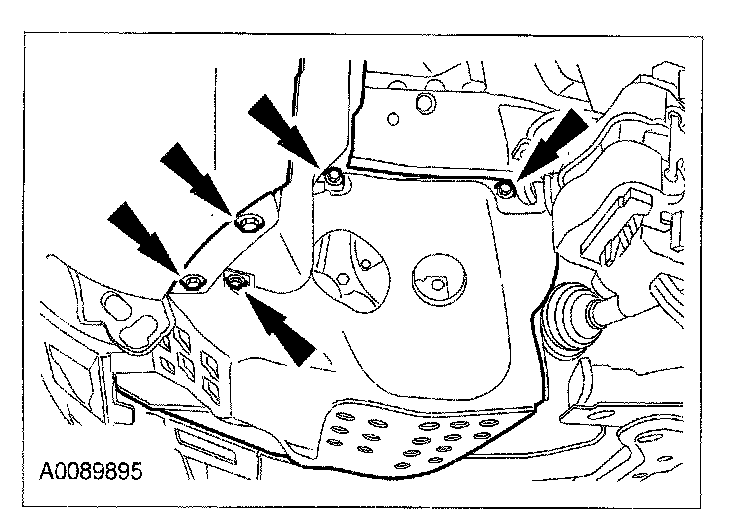

2. Remove the seven retainers and the LH splash shield.





^ To install, tighten to 10 N-m (1.0 kgf-m, 89 in-lbf).

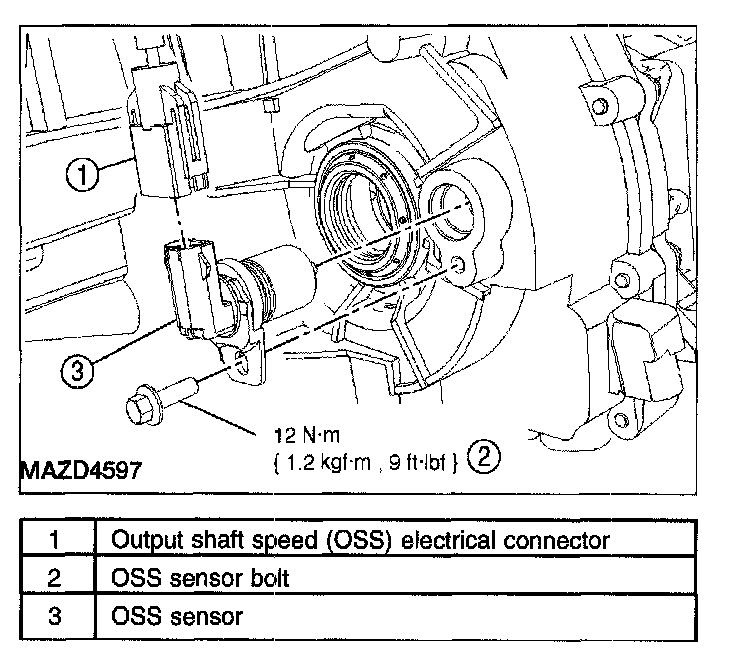

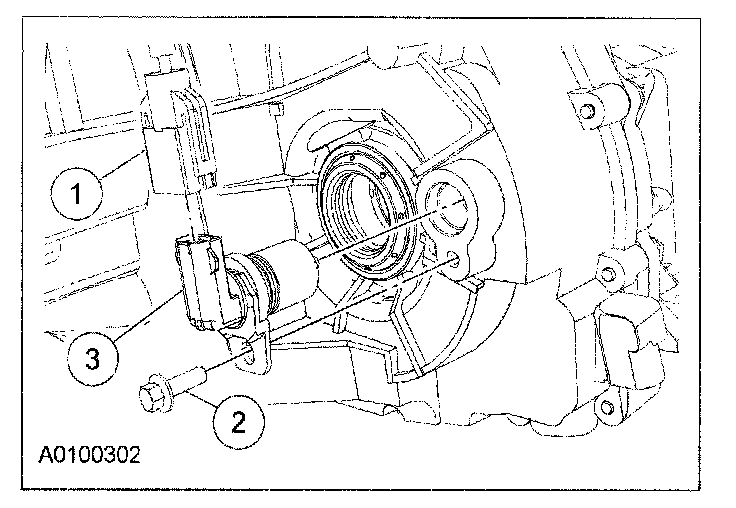

3. Remove the OSS sensor.





(1) Disconnect the OSS electrical connector
(2) Remove the OSS retaining bolt
(3) Remove the OSS
1) To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

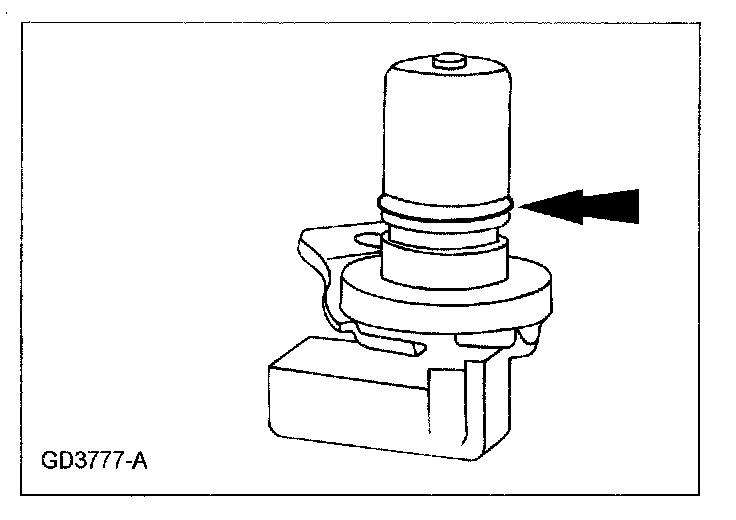

4. Inspect the O-ring seal for nicks or cuts. Install a new O-ring seal as necessary.

Note
^ When installing the sensor, lubricate the O-ring seal with clean transaxle fluid.

5. To install, reverse the removal procedure.
