Shift Linkage: Service and Repair
GEARSHIFT CABLES REMOVAL/INSTALLATIONGearshift Lever Boot (Part 2):
Gearshift Lever Boot (Part 3):

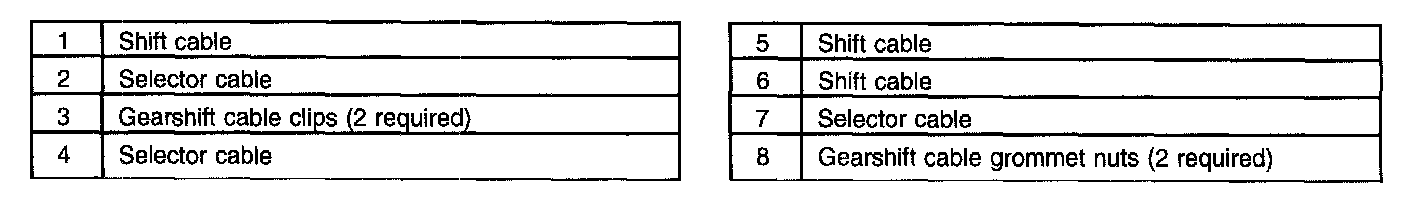

Removal
1. Disconnect the gearshift cables from the transaxle gearshift control assembly.

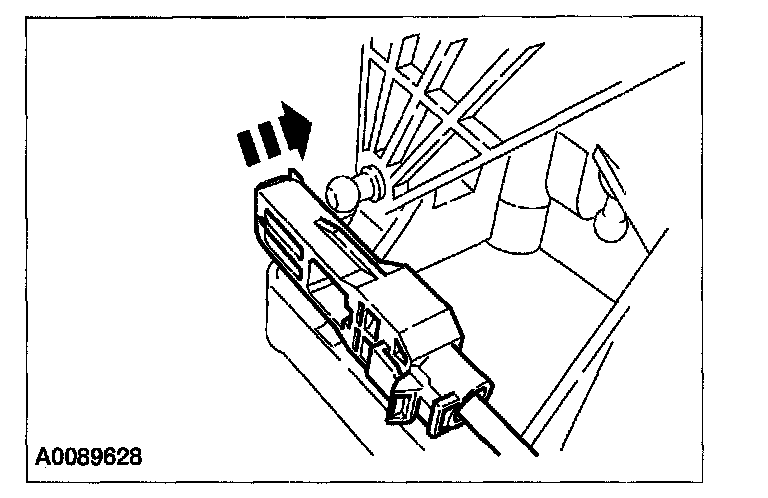

^ Pull the spring clip out of the groove, lift upward and rotate the clip 90 degrees.
Note
^ Carefully disconnect the spring clip from the cable end. It can become unfastened from the cable.

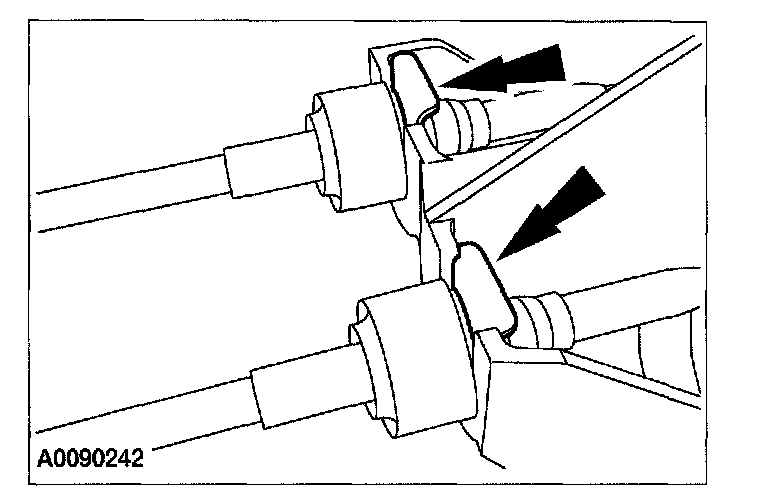

2. Disconnect the gearshift cables from the transaxle bracket.
Note
^ Carefully pry the gearshift cables from the transaxle bracket.
3. Remove the floor console.
4. Remove the restraints control module (RCM).

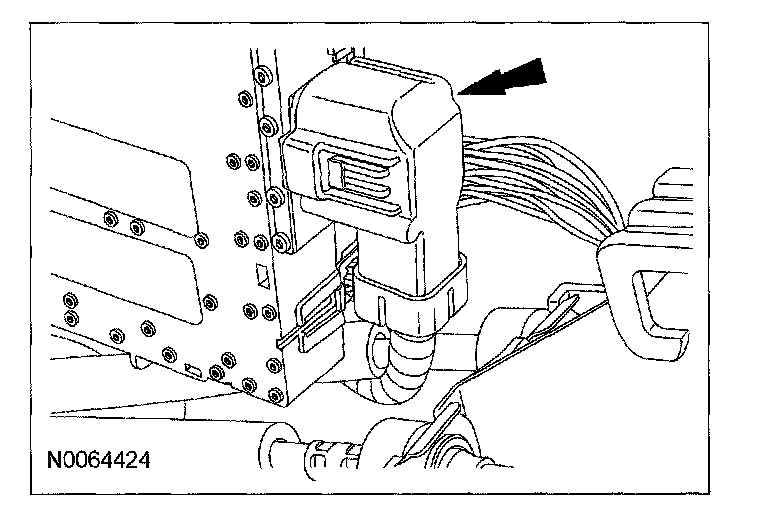

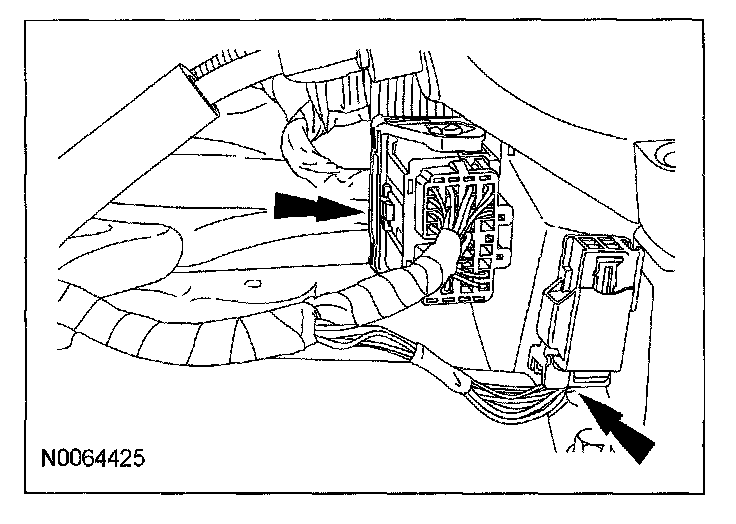

5. Disconnect the smart junction box (SJB) electrical connector and the 2 harness electrical connectors.

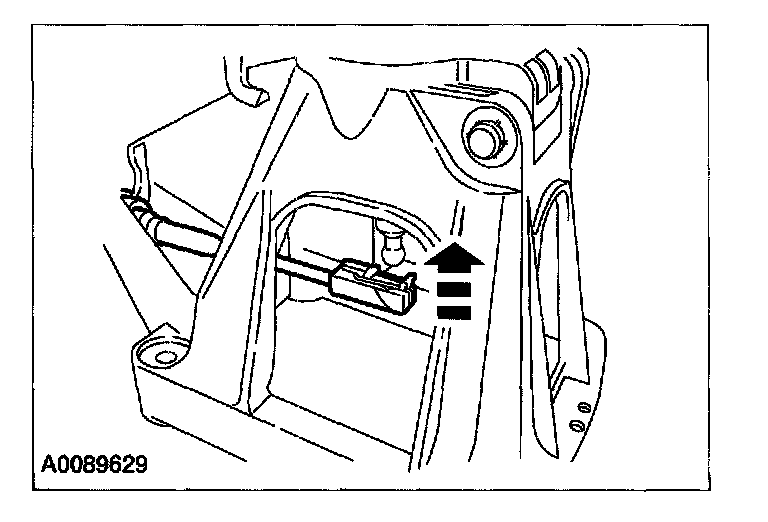

6. Disconnect the gearshift cables from the gear shift lever assembly.
7. Remove the 2 gearshift cable grommet nuts.
8. Remove the gearshift cables.

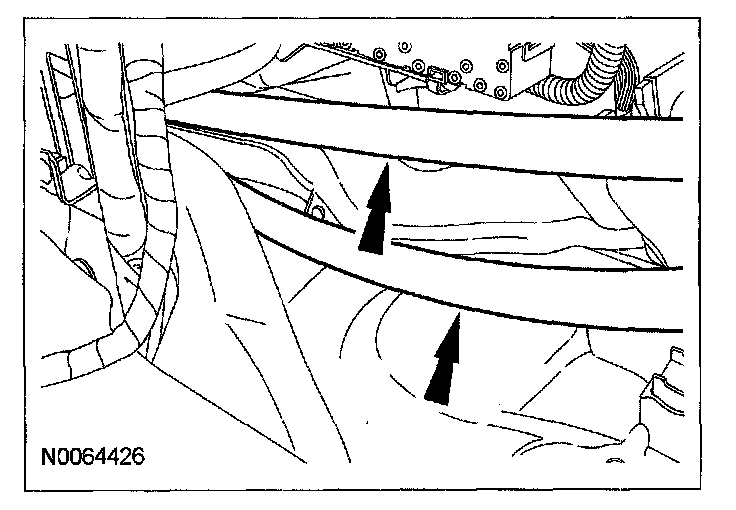

^ Pull the gearshift cables into the vehicle. Using an assistant, carefully lift the LH floor duct, pull the cables under the duct and remove from the vehicle.
Installation
1. Insert the gearshift cables through the dash panel.
Caution
^ When inserting the transaxle shift cable assembly through the dash panel, make sure the arrow on the grommet is pointing down.
2. Connect the selector cable.
3. Connect the shift cable.
4. Install the 2 gearshift cable grommet nuts.
^ Tighten to 10 N-m (1.0 kgf-m, 89 in-lbf).
5. Install the 2 gearshift cable clips.
Caution
^ Make sure the clips are set completely within the cable adapter groove and fully seated.
6. Connect the gearshift cables to the transaxle gearshift control assembly.
7. Connect the SJB electrical connector and the 2 harness electrical connectors.
8. Adjust the gearshift cables.
9. Install the floor console.
10. Install the RCM.
