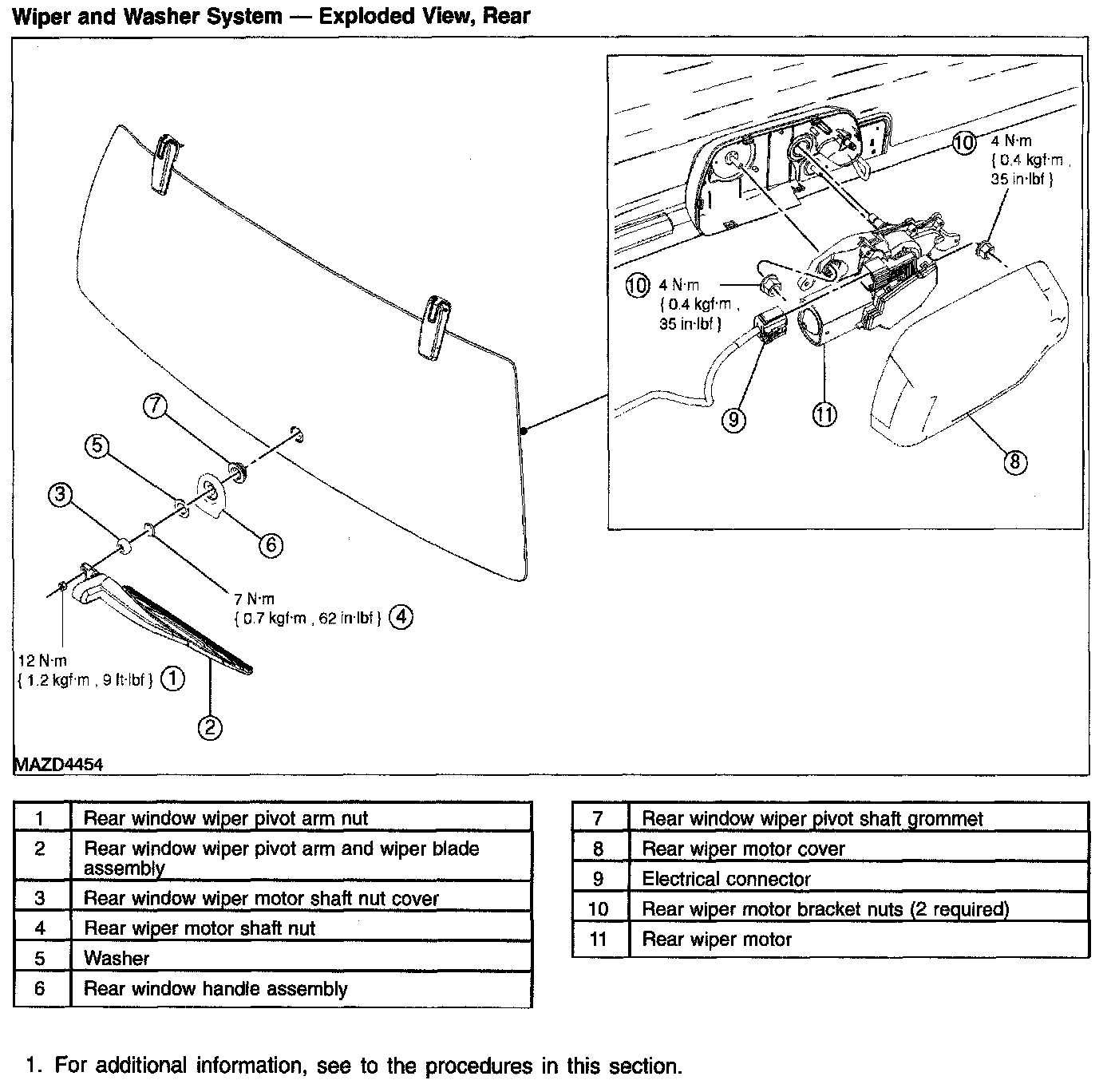

Wiper And Washer System-Exploded View, Rear
Wiper And Washer System-Exploded View, Rear
Wiper And Washer System-Exploded View, Rear:
