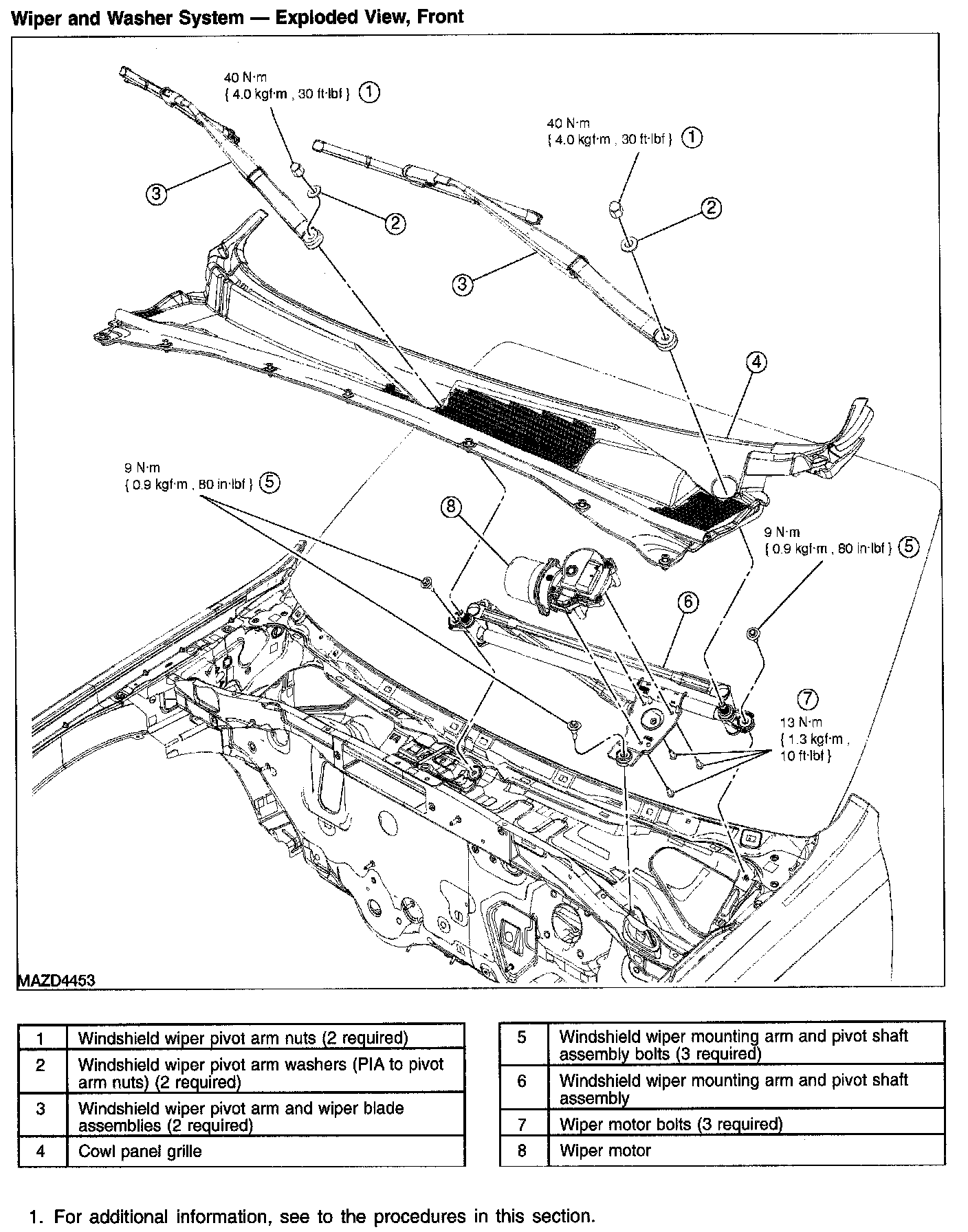

Wiper and Washer System - Exploded View, Front
Wiper and Washer System - Exploded View, Front
Wiper And Washer System-Exploded View, Front:
