Connector End Views-Wiper/Washer Systems
Connector End Views-Wiper/Washer Systems

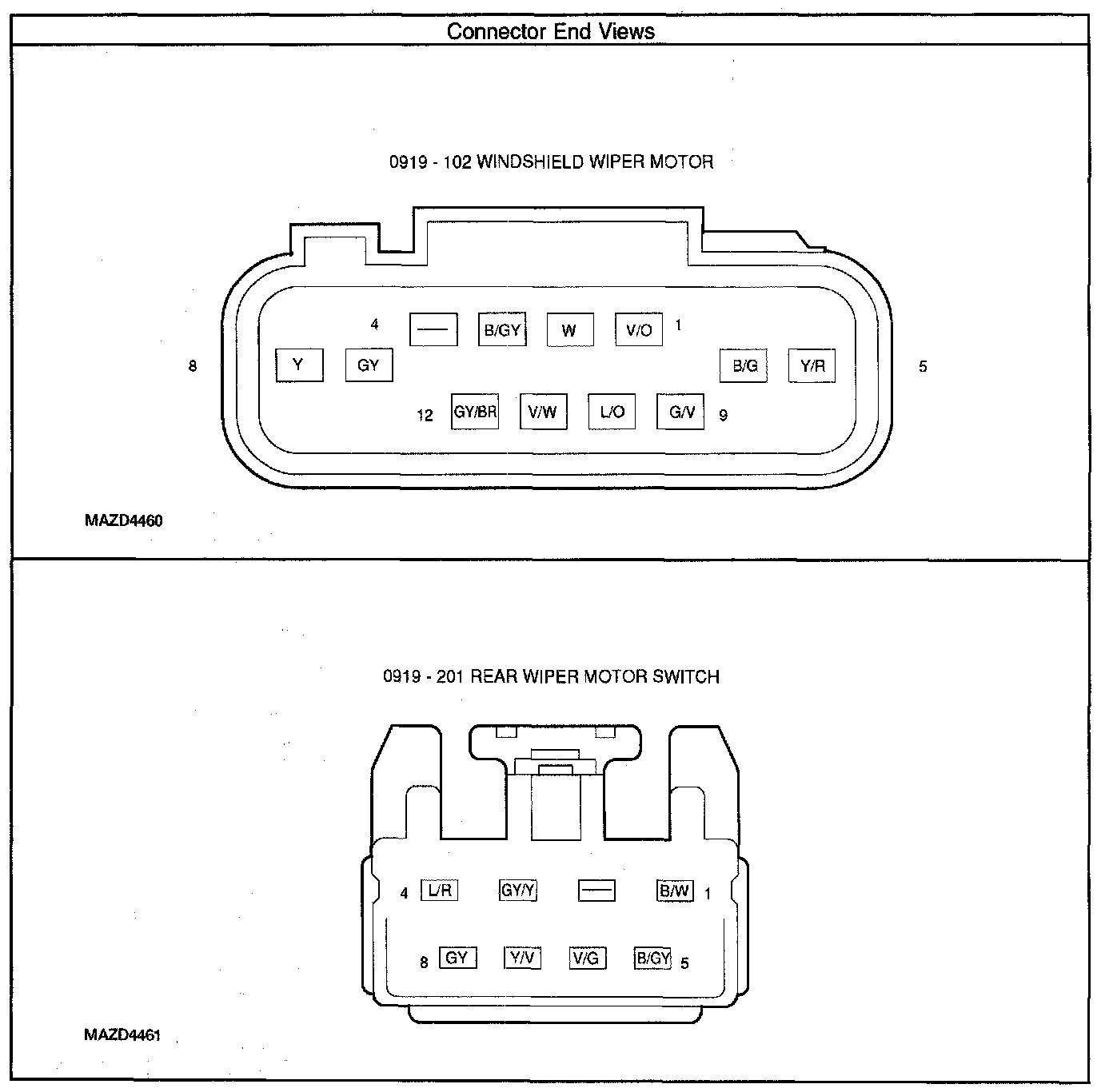

Connector End Views-Wiper/Washer Systems (Part 1):

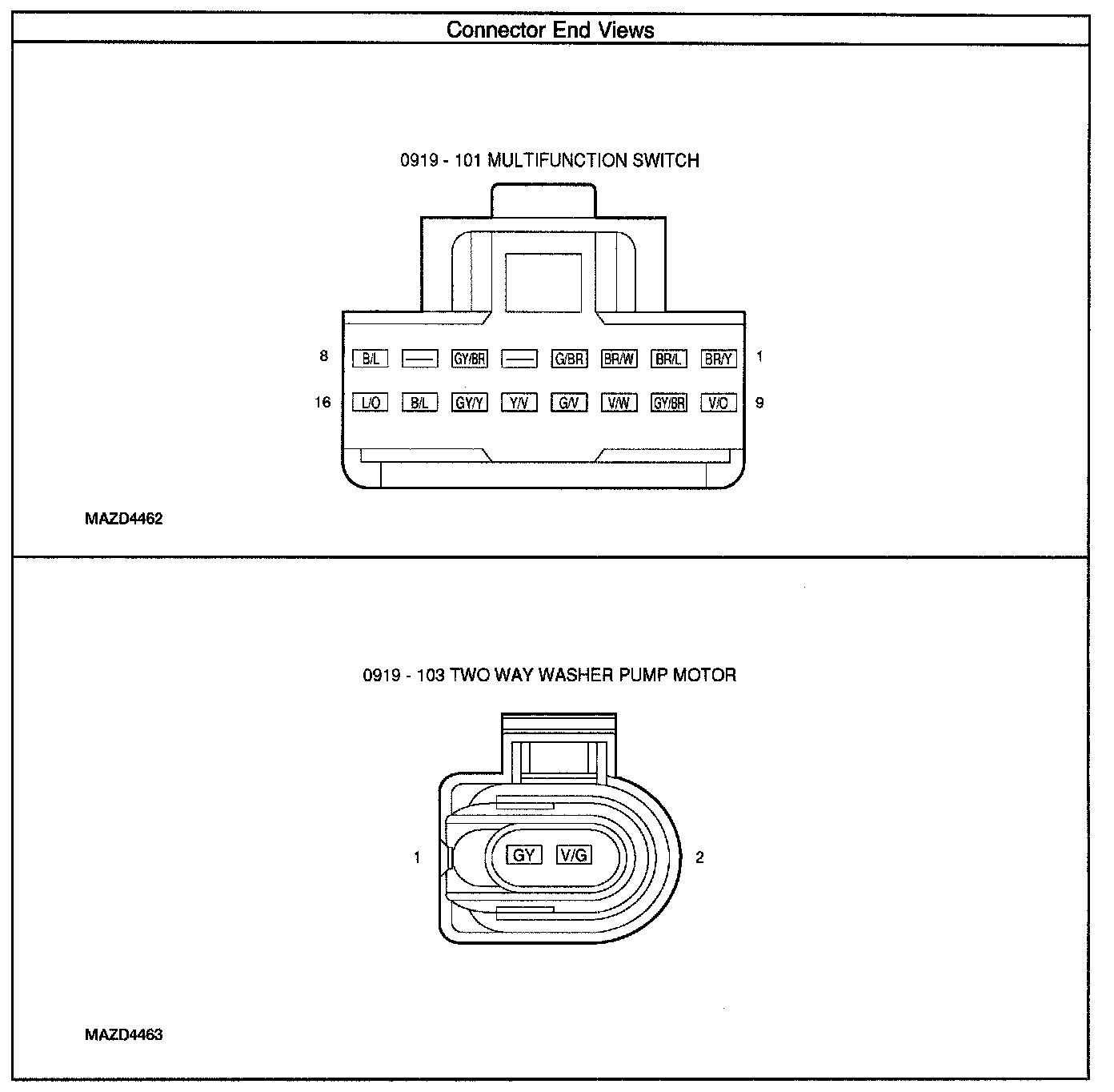

Connector End Views-Wiper/Washer Systems (Part 2):

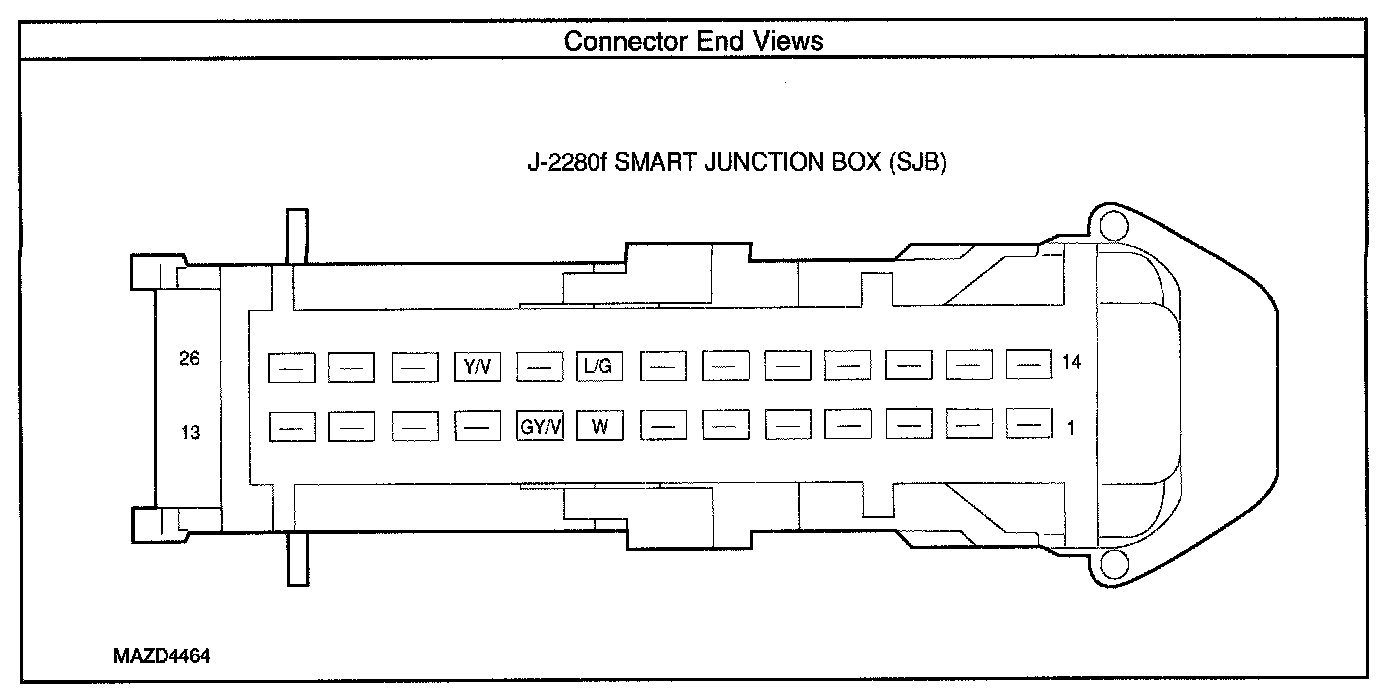

Connector End Views-Wiper/Washer Systems (Part 3):
