Wiper Pivot Arm - Front Removal/Installation

WIPER PIVOT ARM - FRONT REMOVAL/INSTALLATION

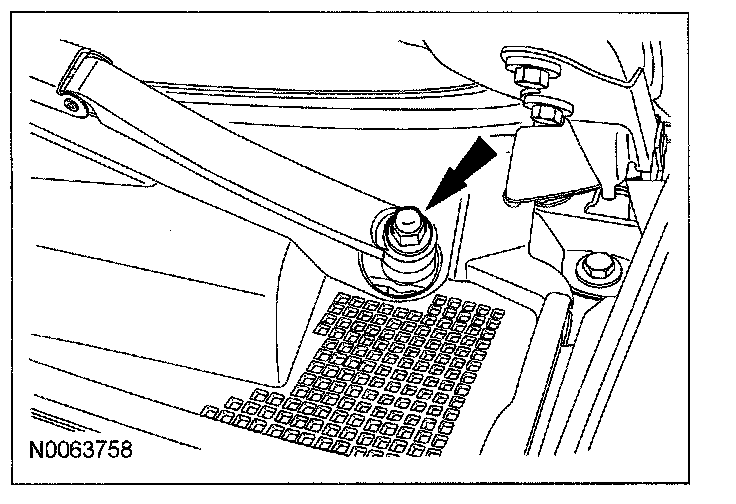

1. Remove the 2 wiper pivot arm nuts.
- To install, tighten to 40 N.m (4.0 kgf.m, 30 ft.lbf).

NOTE: LH shown, RH similar.

2. Remove the LH and RH wiper pivot arms.
3. To install, reverse the removal procedure.
- Adjust the wiper pivot arms. See WINDSHIELD WIPER BLADE AND PIVOT ARM ADJUSTMENT.
