Windshield Wiper Motor Removal/Installation

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

NOTE: A new wiper motor assembly comes with the linkage arm installed.

1. Remove the wiper mounting arm and pivot shaft.




2. Separate the wiper motor linkage arm from the wiper mounting arm and pivot shaft assembly.

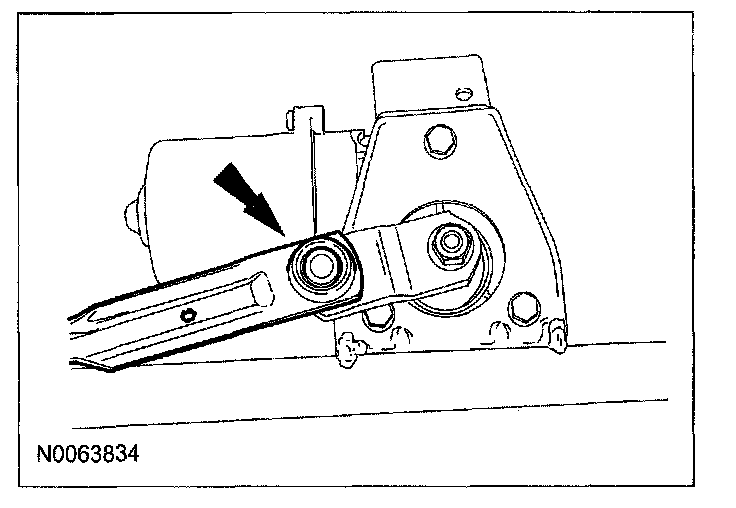

- Use a suitable tool at the location shown to separate the wiper linkage arm from the wiper mounting arm and pivot shaft assembly.

CAUTION: Do not remove the wiper motor linkage arm from the wiper motor assembly. If the arm is removed, the wiper arms may not park in the correct location.

3. Remove the 3 bolts and the wiper motor.
- To install, tighten to 13 N.m (1.3 kgf.m, 10 ft.lbf).

4. To install, reverse the removal procedure.
