Front Toe Adjustment

FRONT TOE ADJUSTMENT

1. Start the engine and center the steering wheel.

2. Turn the engine off. Hold the steering wheel in the straight-ahead position using a suitable holding device.

3. Check the toe settings following the equipment manufacturer's instructions.

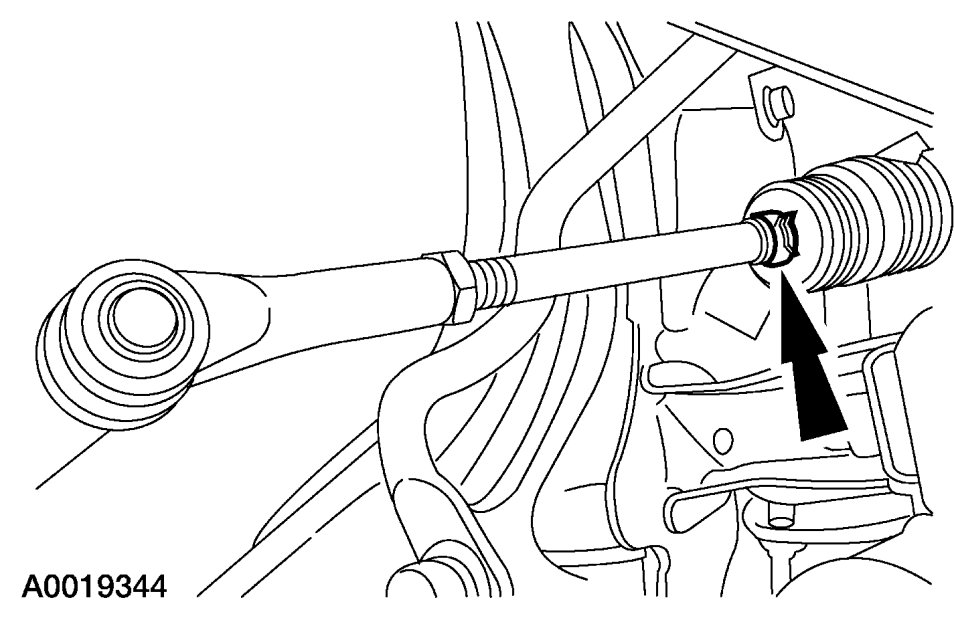

4. Remove the steering gear bellows clamp(s).


NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod is rotated.






5. Loosen the tie-rod end jam nut(s).

- Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.






6. Rotate the front wheel spindle tie-rods to increase or decrease the front toe.






7. Tighten the tie-rod end jam nut(s) to 40 Nm {4.0 kgf-m, 30 ft-lbf}.

CAUTION: Hold the tie-rod end stationary with a wrench while tightening the nut, or damage to the boot can occur.

NOTE: Do not disturb the toe settings while tightening the nut(s).






8. Install the steering gear bellows clamp(s).

9. Check the toe settings. Follow the equipment manufacturer's instructions.
