Fuel Filter: Locations



-

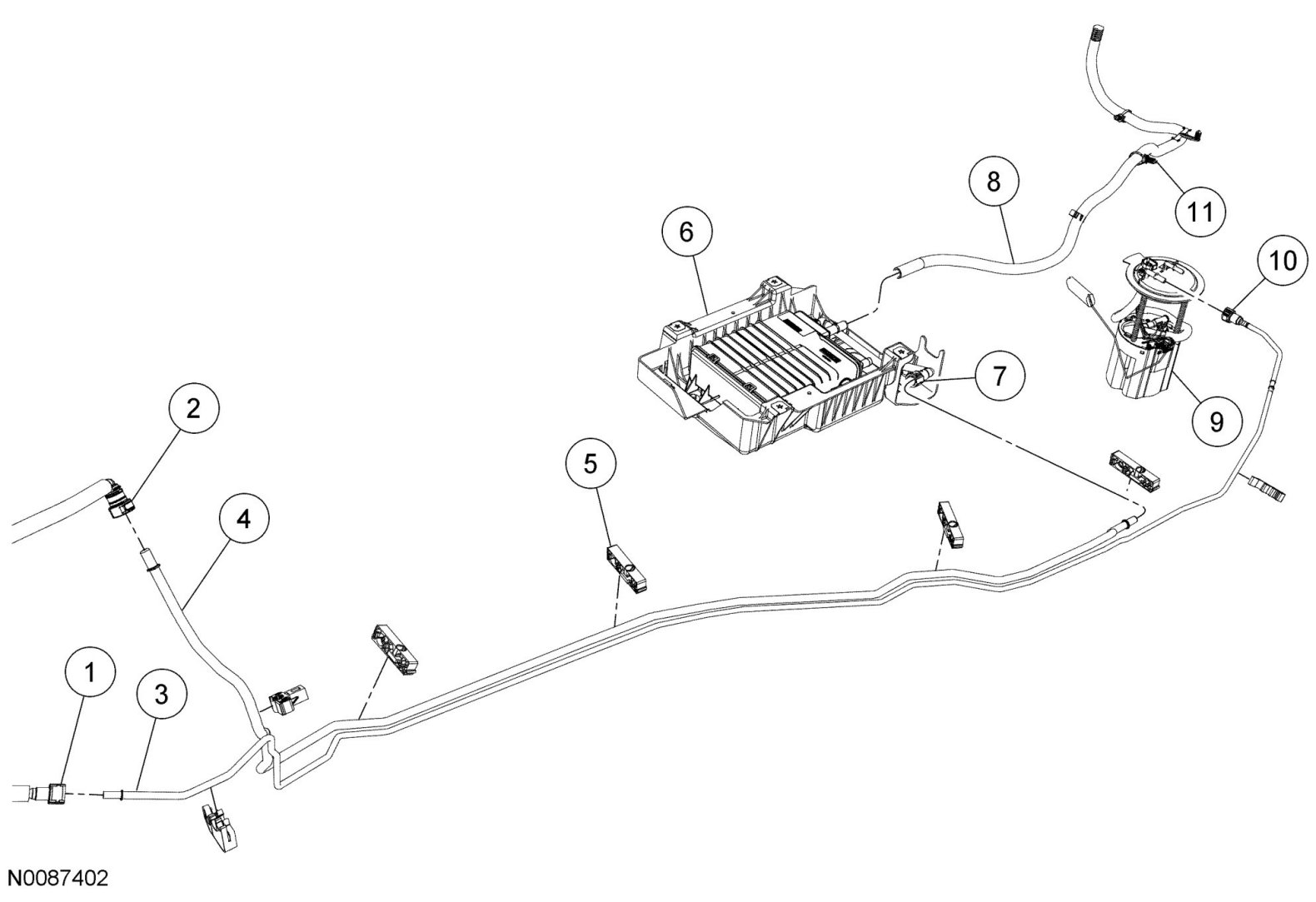

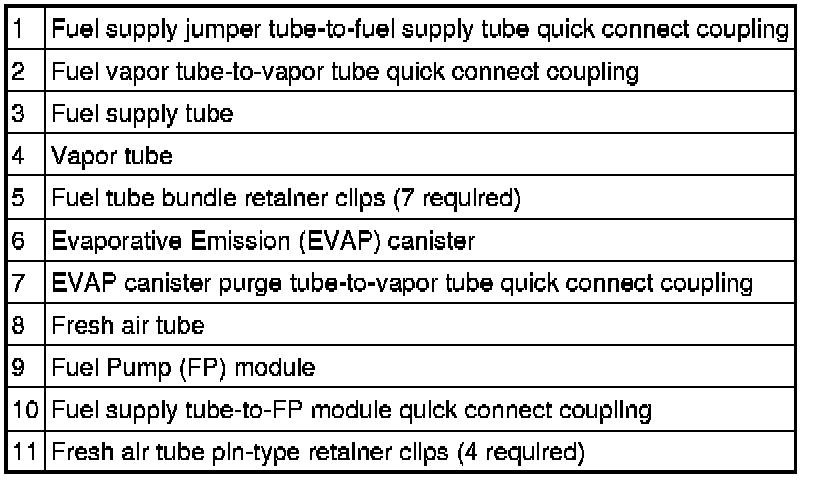

FUEL LINES AND FUEL FILTER EXPLODED VIEW - HYBRID










1. For additional information, see the procedures.
