Identification Codes

IDENTIFICATION CODES

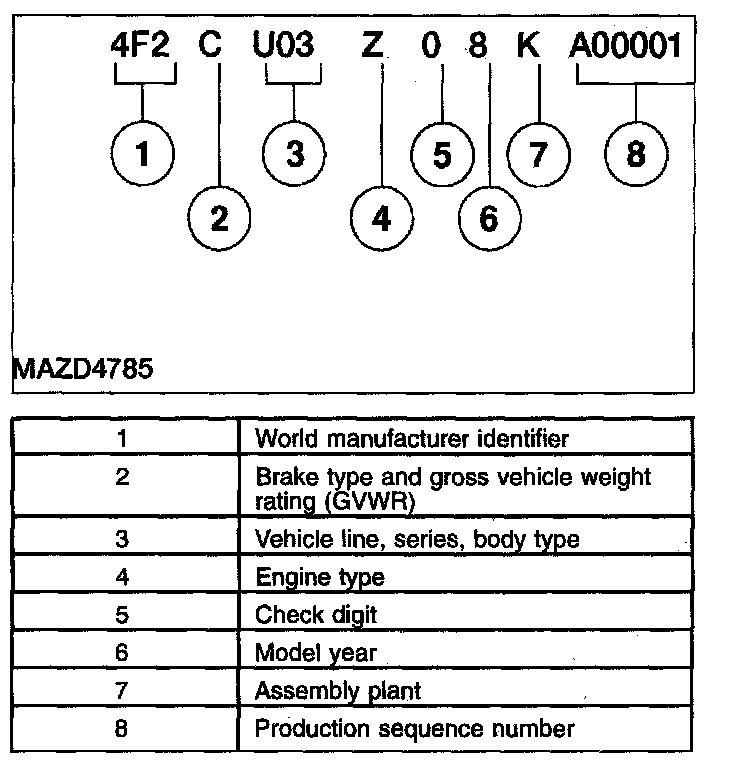

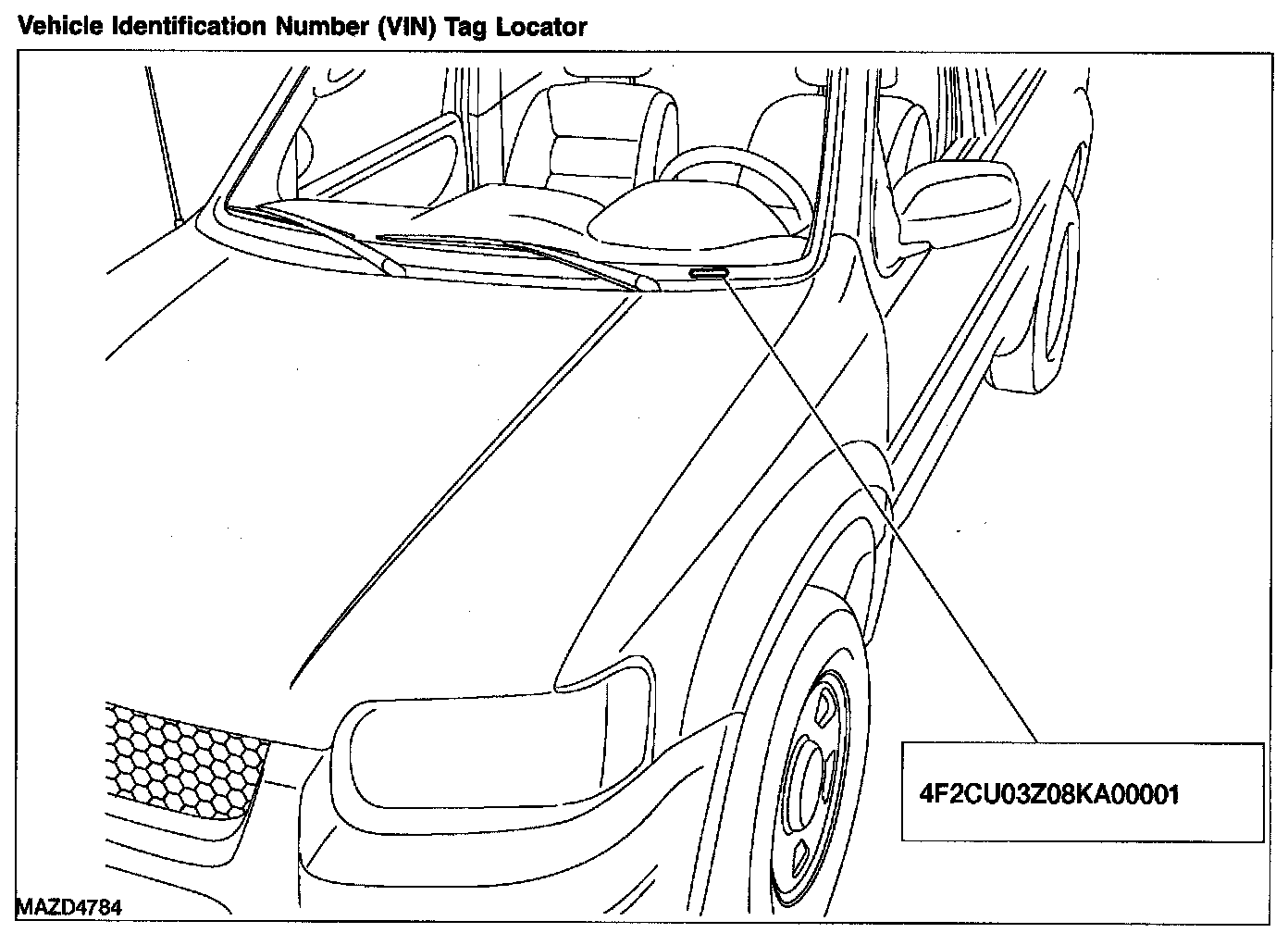

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted on the instrument panel, top upper left of the dash. The VIN is also found on the vehicle certification (VC) label. If the VIN plate requires replacement, an authorized dealer must contact their respective regional office.

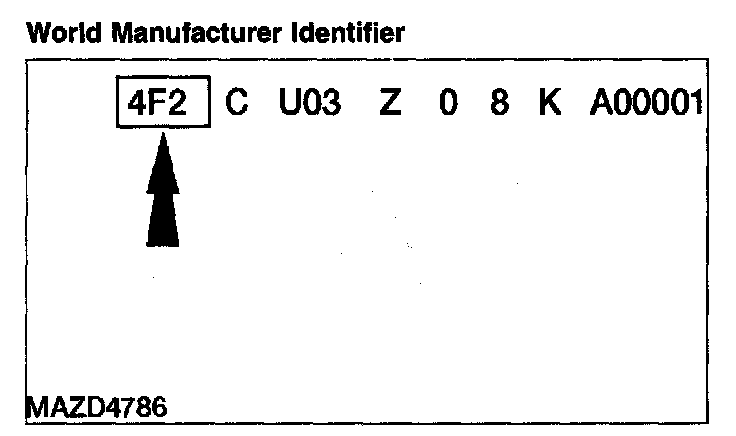

The first 3 vehicle identification number (VIN) positions are the world manufacturer identifier.




- 4F2 - Mazda Motor Company, USA, multipurpose vehicle (MPV)

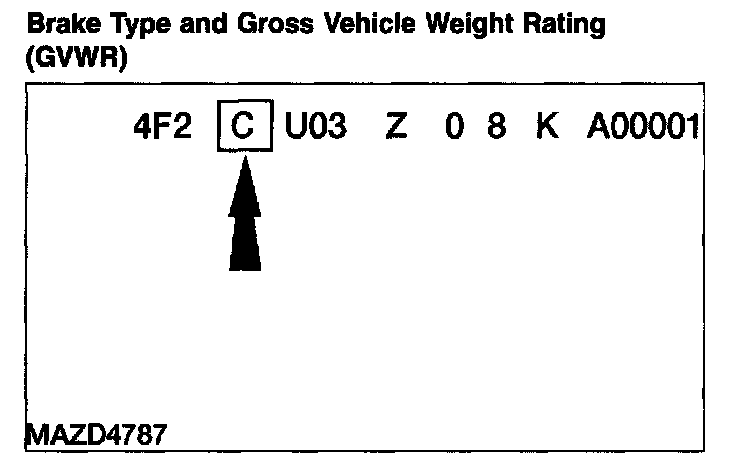

The fourth VIN position is the vehicle brake type and gross vehicle weight rating (GVWR) code, all vehicles use hydraulic brakes and driver and front passenger air bags.




- C - 4,001-5,000 pounds GVWR with side impact air curtains
- Y - 4,001-5,000 pounds GVWR without side impact air curtains

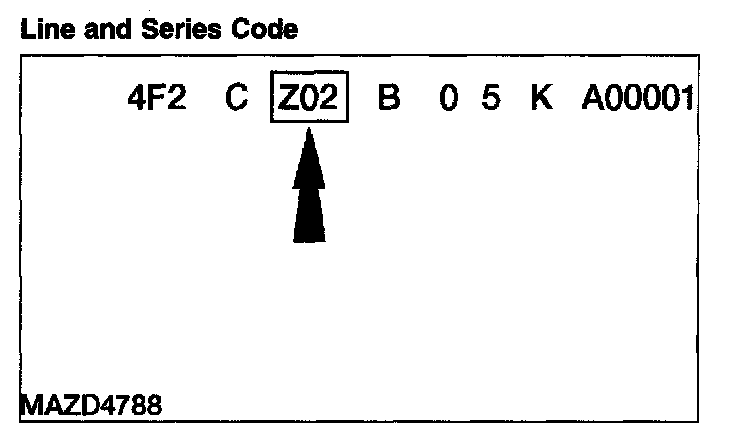

Positions 5 through 7 indicate vehicle line and series.




- Z02 - Two-wheel drive, DX
- Z92 - Four-wheel drive, DX
- Z04 - Two-wheel drive, LX
- Z94 - Four-wheel drive, LX
- Z06 - Two-wheel drive, ES
- Z96 - Four-wheel drive, ES

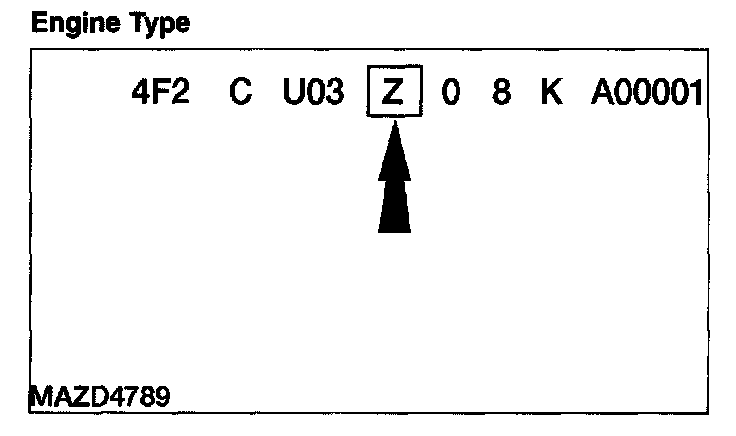

The eighth VIN position is the engine displacement and number of cylinders code.
- Z - 2.3L, 4-valve, in-line 4 cylinder
- 1 - 3.0L Modular, 6-cylinder, EFI, DOHC

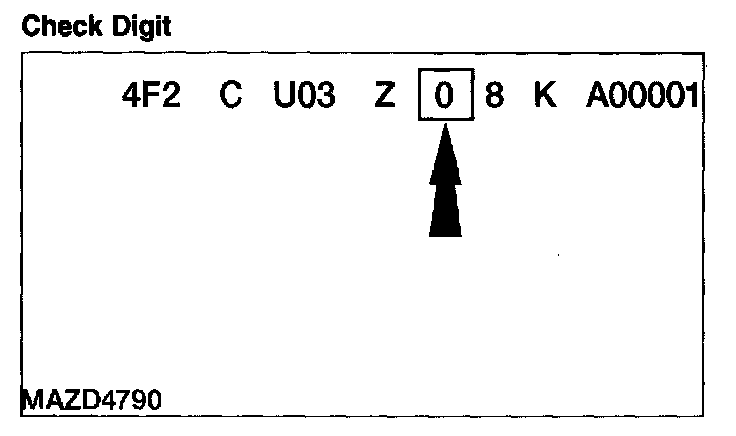

The ninth VIN position is a government-assigned, computer-generated check digit code.

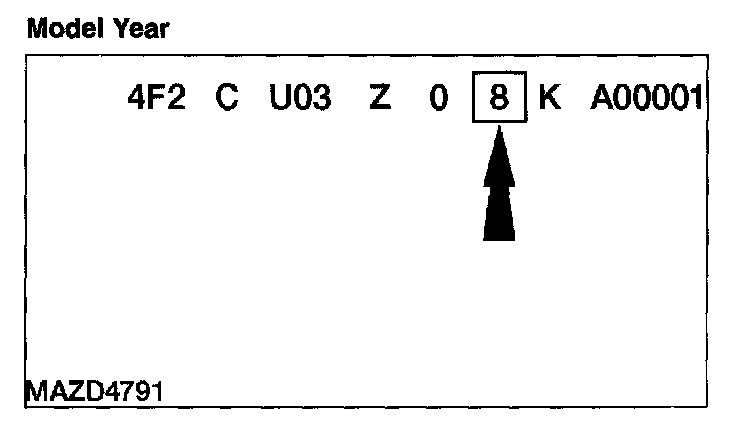

The tenth VIN position is the model year code.
- 8 - 2008

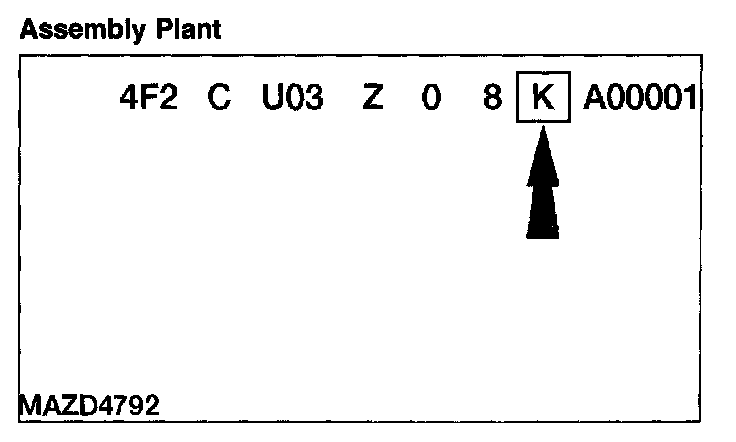

The eleventh VIN position is the assembly plant code.
- K - Kansas City (Claycomo, Missouri)

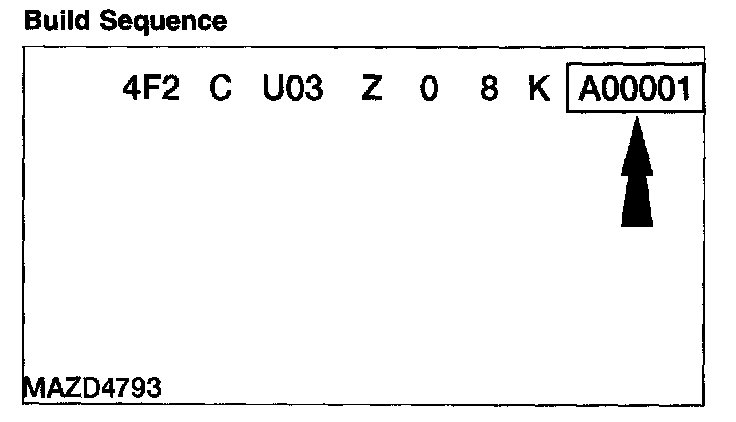

The last six VIN positions are the production sequence number.
- Tribute - M00001-M99999
