Keyless Entry: Testing and Inspection

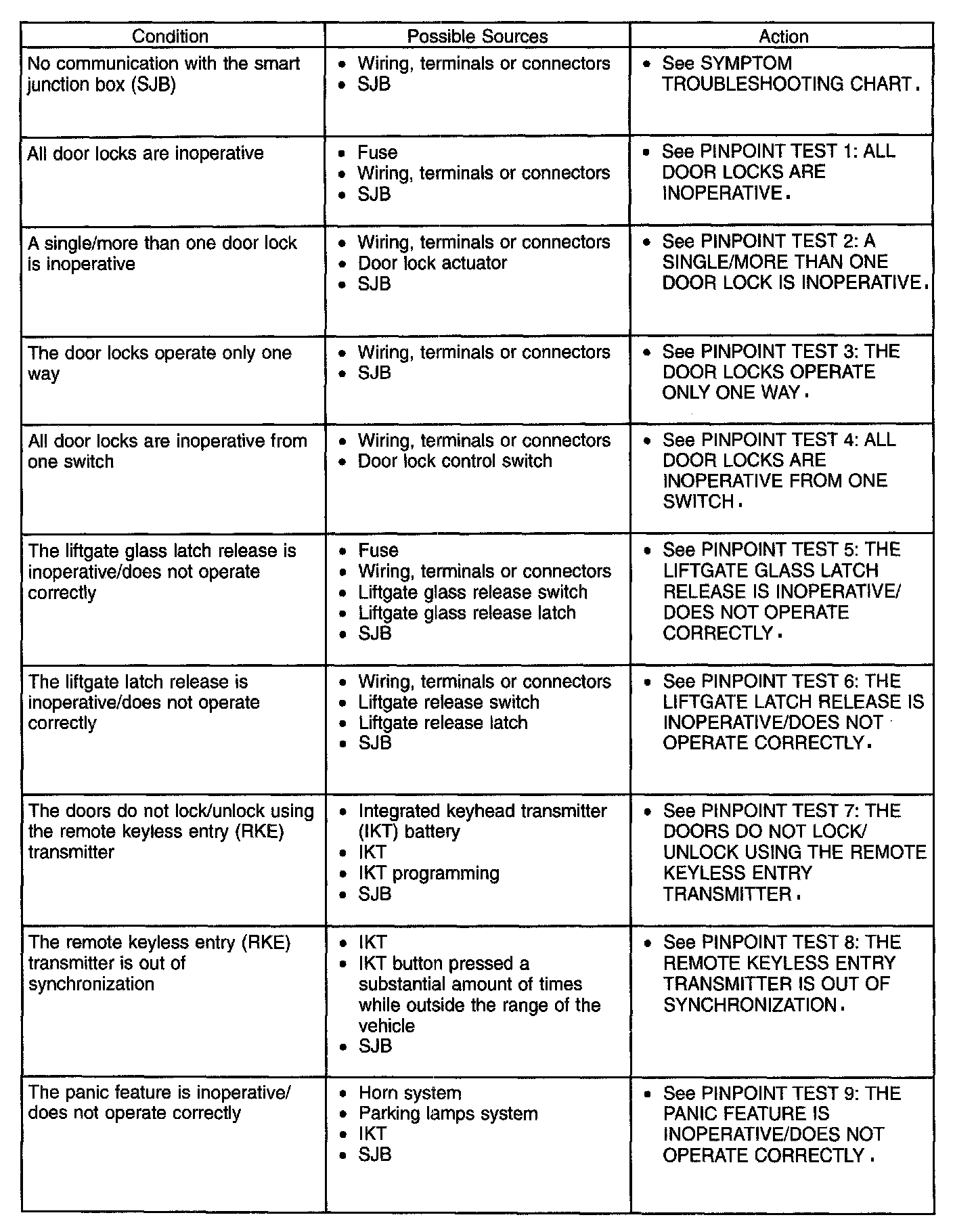

Symptom Troubleshooting Chart-Power Door Locks/Keyless Entry Remote Transmitter (Part 1):

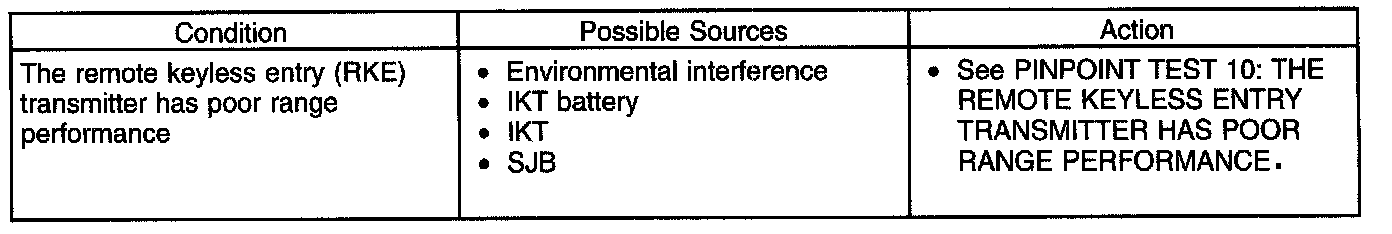

Symptom Troubleshooting Chart-Power Door Locks/Keyless Entry Remote Transmitter (Part 2):
