Connector End Views - Speed Control

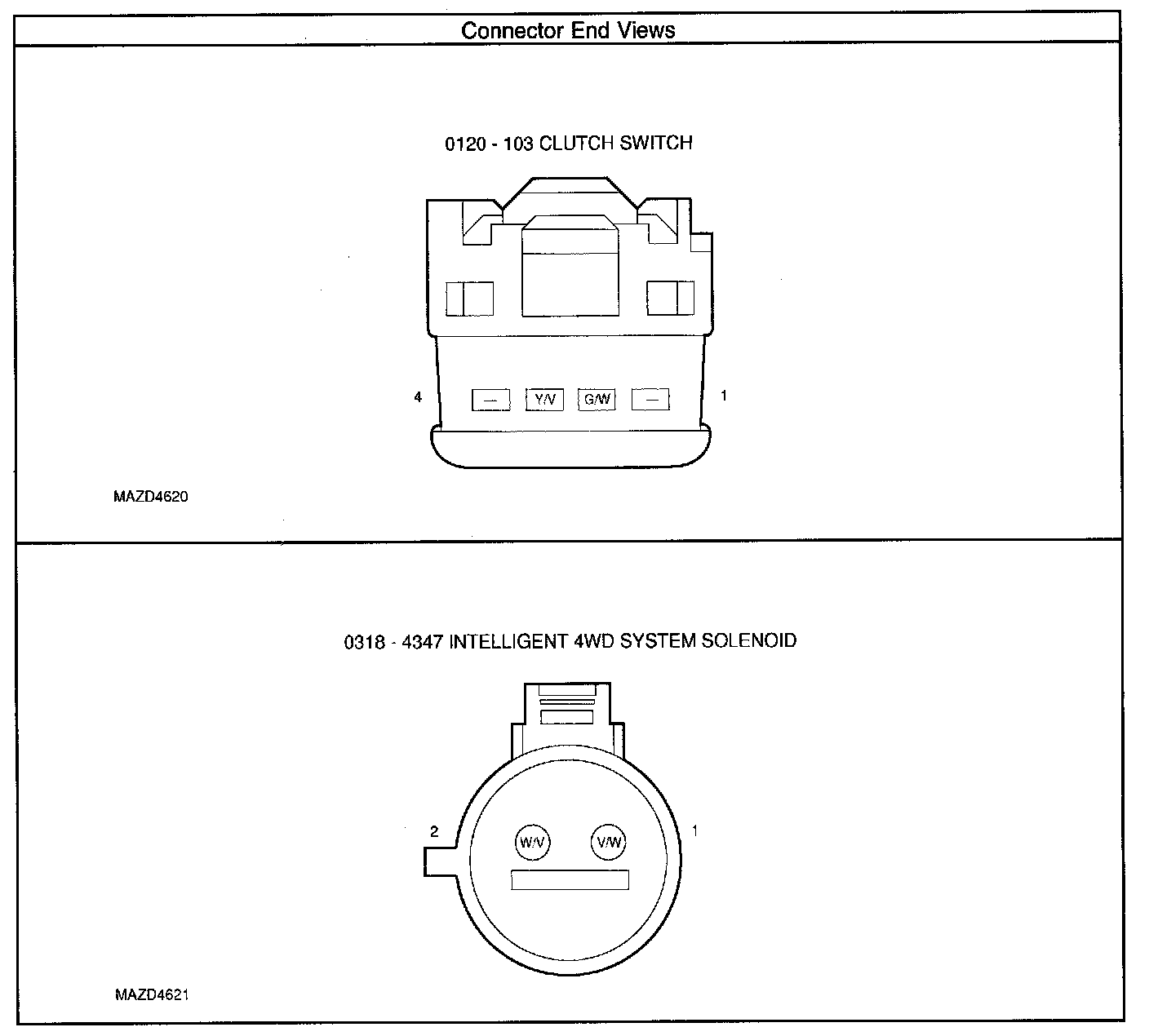

Connector End Views-Speed Control (Part 1):

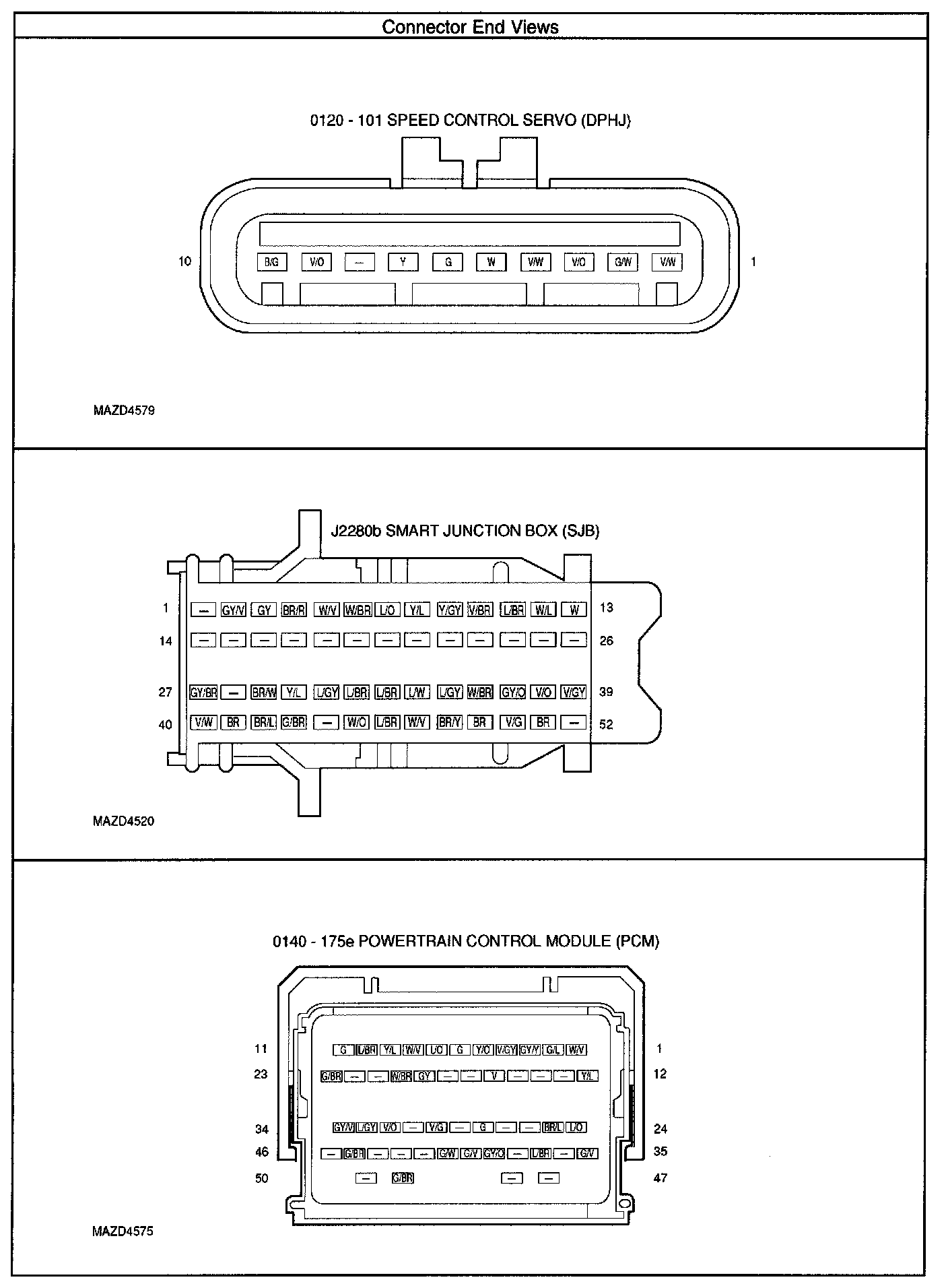

Connector End Views-Speed Control (Part 2):

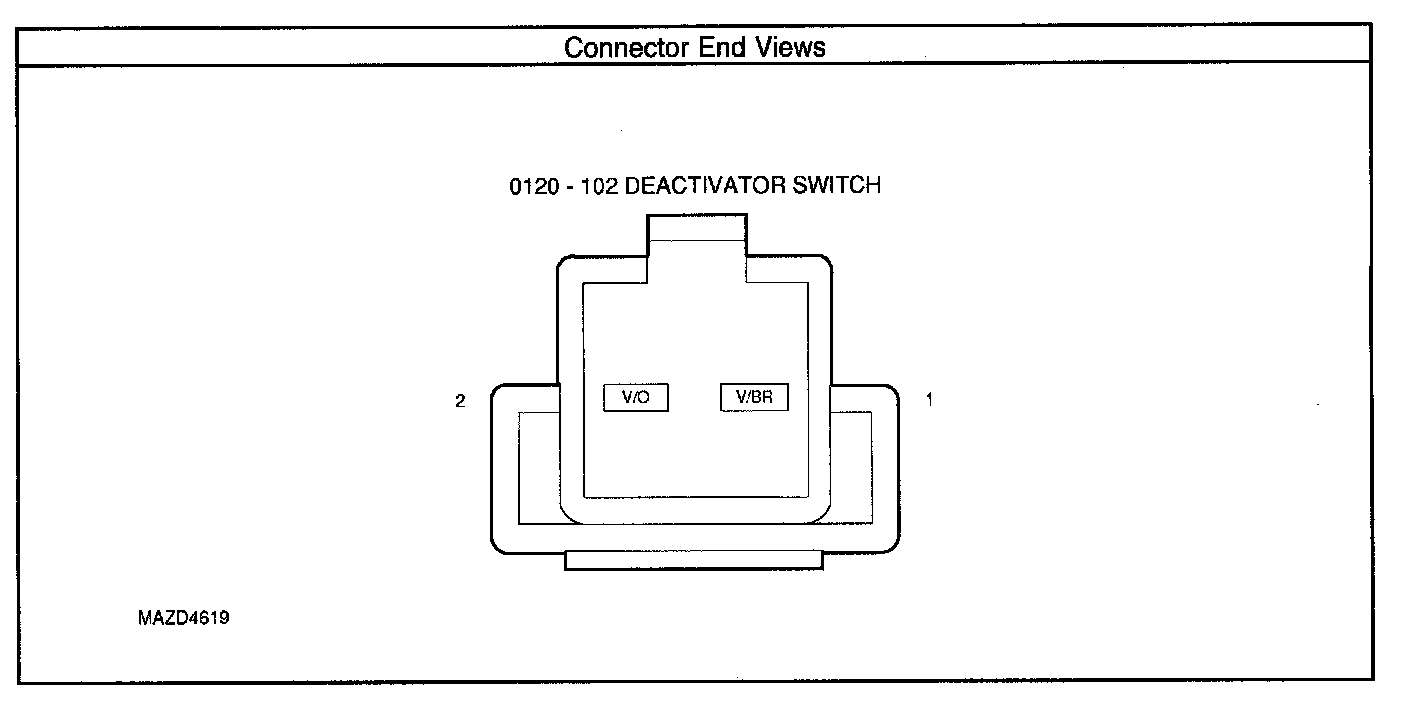

Connector End Views-Speed Control (Part 3):
