Fuel Delivery and Air Induction
>>
Fuel Injector
Fuel Injector
FUEL RAIL
AND
FUEL INJECTOR
- 3.0L (4V) EXPLODED VIEW

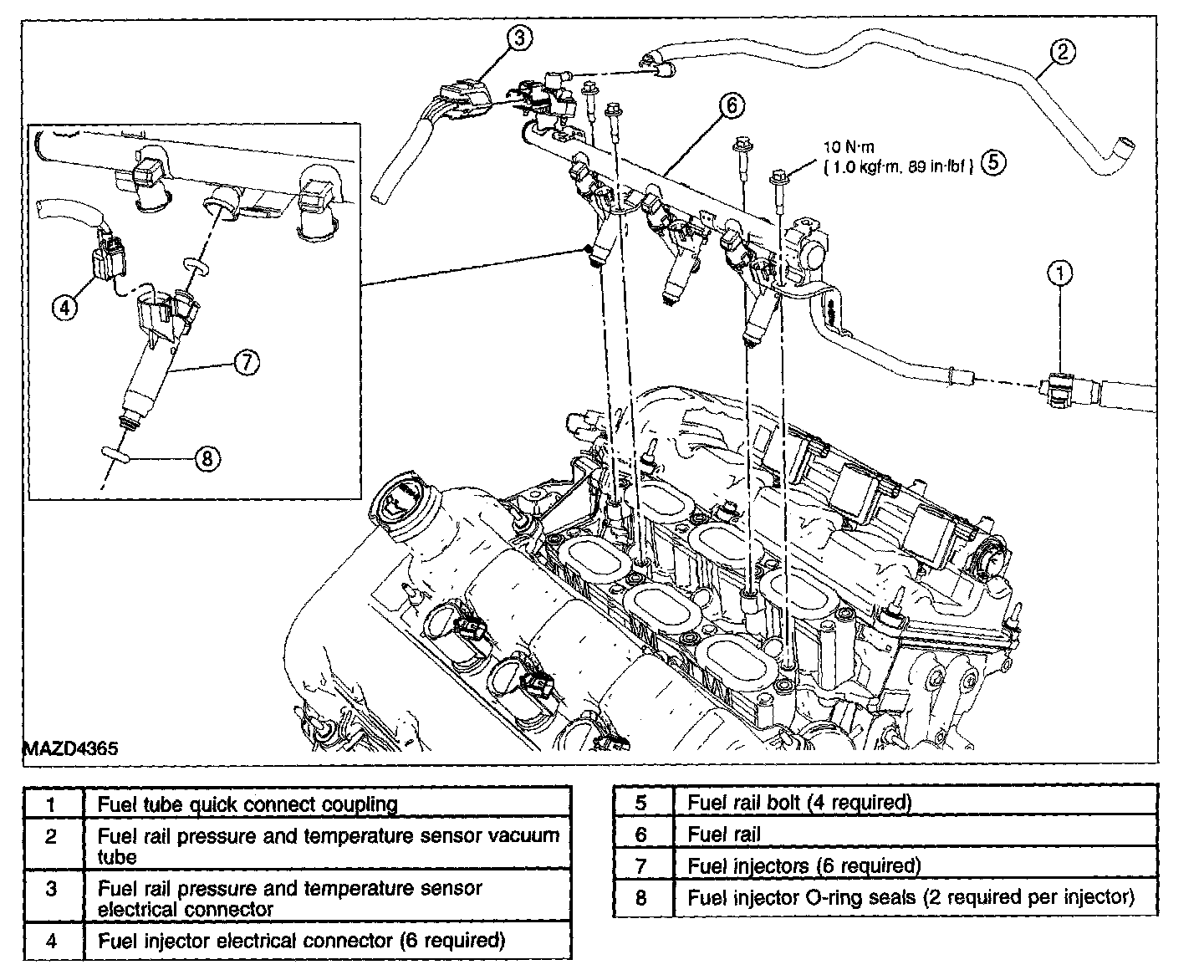

Fuel Rail And Fuel Injector-3.0L (4V) Exploded View:
1.
For addition information, see the procedure.
