Home
>>
Mazda
>>
2008
>>
Tribute 4WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Interior Moulding / Trim
Interior Moulding / Trim

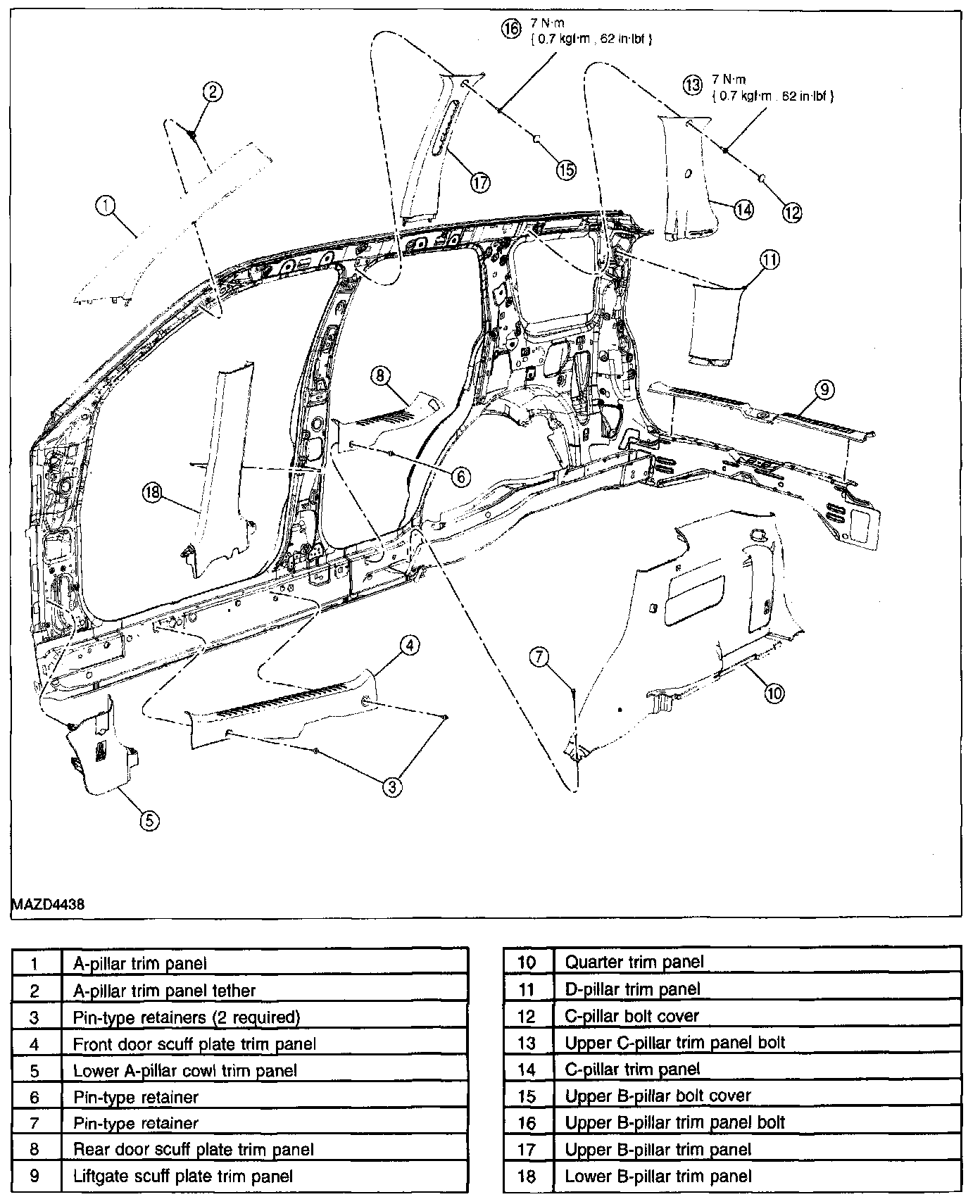

Interior Trim Panels:

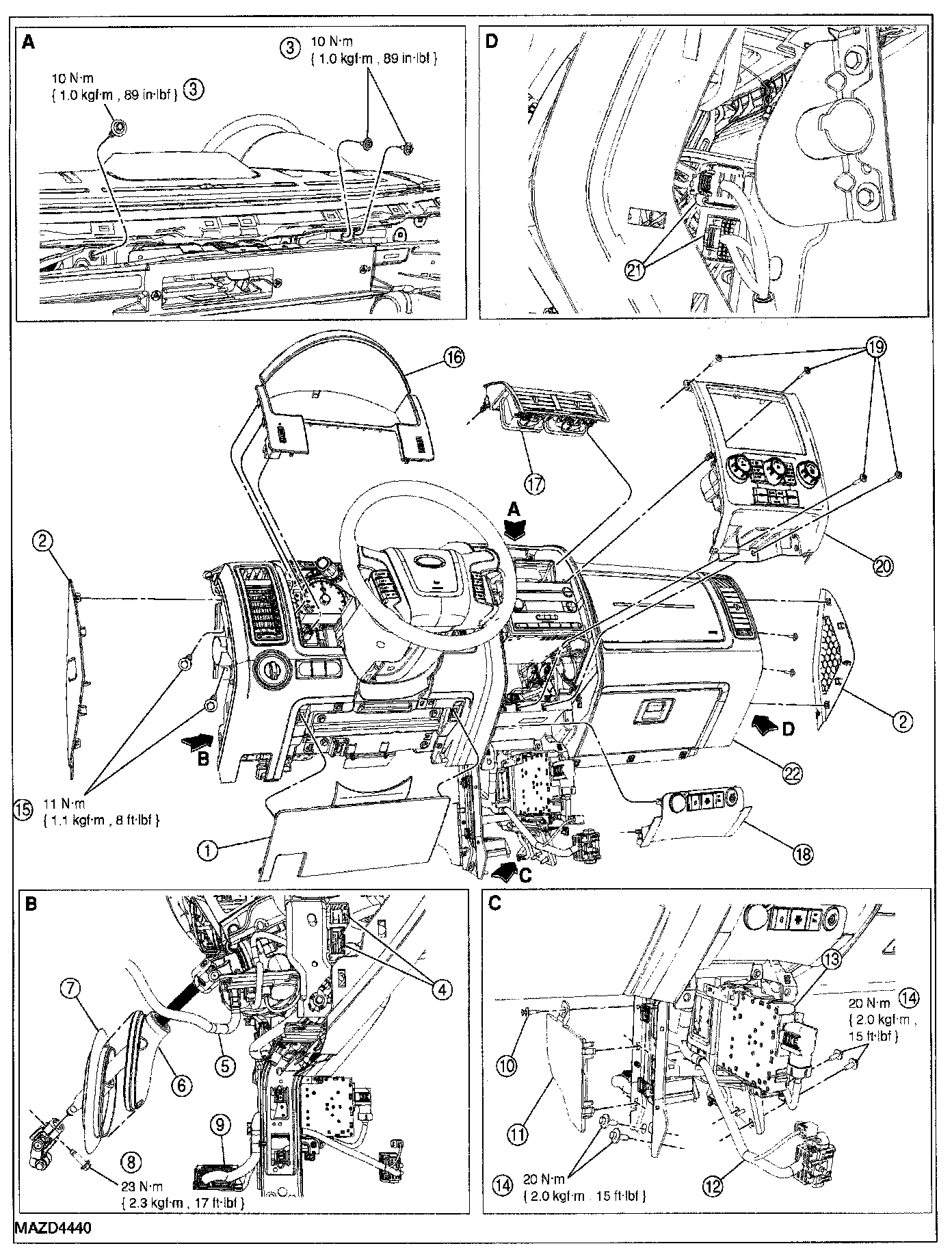

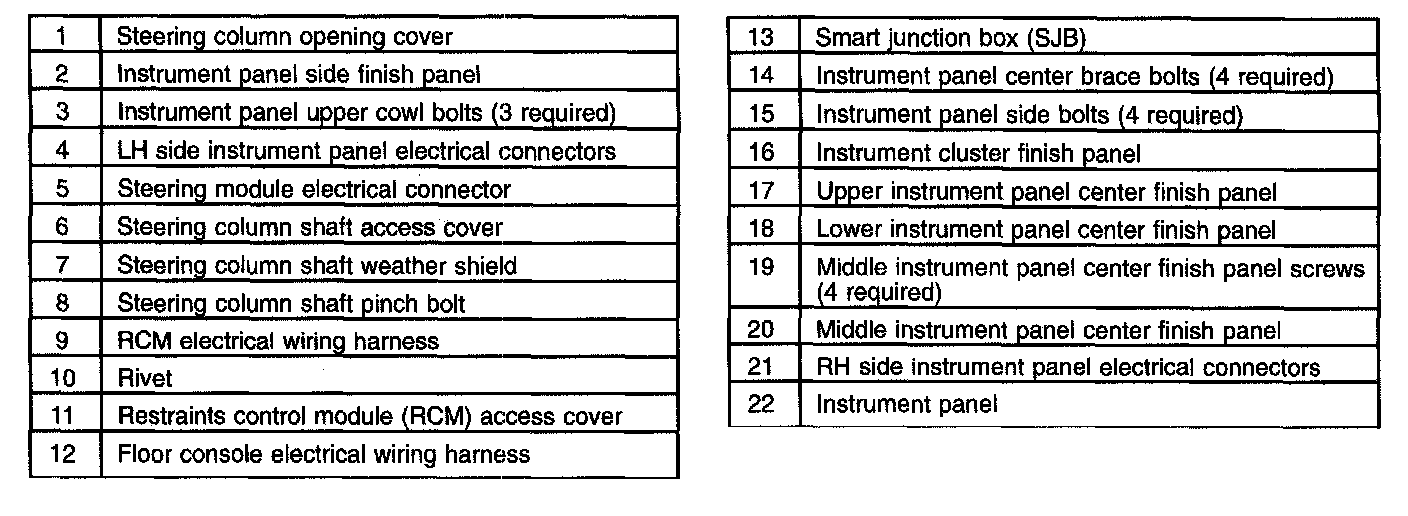

Instrument Panel:
Instrument Panel:
