ENGINE - 3.0L (4V) DISASSEMBLYDisassembly
All Vehicles
Caution
^ During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.

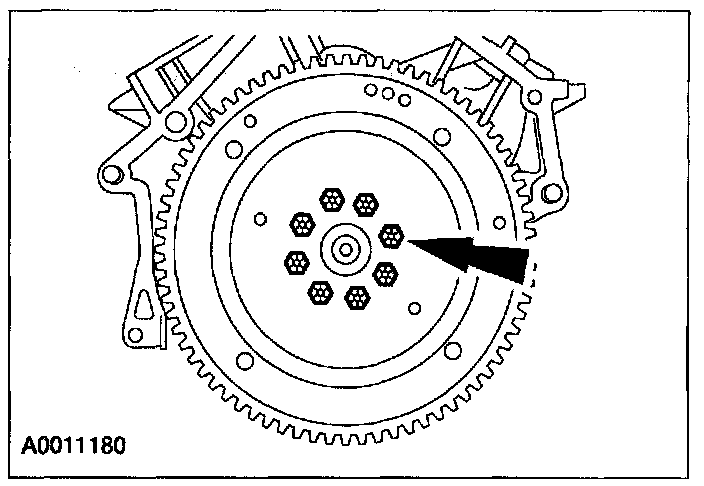

1. Remove the bolts and the flexplate.
2. Remove the engine-to-transaxle separator plate.

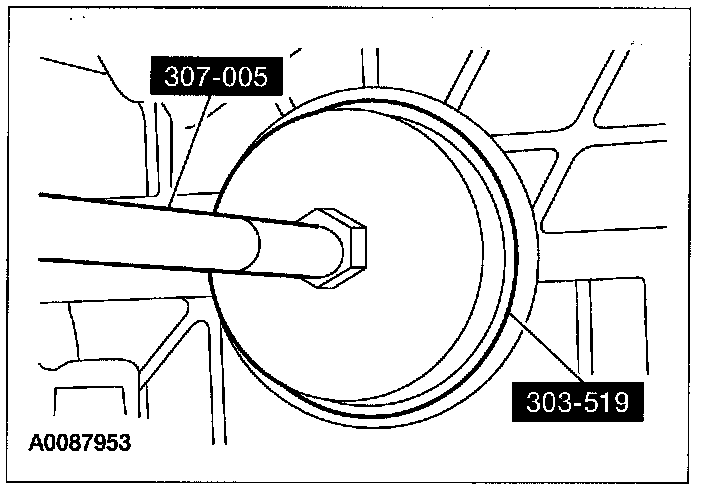

3. Using the special tools, remove and discard the crankshaft rear oil seal.
4. Mount the engine on a suitable stand.

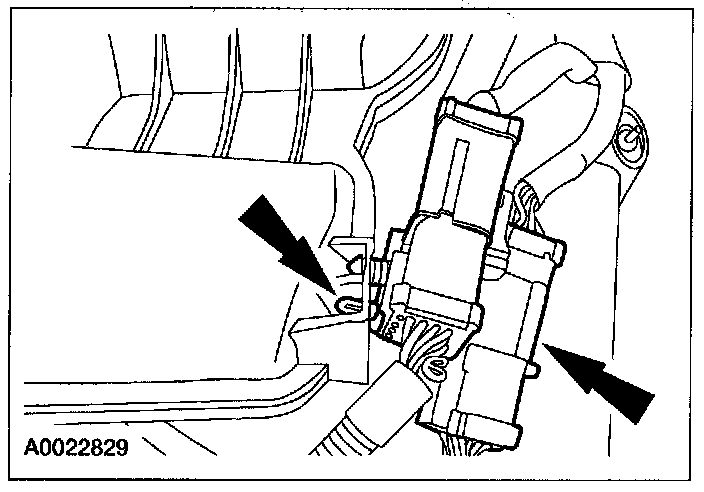

5. Detach the wiring harness connectors from the upper intake manifold.
6. Detach the wiring harness retainer, remove the nut and the catalyst monitor sensor electrical connector bracket.

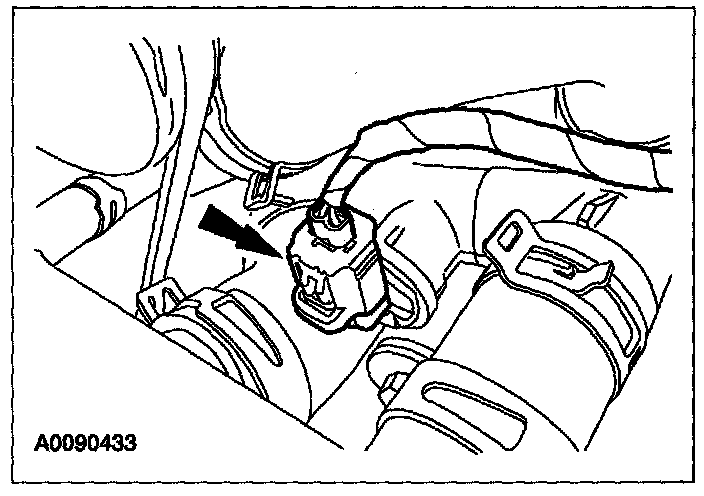

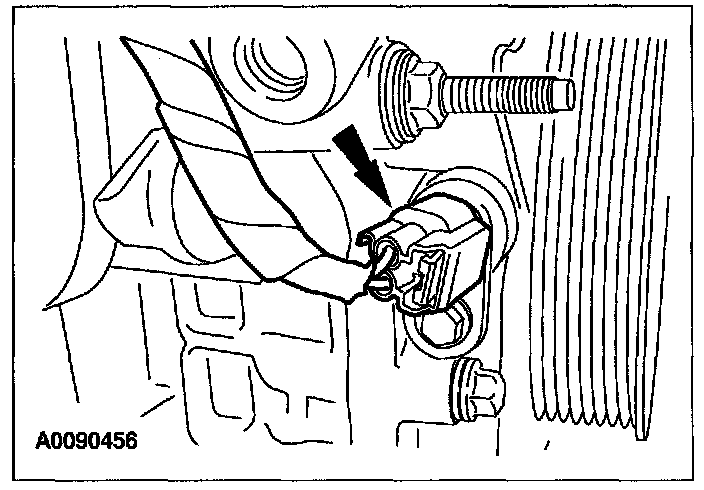

7. Disconnect the crankshaft position (CKP) sensor electrical connector and detach the wiring harness retainers.
8. Disconnect the exhaust gas recirculation (EGR) vacuum regulator electrical connector.

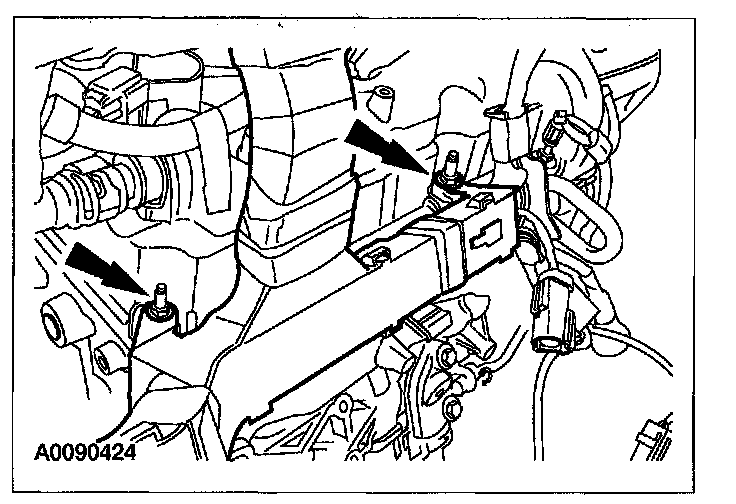

9. Remove the 2 wiring harness retainer nuts.

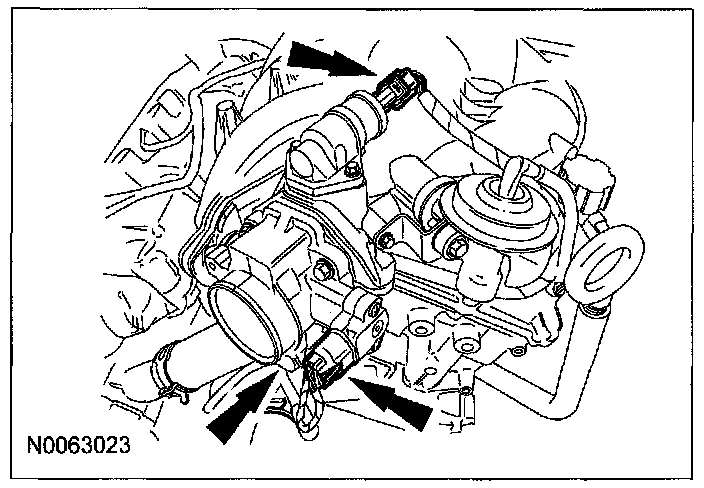

10. Disconnect the idle air control (IAC) valve and the throttle position (TP) sensor electrical connector.

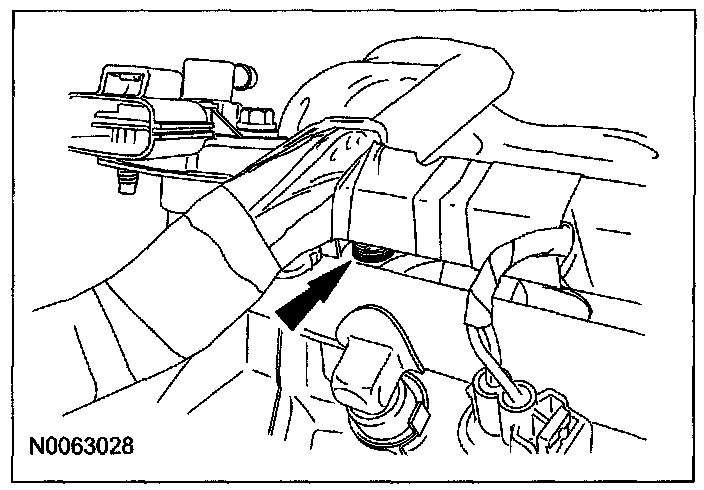

^ Detach the wiring harness retainer.

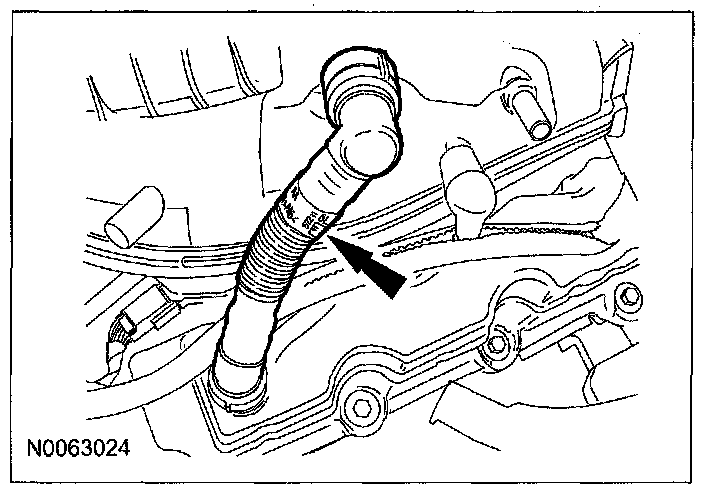

11. Remove the positive crankcase ventilation (PCV) tube.

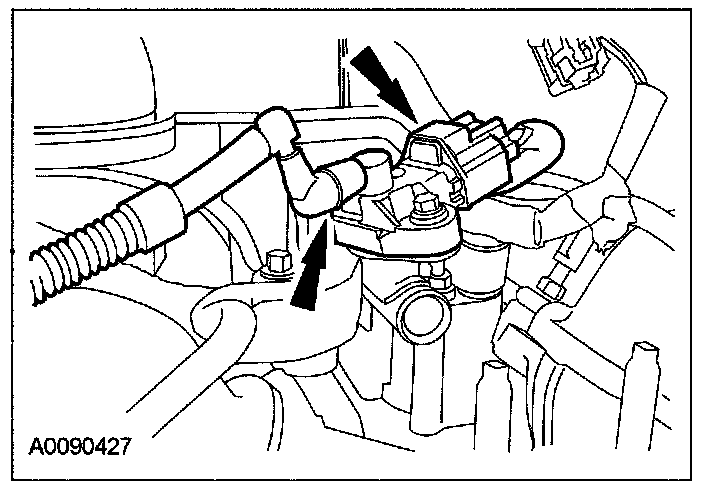

12. Disconnect the fuel rail pressure and temperature sensor electrical connector and vacuum tube.

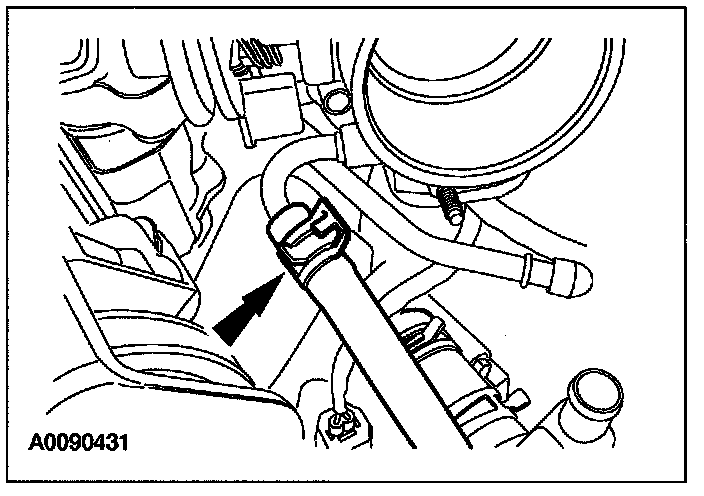

13. Disconnect the throttle body coolant hose.

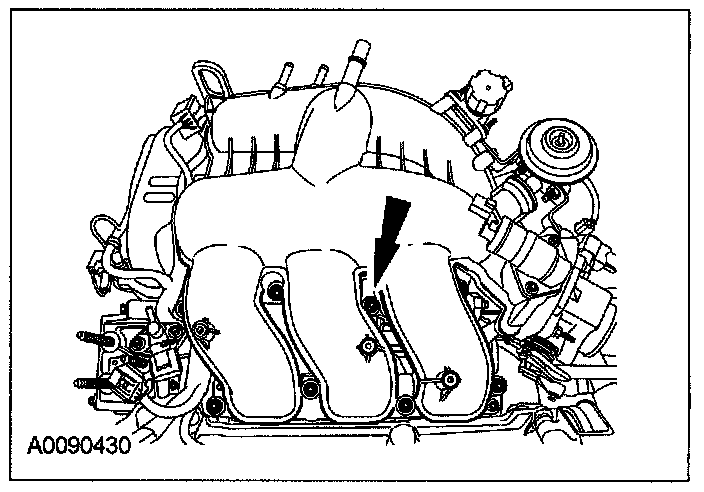

14. Remove the bolts and upper intake manifold.
^ Discard the gaskets.
15. Disconnect the engine coolant temperature (ECT) sensor electrical connector.

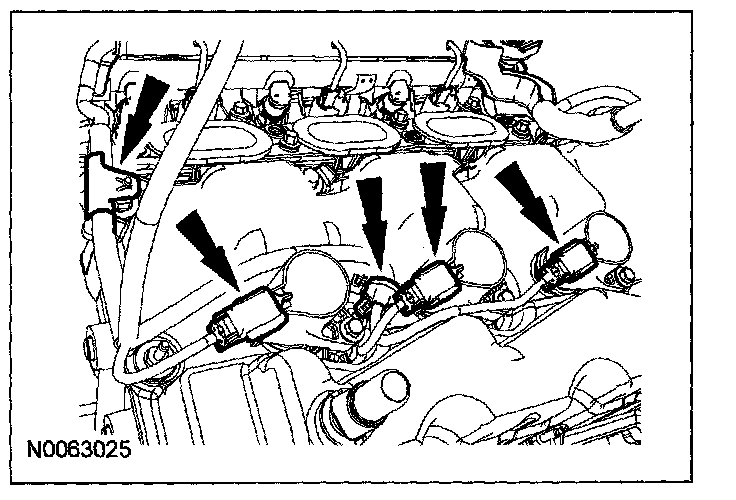

16. Disconnect the RH coil-on-plug electrical connectors.
^ Detach the 2 wiring harness retainers.
17. Disconnect the radio ignition interference capacitor electrical connector.
^ Detach the wiring harness retainers.
18. Disconnect the LH coil-on-plug electrical connectors.
^ Detach the wiring harness retainers.
19. Disconnect the camshaft position sensor (CMP) and engine oil pressure (EOP) switch electrical connectors.
^ Detach the wiring harness retainers.

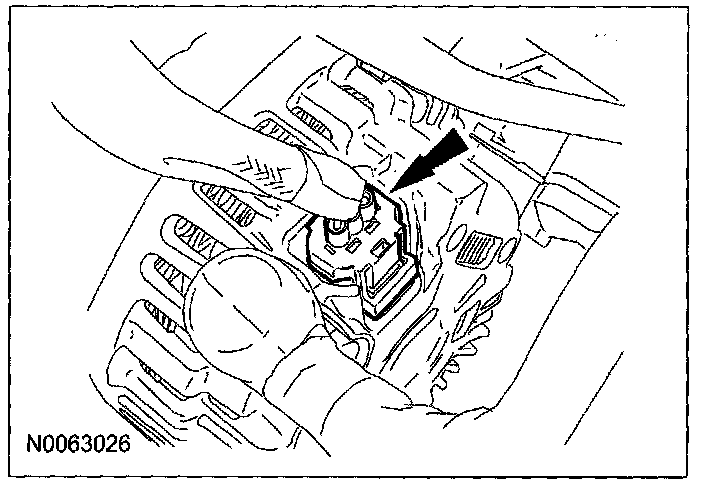

20. Disconnect the generator electrical connector.

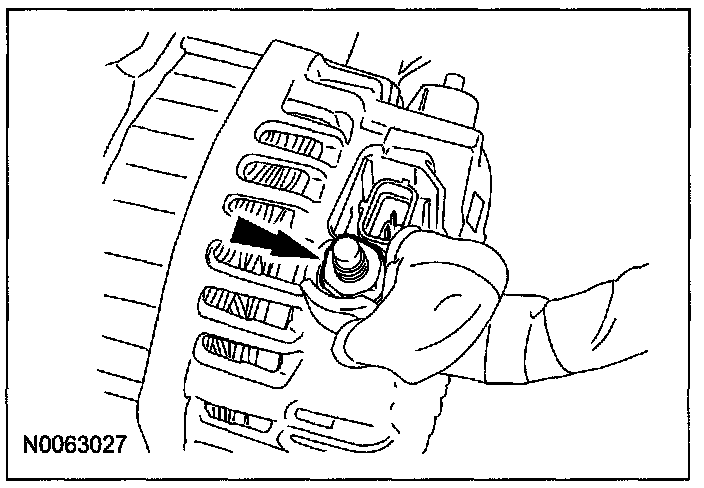

21. Remove the nut and the B+ wire from the generator.

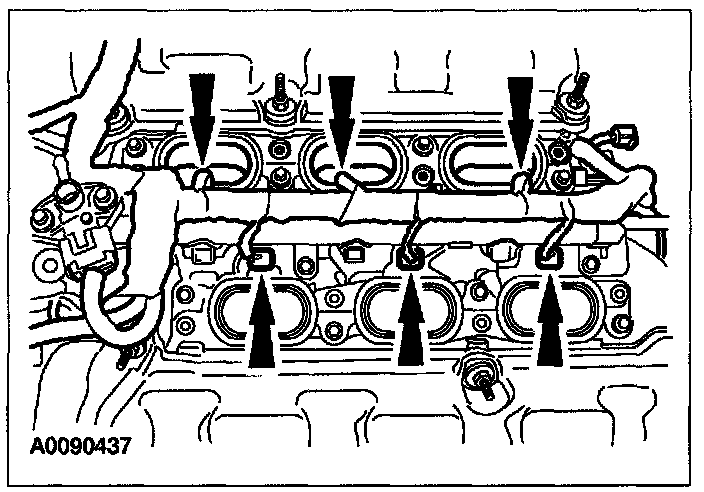

22. Disconnect the 6 fuel injector electrical connectors.

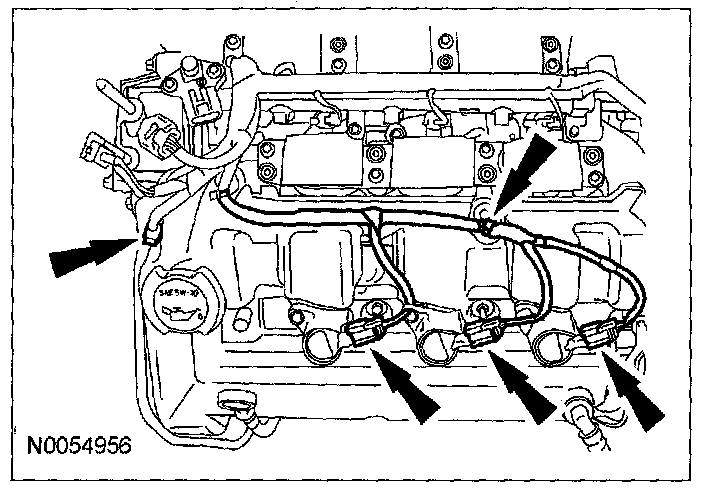

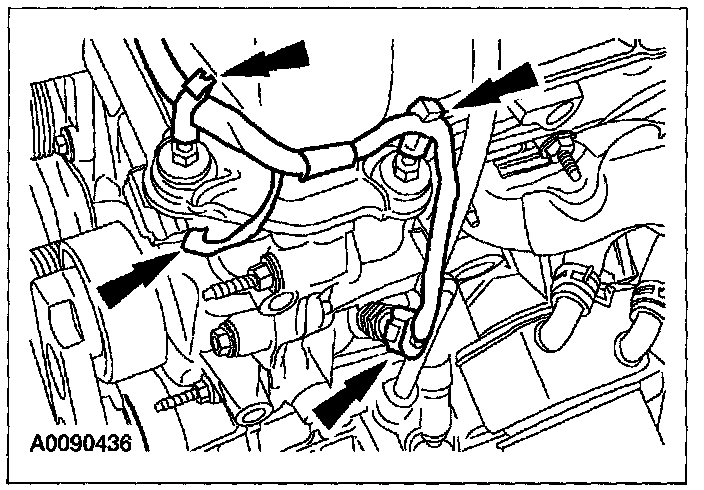

23. Detach the 2 wiring harness retainers (1 shown).
^ Remove the fuel charging wiring harness from the engine.

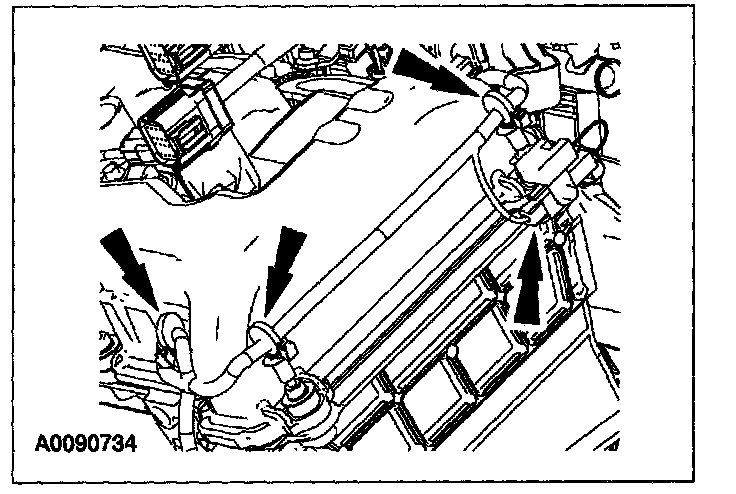

24. Remove the nut and detach the 4 wiring harness retainers.
^ Remove the B+ harness from the engine.

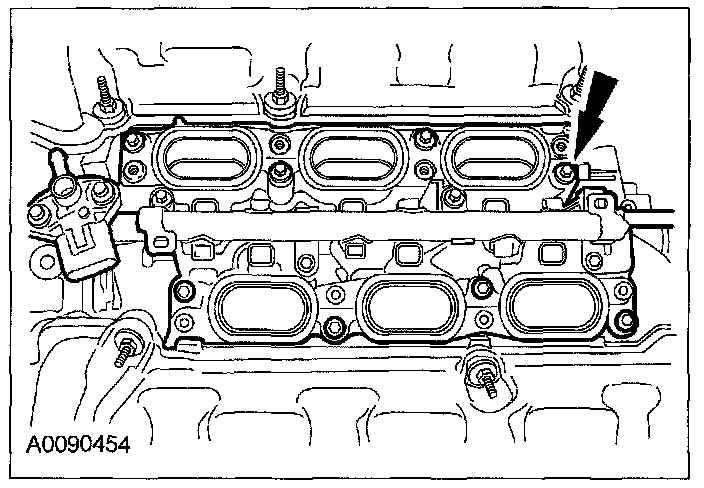

25. Remove the bolts and the lower intake manifold.
^ Discard the gasket.

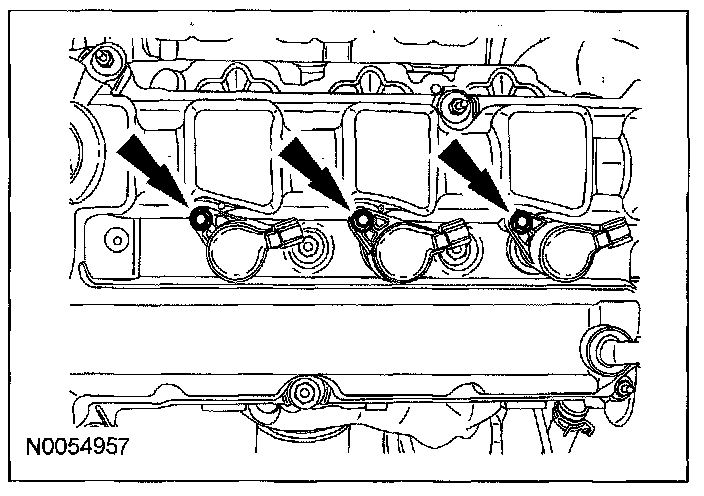

26. Remove the bolts and the 6 coil-on-plugs.
Note
^ When removing the coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Note
^ LH shown, RH similar.
Front Wheel Drive (FWD) Vehicles
27. Disconnect the RH heated oxygen sensor (HO2S) electrical connector.
28. Remove the 6 nuts, the RH exhaust manifold and the gasket.
^ Discard the gasket and nuts.

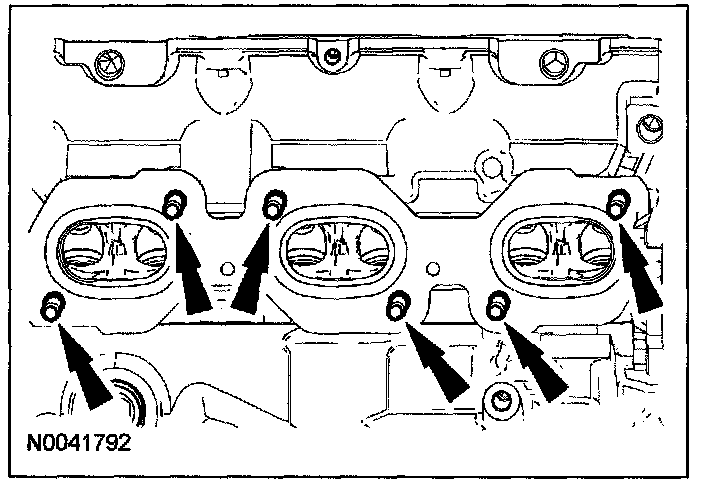

29. Remove and discard the 6 RH exhaust manifold studs.

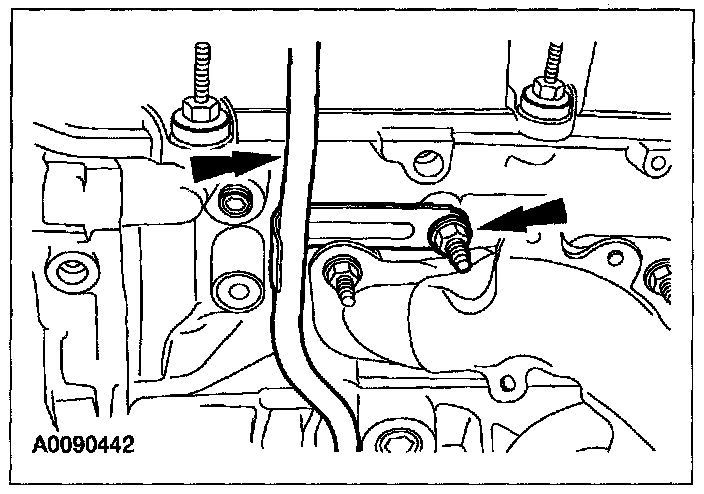

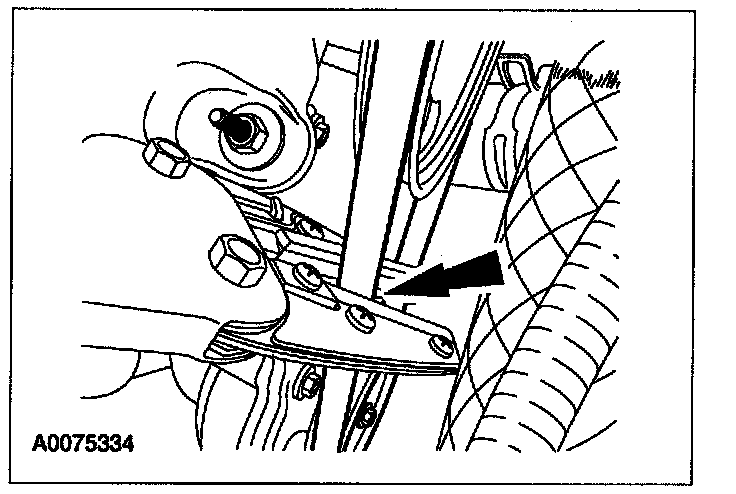

30. Remove the bolts and the halfshaft support bracket.
All Vehicles

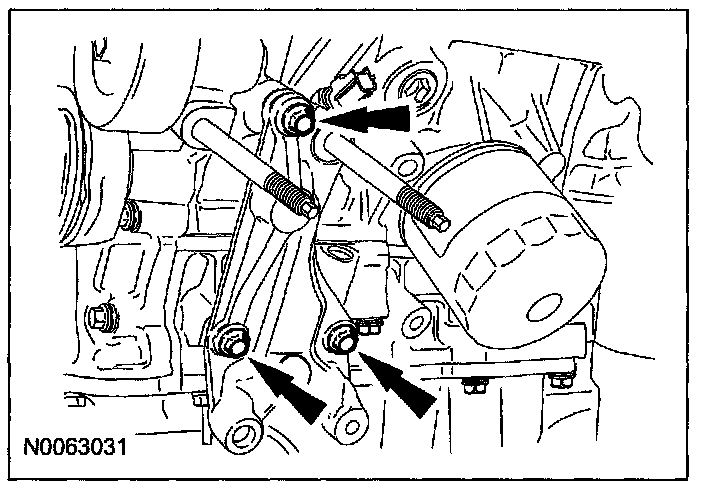

31. Remove the 3 bolts, 2 nuts and the generator.
32. Remove the 3 bolts and the A/C compressor bracket.

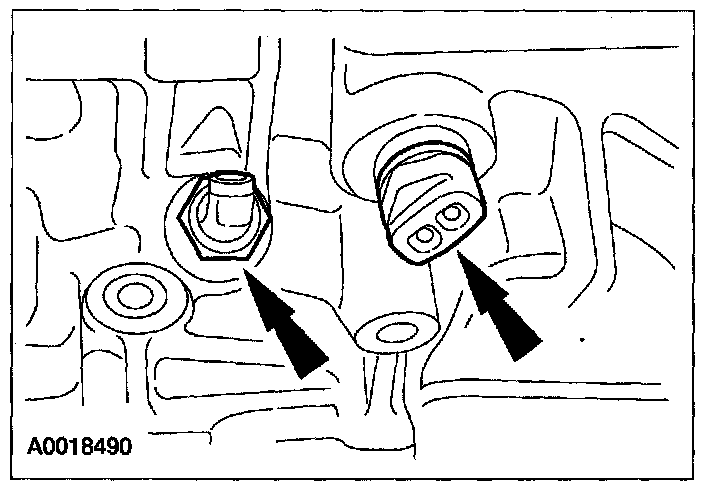

33. Remove the EOP switch and, if equipped, the block heater.
34. Remove the stud bolt and the oil level indicator and tube.
^ Remove and discard the O-ring seal.
35. Using the special tool, remove the HO2S.
Note
^ If necessary, lubricate the sensor threads with penetrating and lock lubricant to assist in removal.
36. Remove the nuts, the LH exhaust manifold and the gasket.
^ Discard the gasket and nuts.

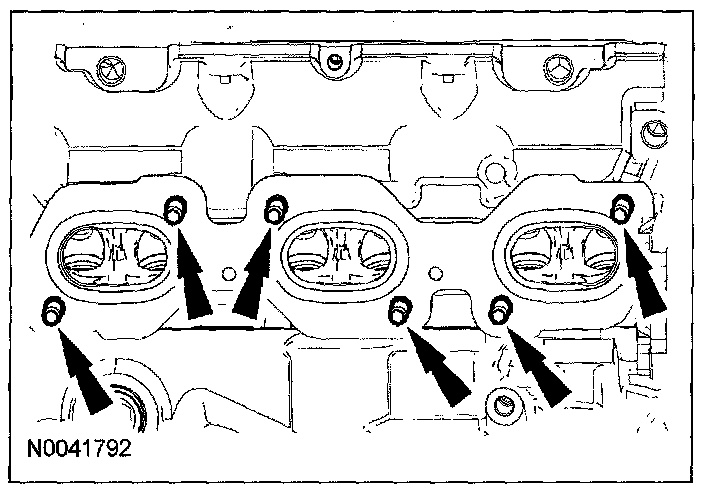

37. Remove and discard the 6 LH exhaust manifold studs.
38. Remove and discard the oil filter.
39. Cut and discard the coolant pump belt.

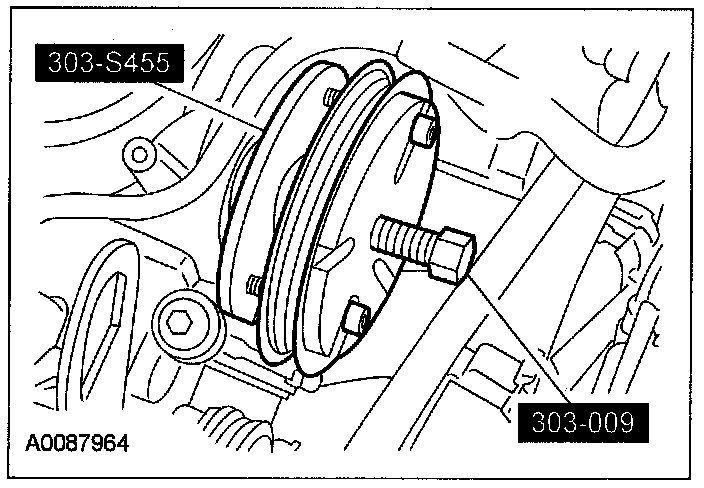

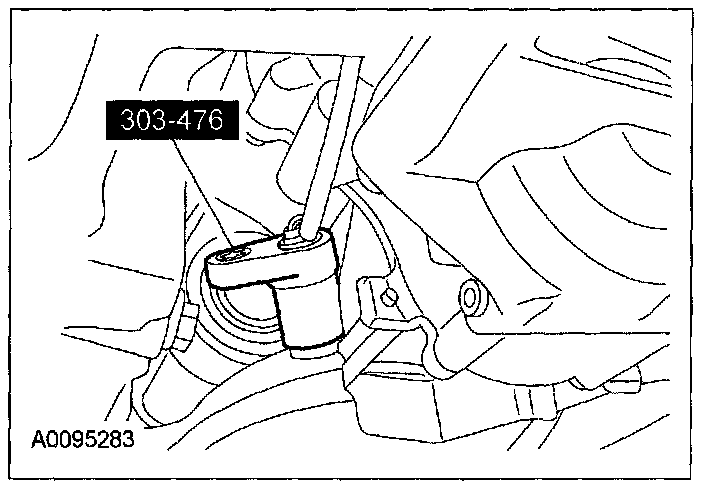

40. Using the special tools, remove the coolant pump drive pulley and discard.
Note
^ The original equipment manufacturer (OEM) pulley is pressed on 4.74 mm (0.18 in) past flush of the end of the camshaft. The service pulley is pressed on flush to the end of the camshaft.
