Exhaust Gas Recirculation: Diagrams

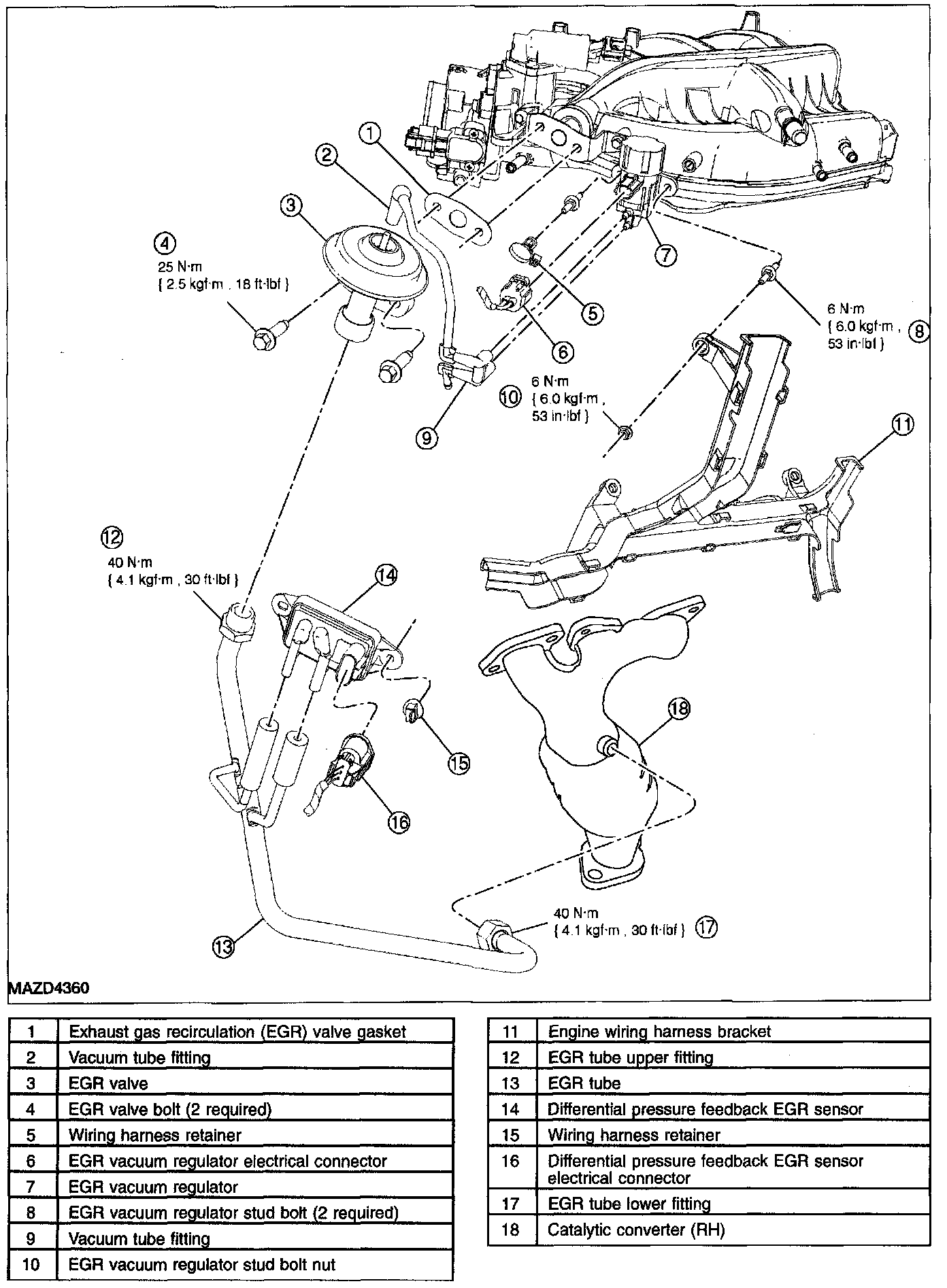

Exhaust Gas Recirculation (EGR) System - 3.0L (4V) Exploded View
Exhaust Gas Recirculation (EGR) System - 3.0L (4V) Exploded View:
1.
For additional information, see the procedures.
