Engine
>>
Oil Pan, Engine
Oil Pan, Engine
Oil Pan

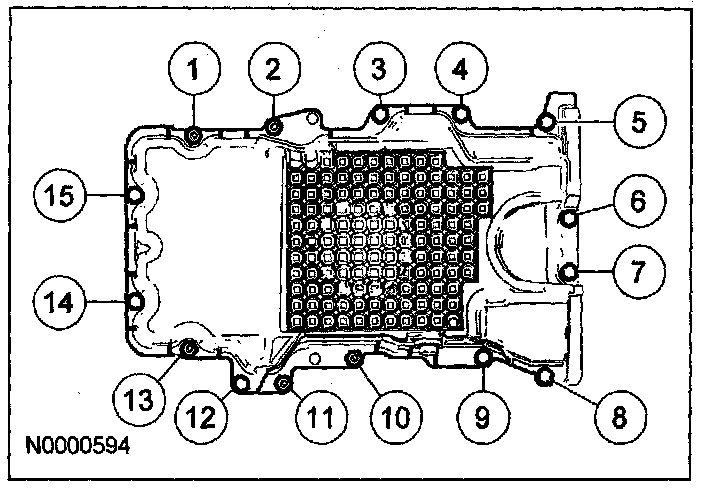

Tighten the
oil pan
bolts in the sequence shown to 25 N-m (2.5 kgf-m, 18 ft-lb).
