System Specifications

LH Timing Chain Tensioner
Install the bolts.
Tighten to 25 N-m (2.5 kgf-m, 18 ft-lbf).
RH Timing Chain Tensioner
Tighten to 25 N-m (2.5 kgf-m, 18 ft-lbf).

Crankshaft Pulley bolt

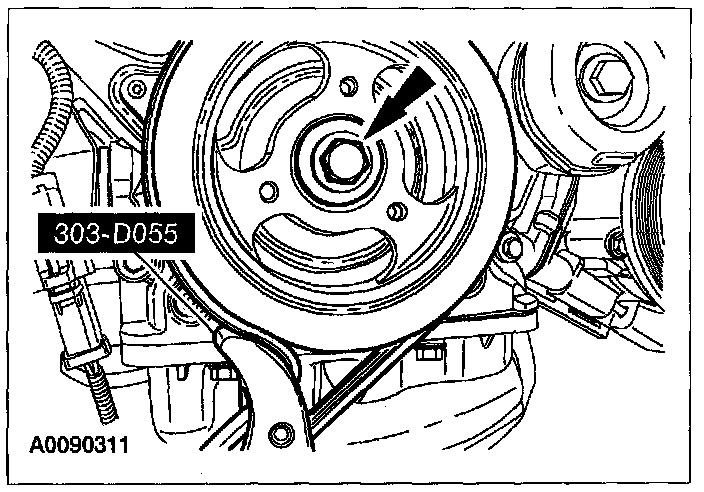

Install the bolt and washer. Using the special tool to hold the crankshaft pulley, tighten the bolt in 4 stages:
^ Stage 1: Tighten the bolt to 120 N-m (12.2 kgf-m, 89 ft-lbf).
^ Stage 2: Loosen the bolt one full turn.
^ Stage 3: Tighten the bolt to 50 N-m (5.1 kgf-m, 37 ft-lbf).
^ Stage 4: Tighten the bolt an additional 90 degrees.

Front Cover





Install the bolts and stud bolts.

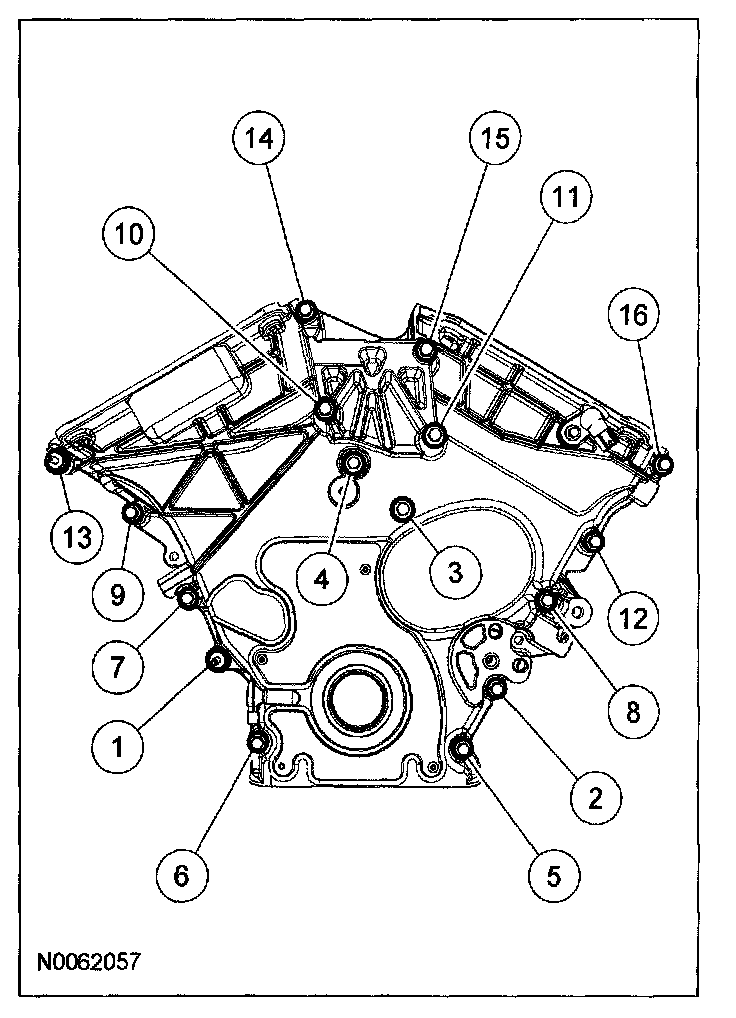

Tighten the bolts in the sequence to 25 N-m (2.5 kgf-m, 18 ft-lbf).

Note
^ Fasteners 1 and 13 are stud bolts.
