Connector End Views-Power Systems

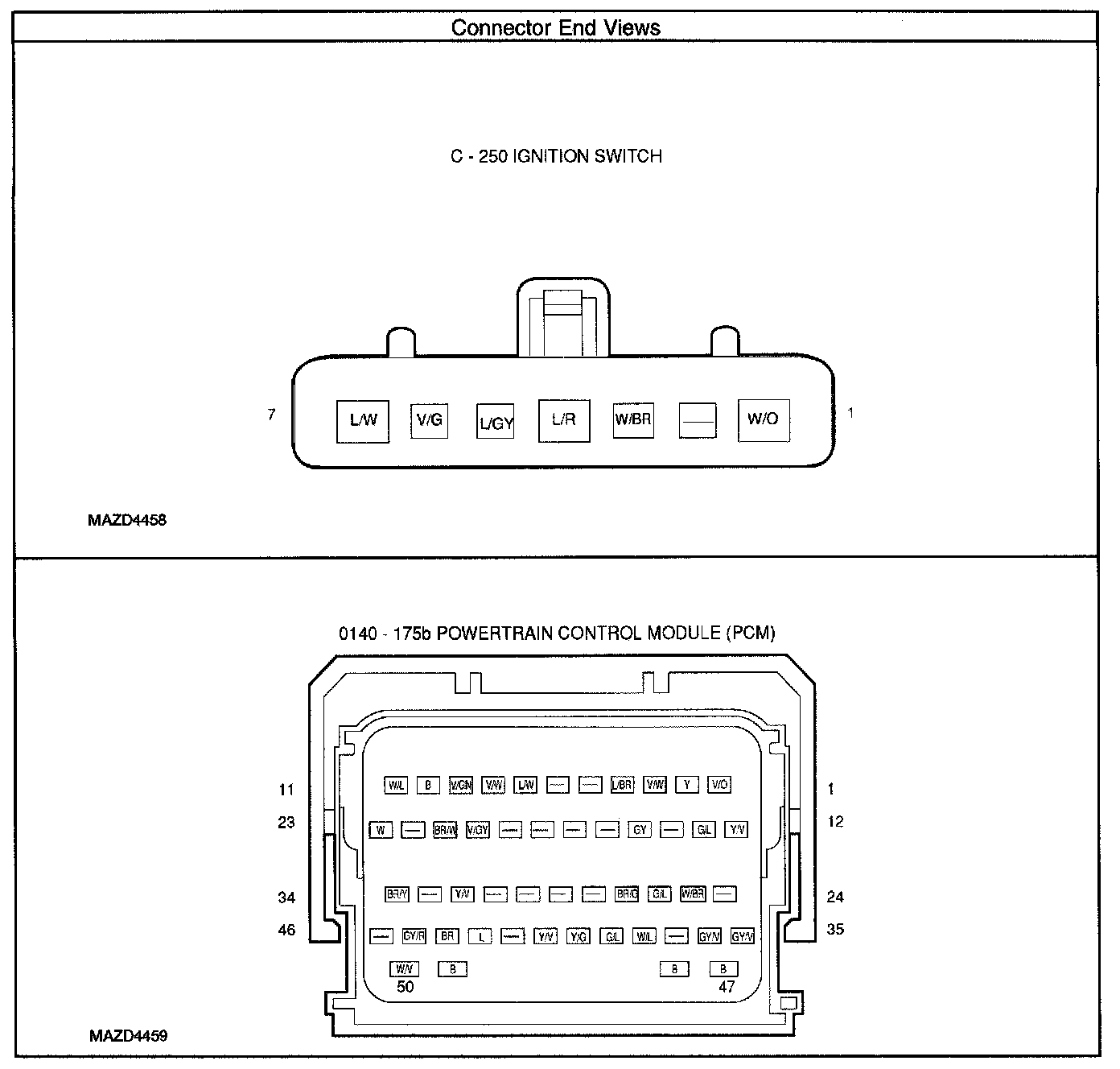

Connector End Views-Power Systems (Part 1):

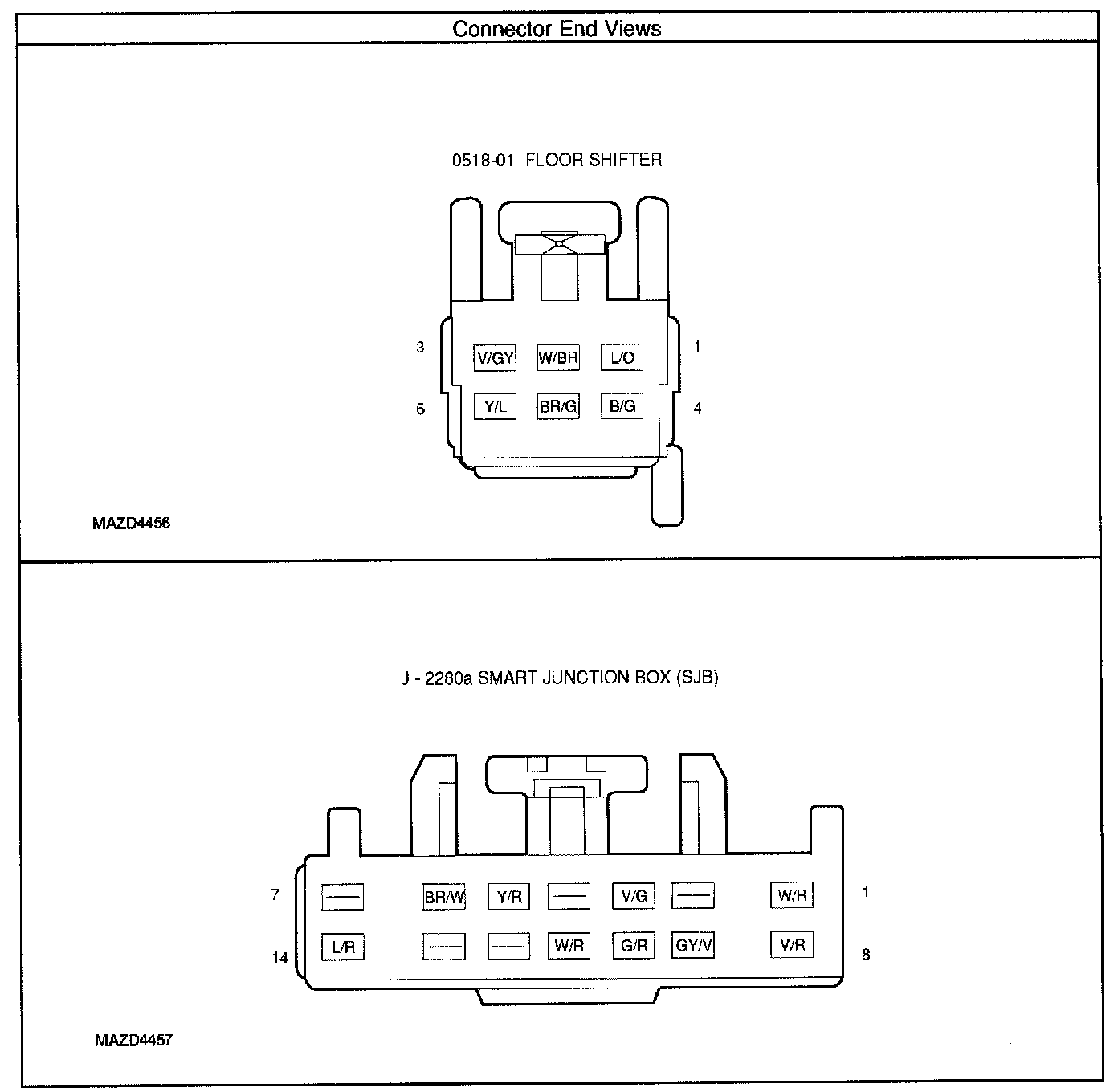

Connector End Views-Power Systems (Part 2):
