Connector End Views - Starting System
Connector End Views - Starting System

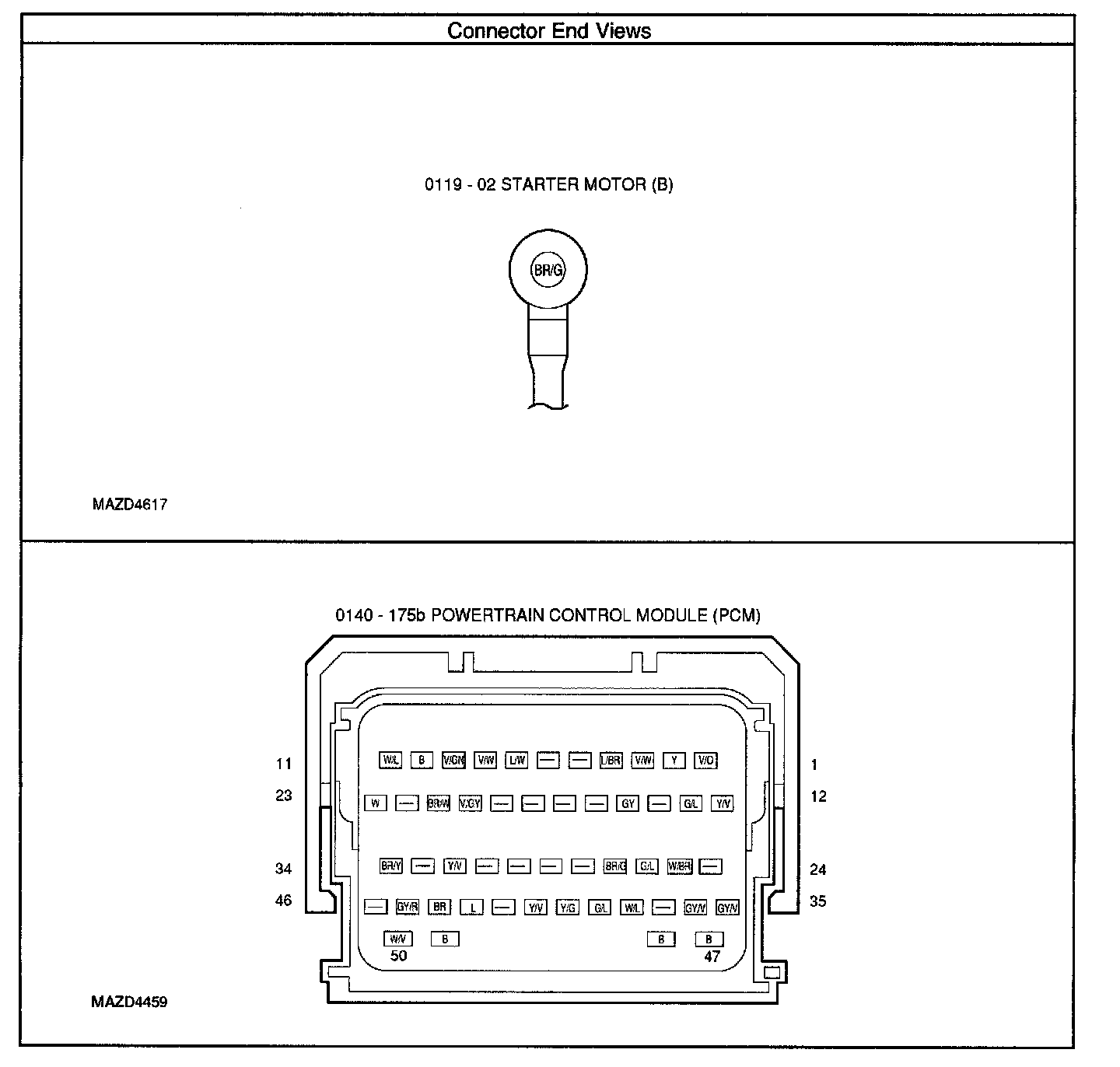

Connector End Views-Starting System (Part 1):

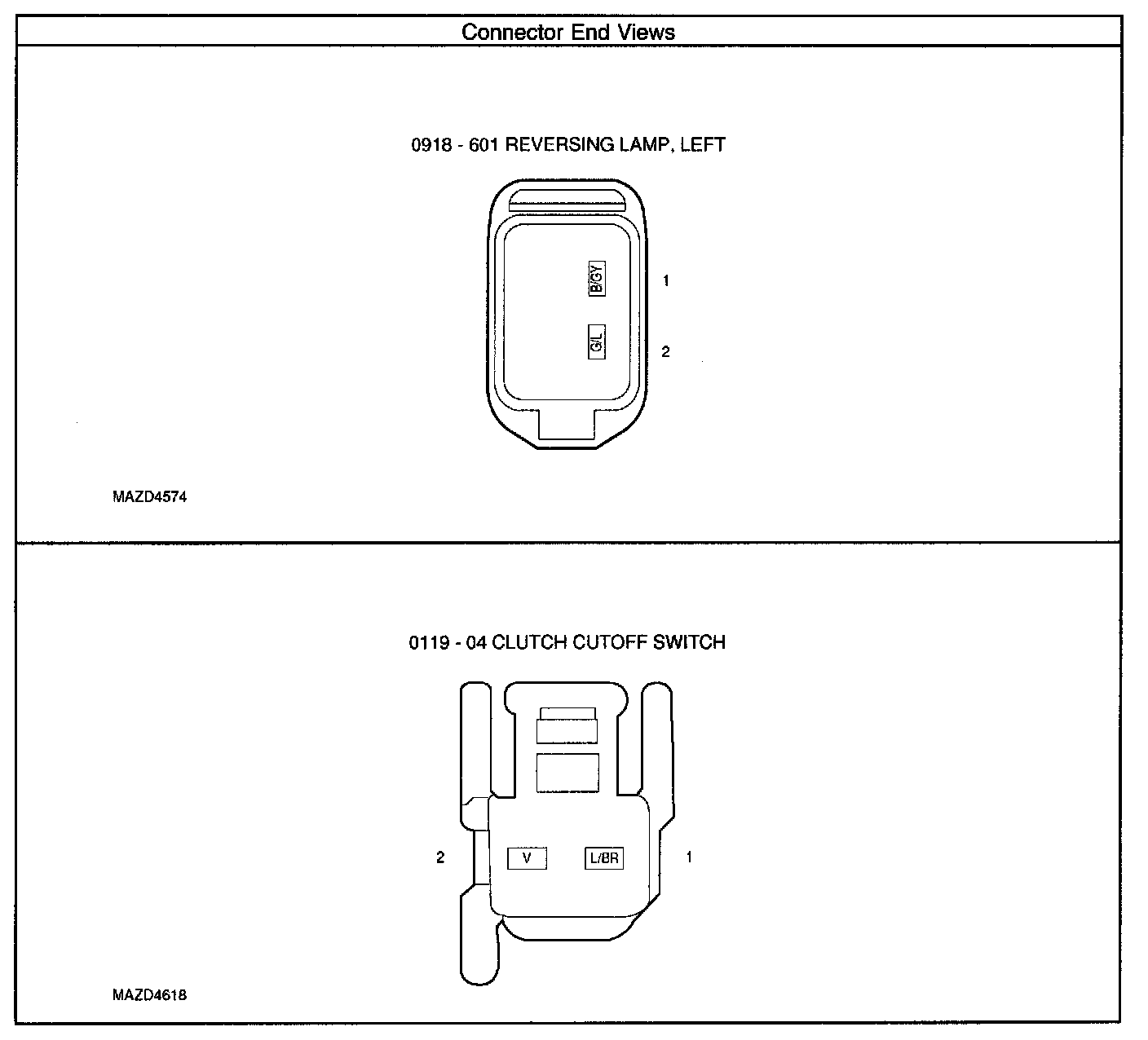

Connector End Views-Starting System (Part 2):

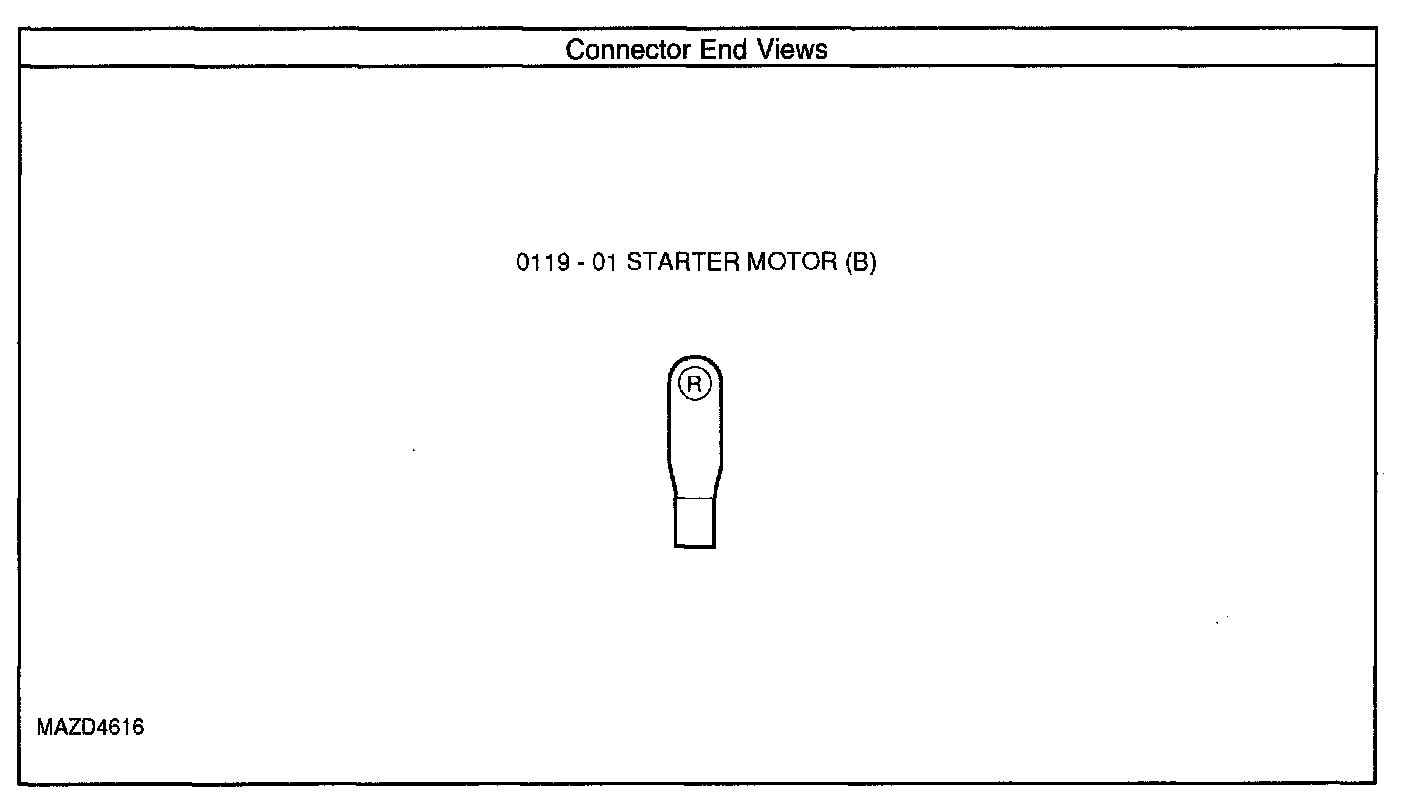

Connector End Views-Starting System (Part 3):
