Flex Plate: Locations
LOWER END COMPONENTS - 3.0L (4V) EXPLODED VIEW

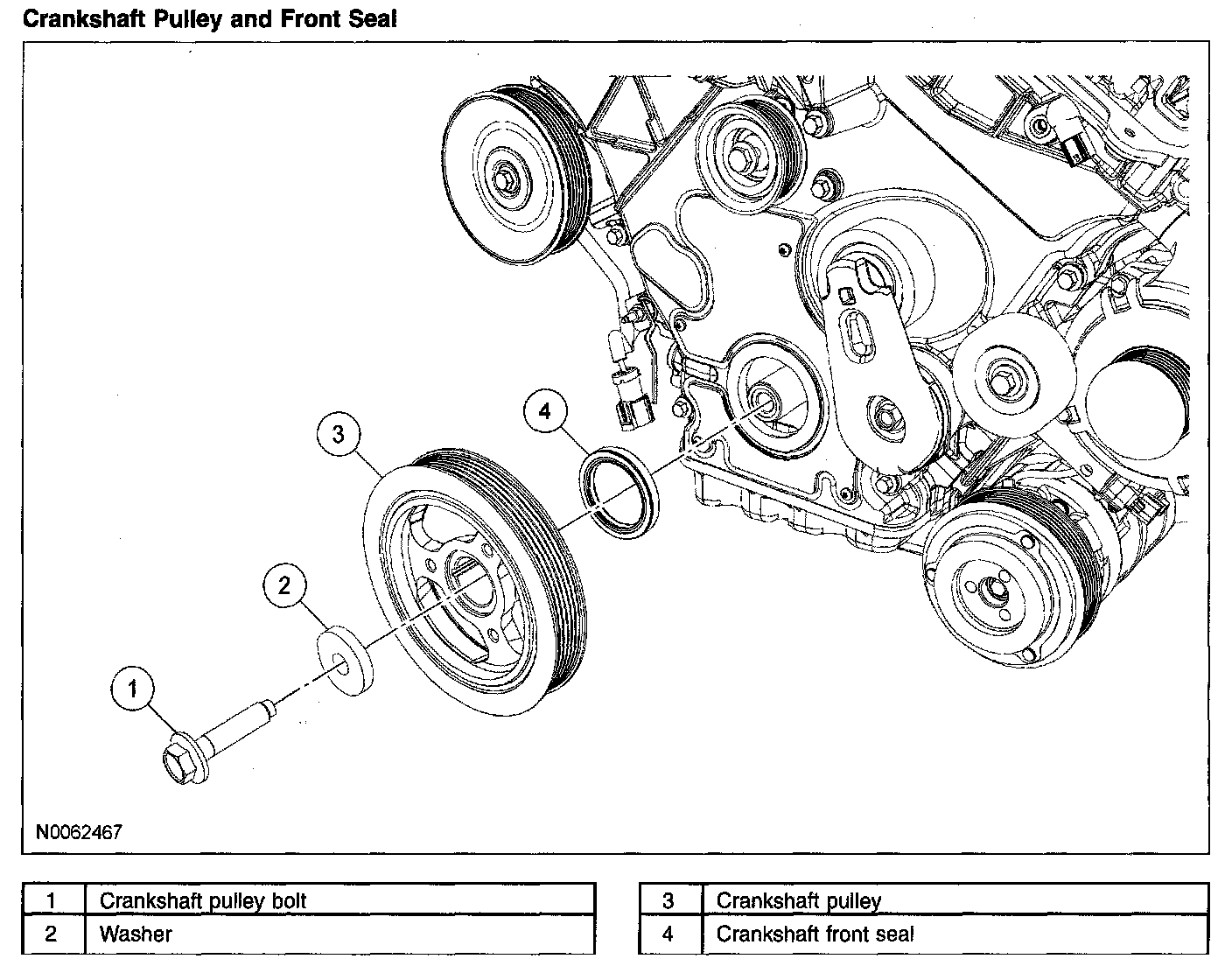

Crankshaft Pulley and Front Seal
Crankshaft Pulley and Front Seal:

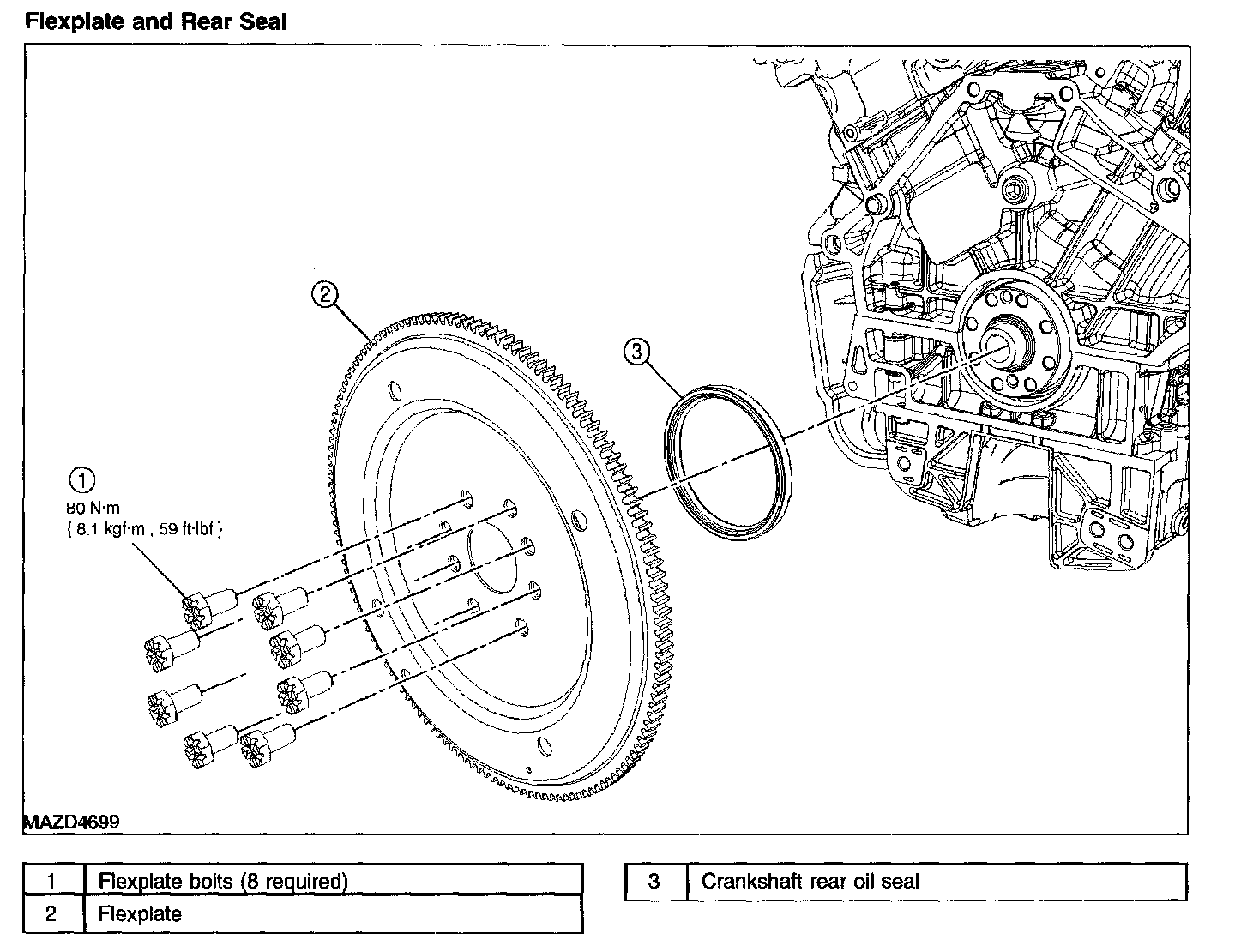

Flexplate and Rear Seal
Flexplate and Rear Seal:
