Auxiliary Input / Output Jack: Service and Repair

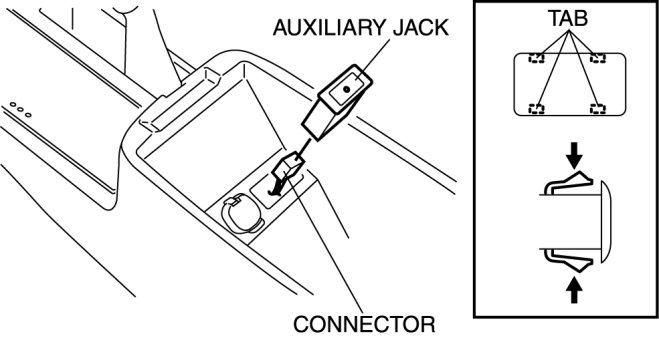

AUXILIARY JACK REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the console.
Removal and Replacement 3.
Disconnect the auxiliary jack connector.
4.
Squeeze the tabs of auxiliary jack and pull it outward to remove it.
5.
Install in the reverse order of removal.
