Initial Inspection and Diagnostic Overview

SELF-DIAGNOSTIC [CAR-NAVIGATION SYSTEM]

Starting Procedure For Diagnostic Function

1. Turn the ignition switch to the ACC or ON position.

2. Press the MENU button.

3. Select "Navigation Set Up".

4. Select "Calibration".

5. Select "Map Version".

6. Press the joystick up two times, then down two times.

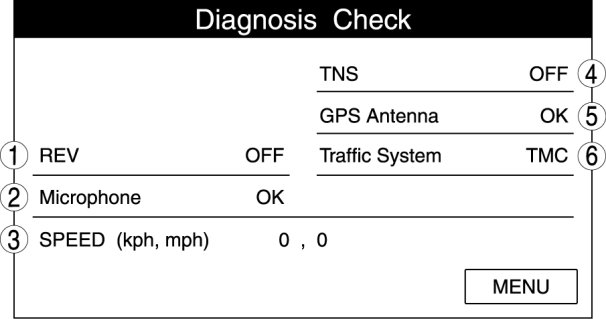

7. "Diagnosis Check" is displayed on the screen.

8. Select the "Diagnosis Check".










*
It is used for symptom troubleshooting. (Troubleshooting index No. 5 and No. 8)

Finishing Procedure For Diagnostic Function

1. Turn the ignition switch to the LOCK position.

2. Turn the ignition switch to the ACC or ON position.

3. Return to the normal screen.
