Front Brake (Disc) Removal/Installation

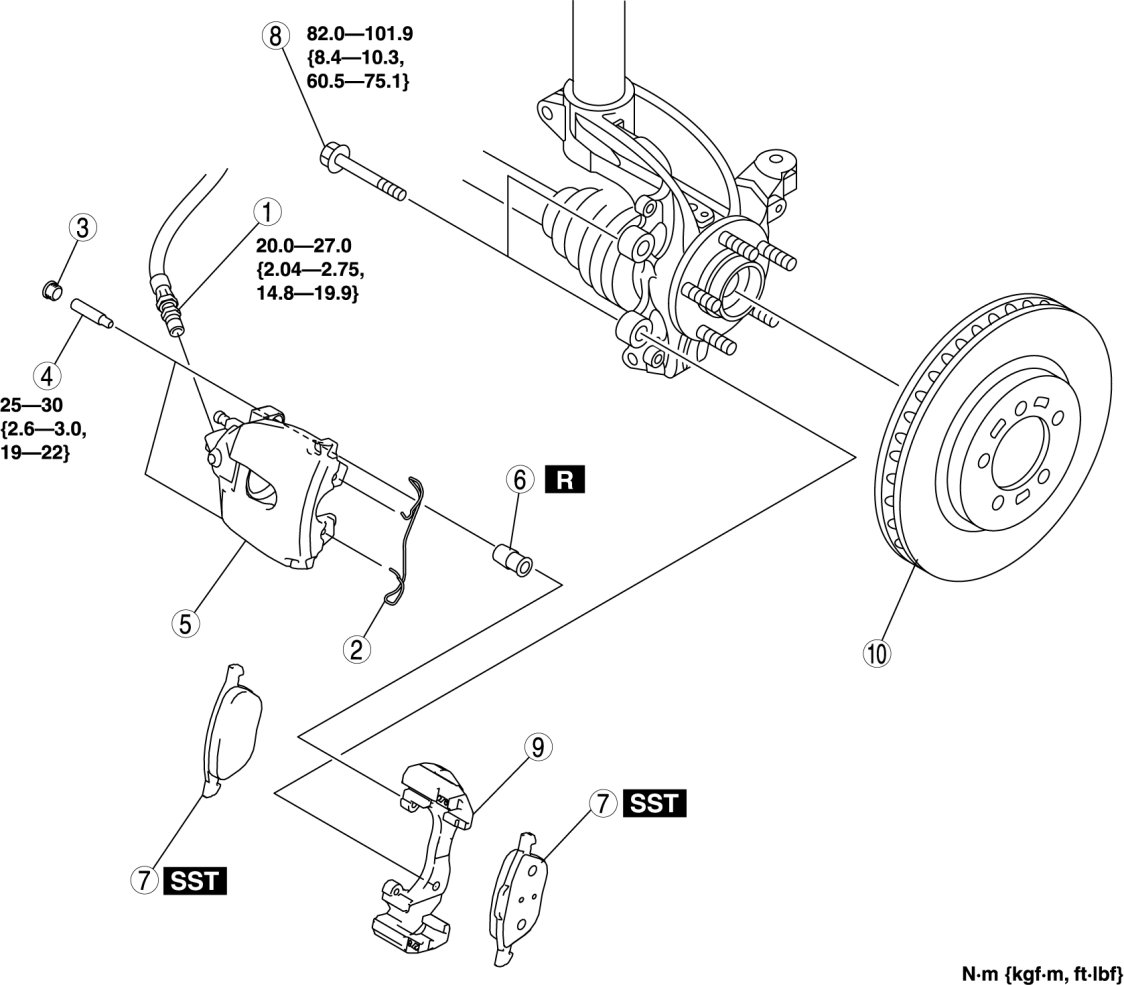

FRONT BRAKE (DISC) REMOVAL/INSTALLATION [LF, L3]

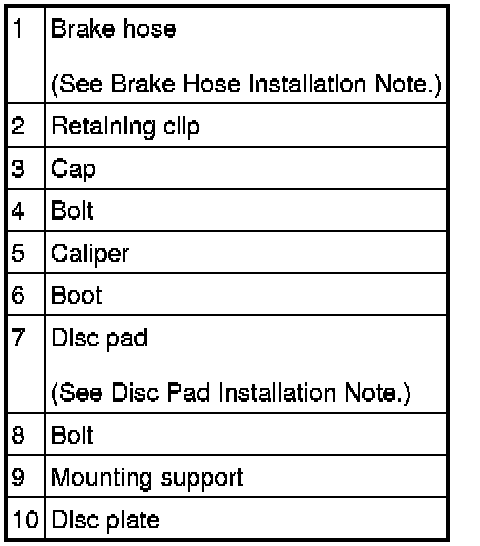

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. Service and Repair

4. After installation, pump the brake pedal a few times and verify that the brakes do not drag.










Disc Pad Installation Note

1. Clean the exposed area of the piston.

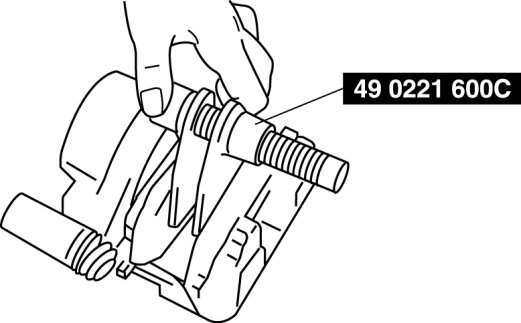

2. Push the piston in using the SST.






3. Install the disc pad (outer side) to the mounting support.

4. Install the disc pad (inner side) to the caliper.

Brake Hose Installation Note

1. Install the brake hose to the caliper.

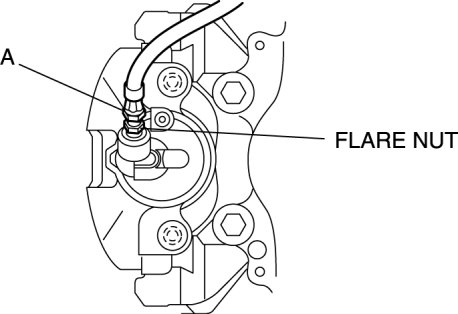

2. Tighten the flare nut while holding the brake hose at point A with a spanner or equivalent.






3. Verify that the brake hose is not twisted.
