Ambient Temperature Sensor / Switch HVAC: Testing and Inspection
AMBIENT TEMPERATURE SENSOR INSPECTION1. Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminal.
-

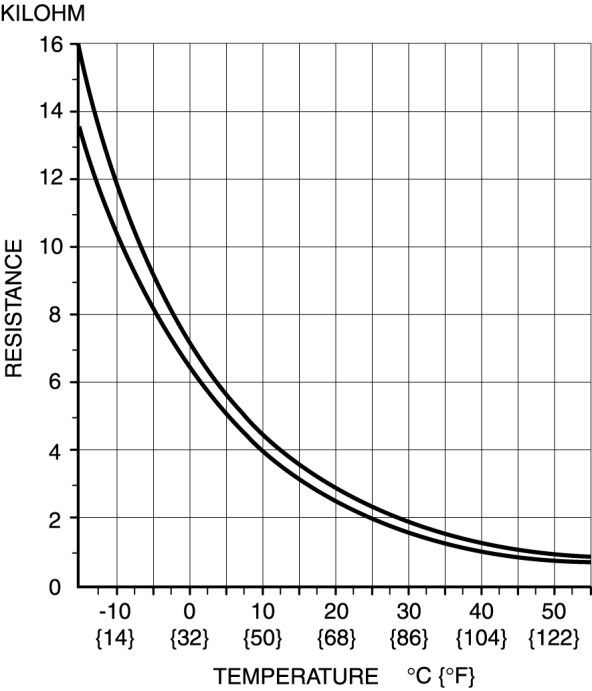

If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor.
