Cabin Air Filter / Purifier: Service and Repair

CABIN AIR FILTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the PJB and PJB bracket. Service and Repair

3. Remove the side wall. Side Wall Removal/Installation

4. Disconnect the evaporator temperature sensor connector.

5. Disconnect the power MOS FET connector. (Full-auto air conditioner)

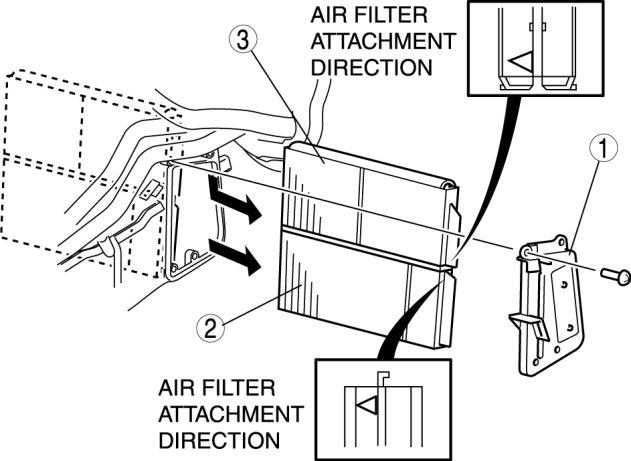

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.
